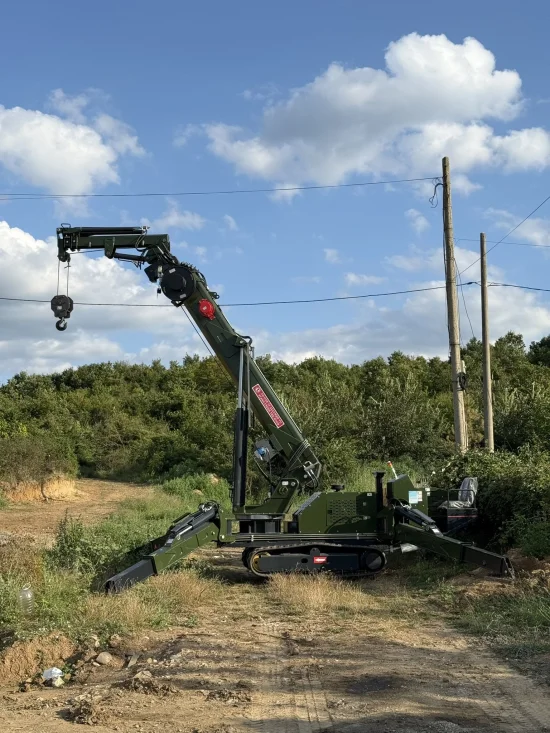

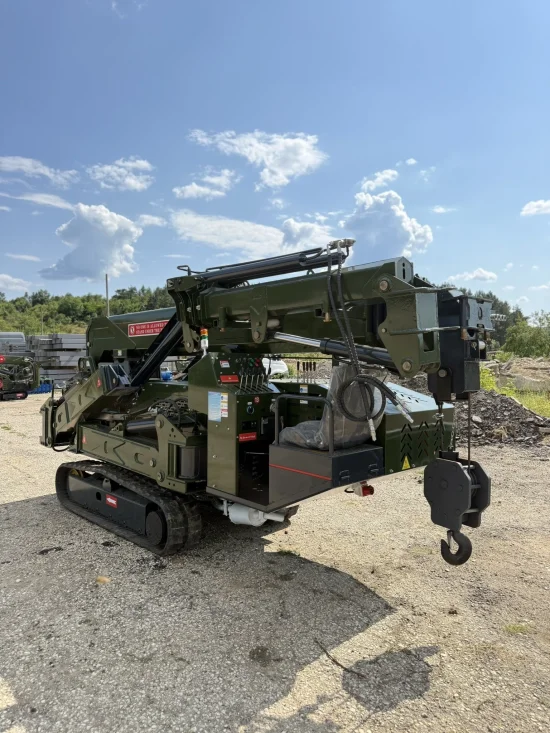

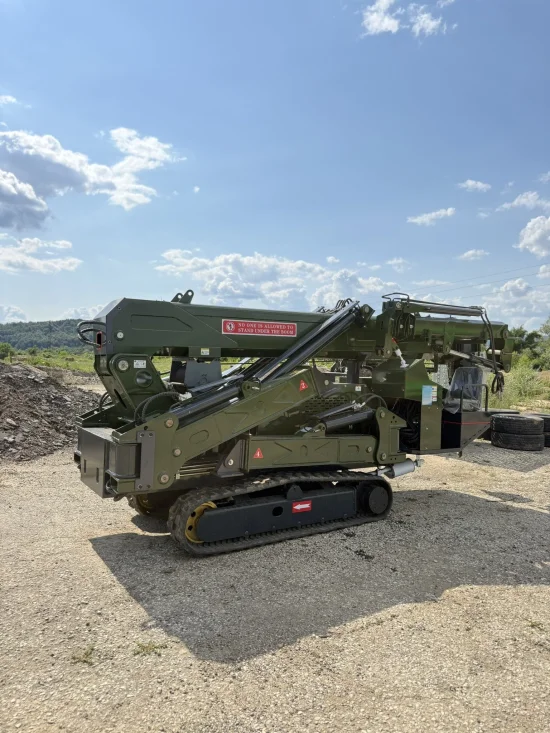

Müller SC5.0 Spider Crane

Professional Spider Crane with 5.0-Ton Lifting Capacity

The Müller SC5.0 is a high-performance spider crane designed for heavy lifting operations, glass façade installation, steel structures, industrial equipment handling, and construction projects requiring a large working range and high lifting capacity.

With a maximum lifting capacity of 5.0 tons, a lifting height of up to 16.8 m (20.5 m with the optional Fly Jib), and a working radius of up to 16 m (19.7 m with the optional Fly Jib), the SC5.0 delivers performance comparable to much larger cranes while maintaining the compact dimensions and maneuverability that characterize spider cranes.

Included in the Price

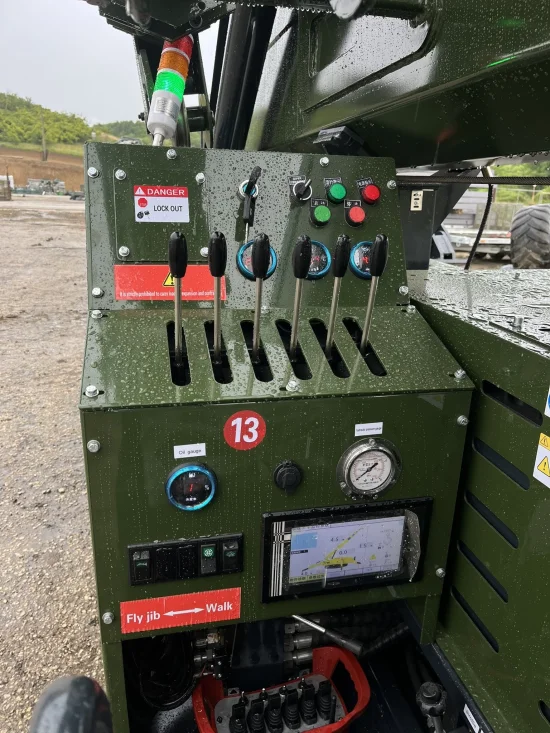

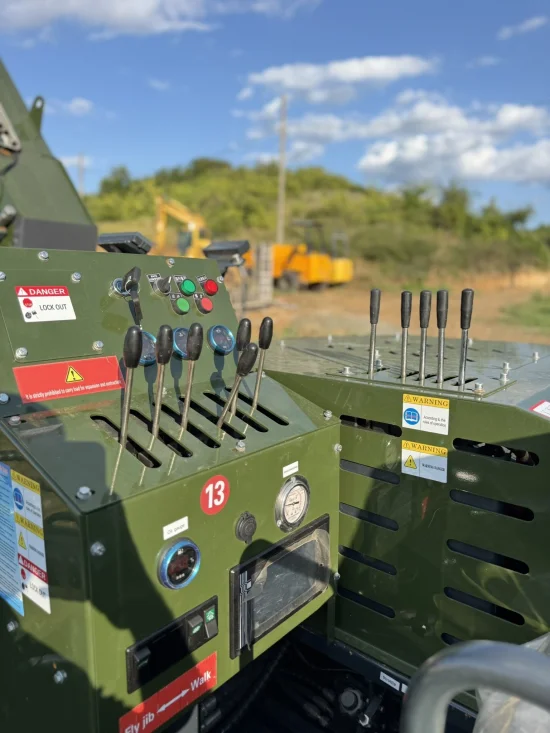

• Mechanical hydraulic controls mounted directly on the crane

Optional Equipment

• Proportional Load-Sensing hydraulic system with automatic flow adjustment according to load and proportional wireless remote control – €3,500 excl. VAT

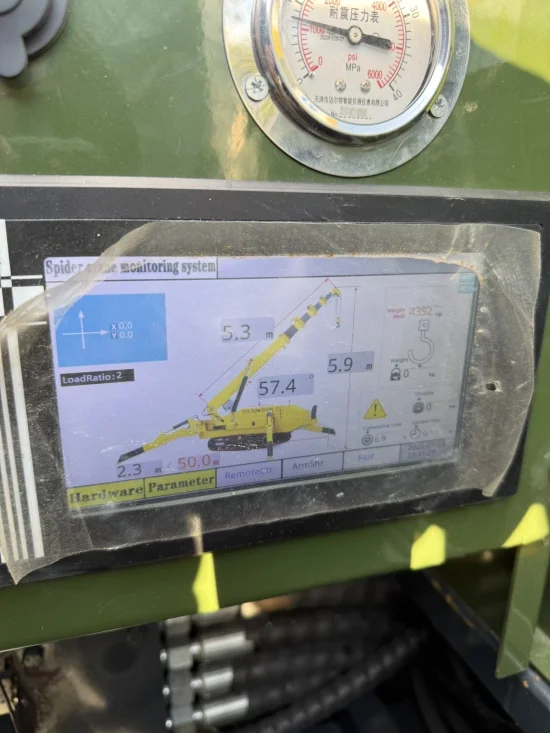

• Load Moment Indicator (LMI) system with overload protection and visual warning when reaching maximum load – €1,500 excl. VAT

• Remote control of outriggers and Ground Lift Alarm system (warning when an outrigger loses ground contact) – €2,000 excl. VAT

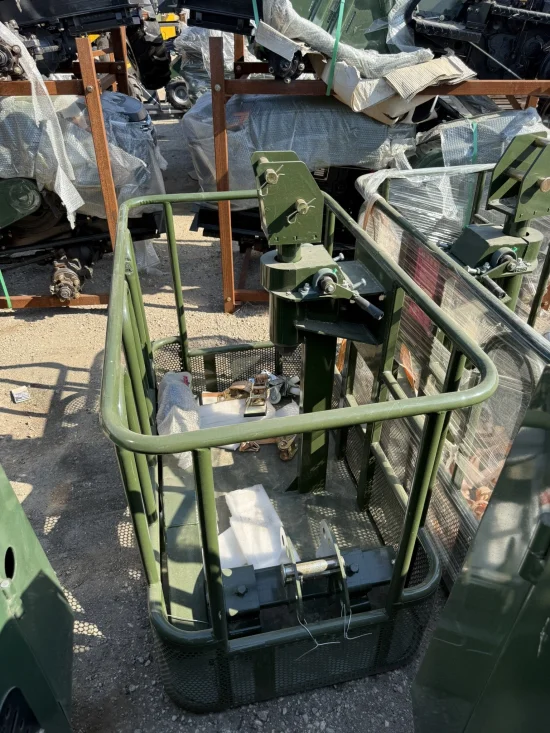

• 1.2 m working platform basket for work at height – €900 excl. VAT

• Fly Jib (3-section boom extension), length 1.5 – 3.7 m – €5,000 excl. VAT

Technical Specifications

Dimensions and Weight

• Length: 4600 mm

• Width: 1430 mm

• Height: 2170 mm

• Operating weight: 6550 kg

Lifting Capacity and Working Range

• Maximum lifting capacity: 5.0 t

• Maximum working radius: 16.0 m

• Maximum lifting height: 16.8 m

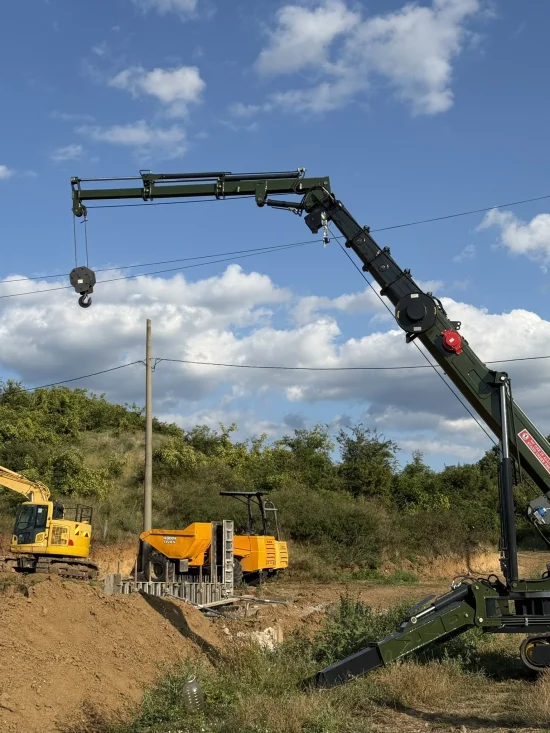

With Optional Fly Jib

• Maximum lifting height: up to 20.5 m

• Maximum horizontal reach: up to 19.7 m

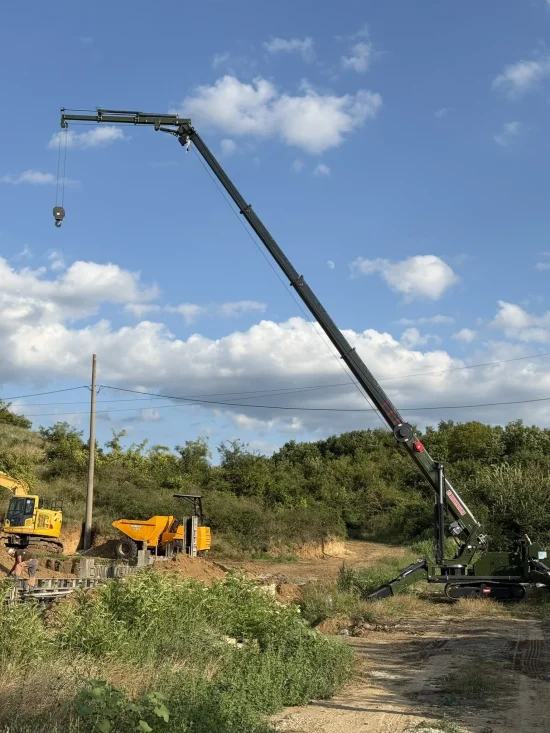

Telescopic Boom

• Type: Automatic 5-section telescopic boom

• Boom length: 4.7 – 16.5 m

• Boom extension time: 45 sec

• Boom angle: 0° – 80°

• Boom lifting time: 24.5 sec

Winch

• Lifting speed: 12 m/min

• Steel wire rope: Ø12 mm × 80 m

Slewing System

• Continuous rotation: 360°

• Rotation speed: 2.1 rpm

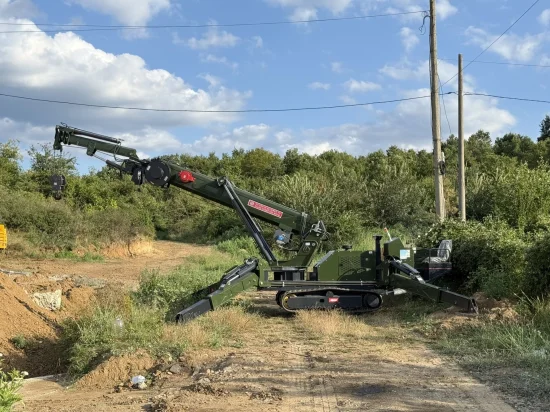

Outriggers

• Multi-section hydraulic outriggers

• Manual positioning of the first section

• Automatic deployment of the second and third sections

• Maximum working footprint with outriggers fully extended:

Width: 5670 mm

Front length: 5510 mm

Rear length: 5030 mm

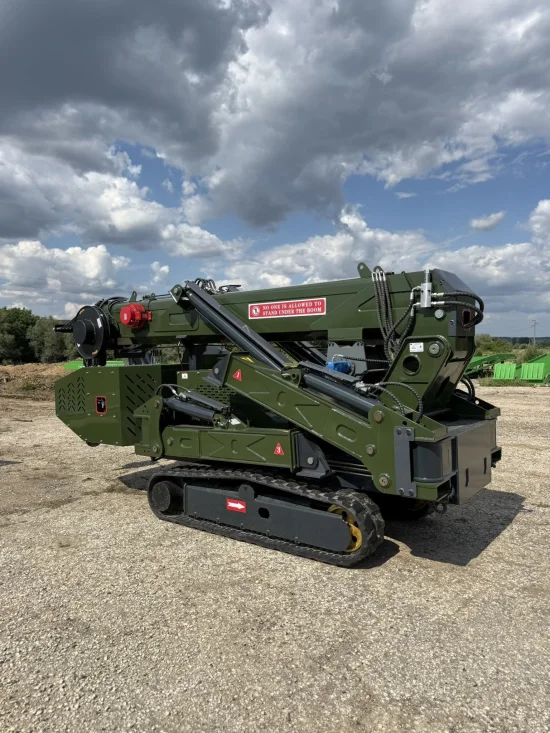

Travel System

• Hydraulic track drive

• Travel speed: up to 2.5 km/h

• Maximum gradeability: 20°

• Ground pressure: 49 kPa

Electrical System

• Three-phase asynchronous electric motor

• Operating voltage: 380V

• Power output: 11 kW

Engine

• Yunnei 490 diesel engine

• Power output: 37 kW (50 HP)

• Electric start

• Fuel type: Diesel

Machine Electrical System

• On-board voltage: 24V

Key Advantages

• Lifting capacity up to 5.0 tons

• Maximum lifting height of 16.8 m

• Up to 20.5 m lifting height with Fly Jib

• Maximum working radius of 16.0 m

• Up to 19.7 m horizontal reach with Fly Jib

• Operation via diesel engine or 380V electric power supply

• Ideal for glass façade installation and heavy structural work

• Excellent stability thanks to multi-section outriggers

• Large working range combined with compact dimensions

• Suitable for both indoor and outdoor lifting operations

• Precise operation through remote control systems

• Ideal for construction, industrial, and installation applications
