Müller SC1.2 Spider Crane

Compact Spider Crane with 1.2-Ton Lifting Capacity

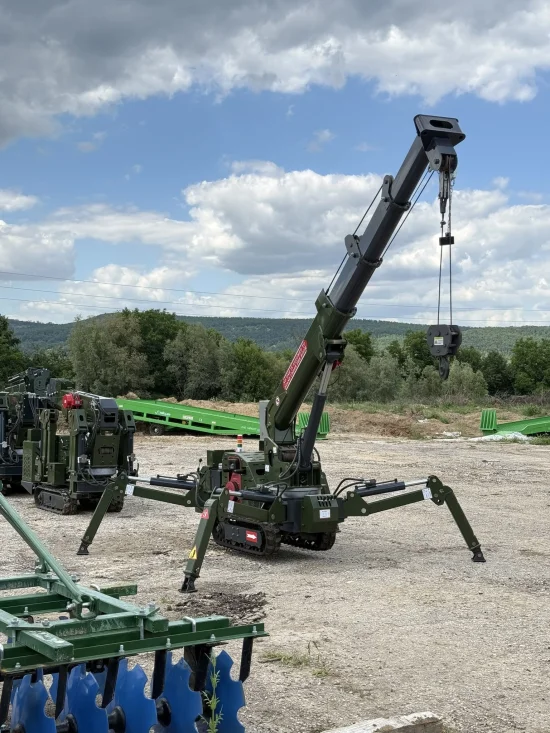

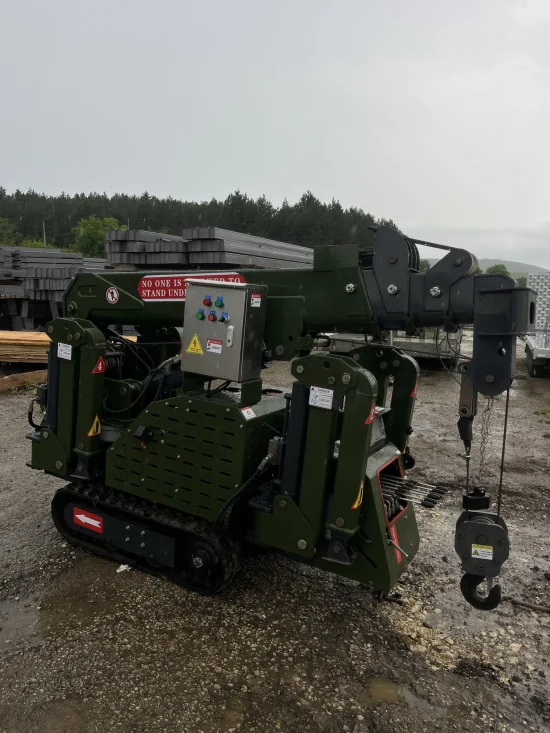

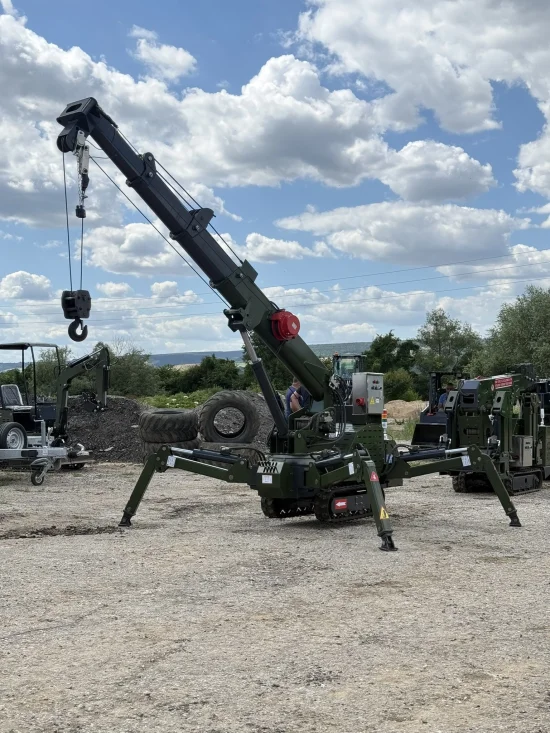

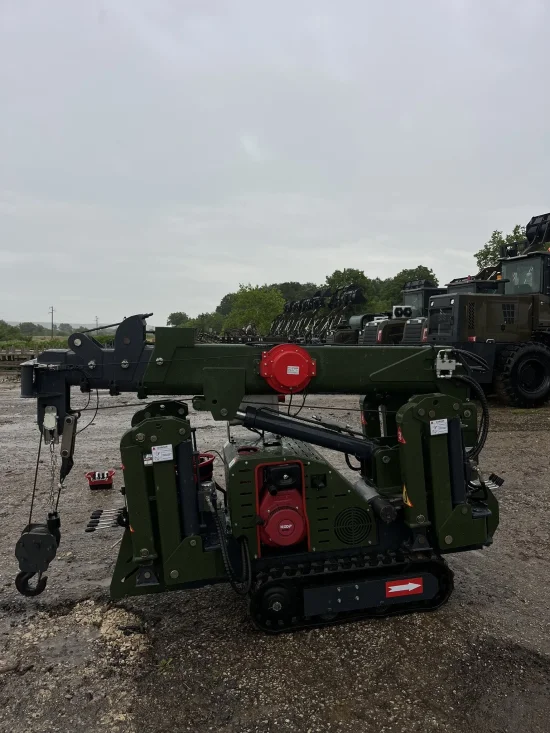

The Müller SC1.2 is a compact spider crane designed for operation in confined spaces, production facilities, warehouses, commercial buildings, and construction sites. With a width of only 750 mm, the machine can pass through standard doorways and access areas that are inaccessible to conventional mobile cranes.

Combining a lifting capacity of up to 1.2 tons, an automatic 4-section telescopic boom, and the ability to operate using either a diesel engine or a 380V electric power supply, the SC1.2 is an excellent solution for installing glass panels, steel structures, façade elements, HVAC systems, machinery, and other equipment.

Included in the Price

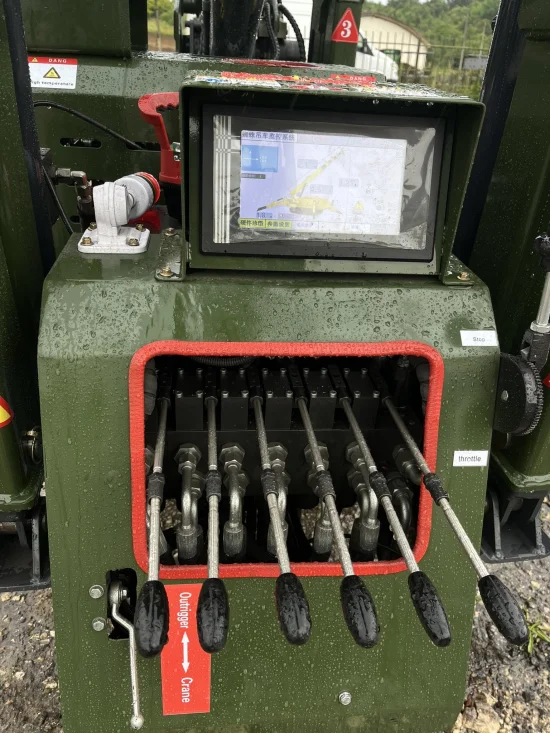

• Mechanical hydraulic controls mounted on the crane
• Wireless remote control

Optional Equipment

• Load-Sensing hydraulic system with automatic flow adjustment according to load – €1,500 excl. VAT
• Load Moment Indicator (LMI) system with overload protection and visual warning when reaching maximum load – €1,500 excl. VAT

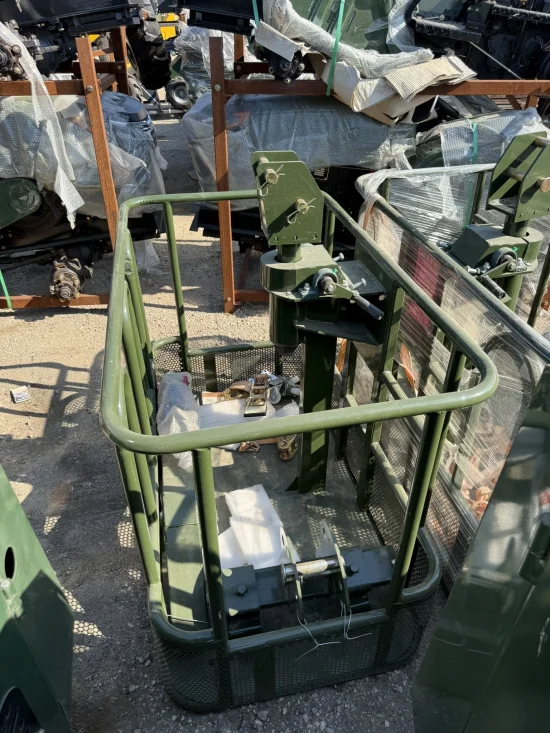

• 1 m working platform basket for work at height – €700 excl. VAT

Technical Specifications

Dimensions and Weight

• Length: 2600 mm
• Width: 750 mm
• Height: 1560 mm
• Operating weight: 1430 kg

Lifting Capacity and Working Range

• Maximum lifting capacity: 1.2 t
• Maximum working radius: 4.7 m
• Maximum lifting height: 5.2 m

Telescopic Boom

• Type: Automatic 4-section telescopic boom
• Boom length: 2.2 – 5.2 m
• Boom extension time: 25 sec
• Boom angle: 0° – 80°
• Boom lifting time: 18 sec

Winch

• Lifting speed: 5.2 m/min
• Steel wire rope: Ø10 mm × 40 m

Slewing System

• Continuous rotation: 360°
• Rotation speed: 2.1 rpm

Outriggers

• Multi-section hydraulic outriggers
• Manual positioning of the first and third sections
• Automatic deployment of the second section
• Maximum working footprint with outriggers fully extended:

Width: 3400 mm
Length: 2900 mm

Travel System

• Hydraulic track drive
• Travel speed: up to 2.5 km/h
• Maximum gradeability: 20°
• Ground pressure: 49 kPa

Electrical System

• Three-phase asynchronous electric motor
• Operating voltage: 380V
• Power output: 5.5 kW

Engine

• KOOP 192 diesel engine
• Power output: 12 HP
• Electric start
• Fuel type: Diesel
