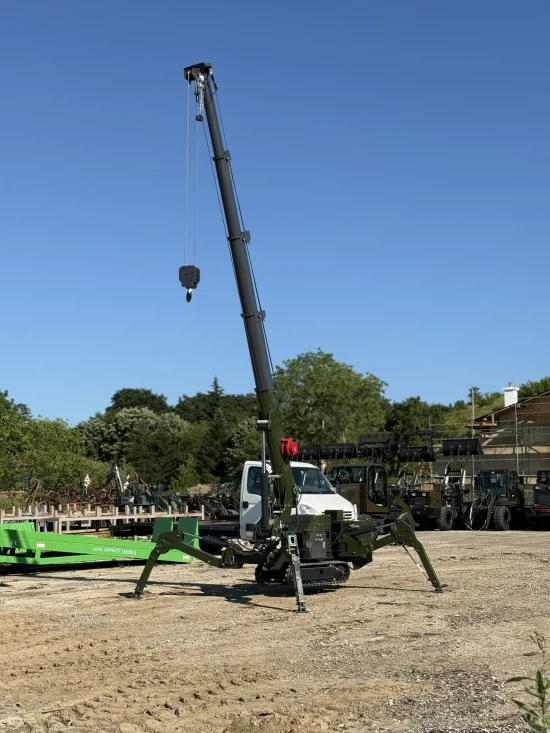

Müller SC2.0 Spider Crane

Compact Spider Crane with 2.0-Ton Lifting Capacity

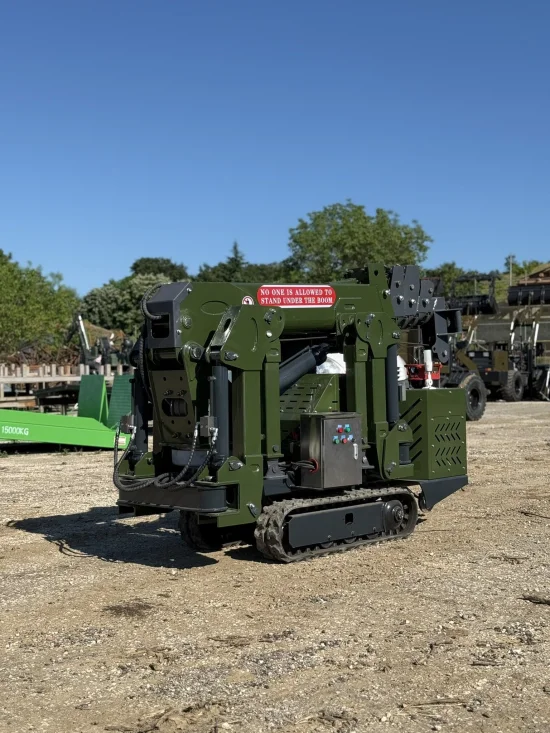

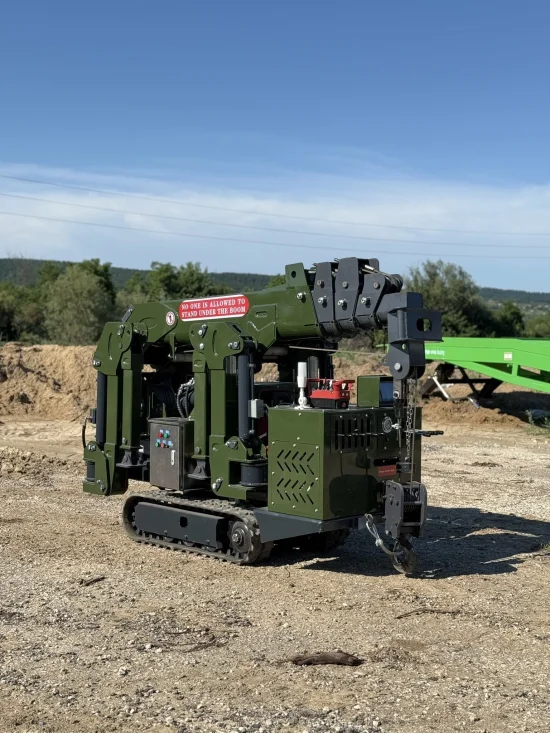

The Müller SC2.0 is a professional spider crane designed for operation in confined spaces, production facilities, warehouses, commercial buildings, and construction sites. Thanks to its compact design and width of only 850 mm, the machine can pass through narrow access points and work in areas inaccessible to conventional mobile cranes.

With a lifting capacity of up to 2.0 tons, an automatic 5-section telescopic boom, and the ability to operate using either a diesel engine or a 380V electric power supply, the SC2.0 is an excellent solution for installing glass panels, steel structures, façade elements, HVAC systems, machinery, and industrial equipment.

Included in the Price

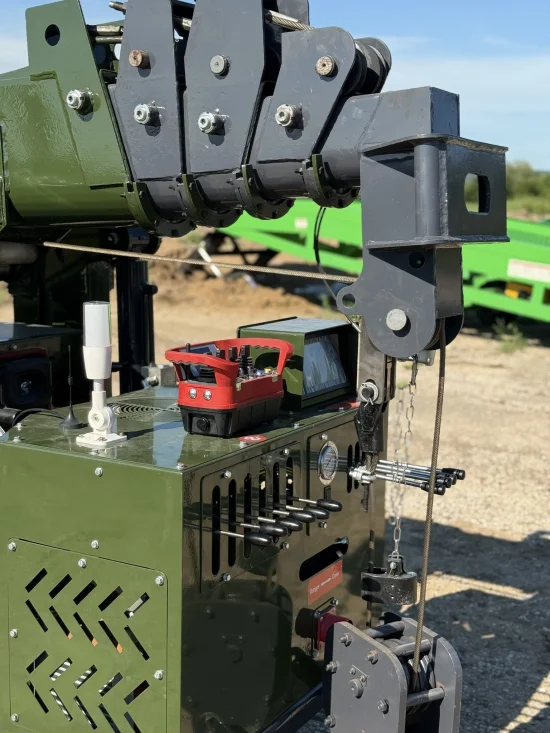

• Mechanical hydraulic controls mounted on the crane

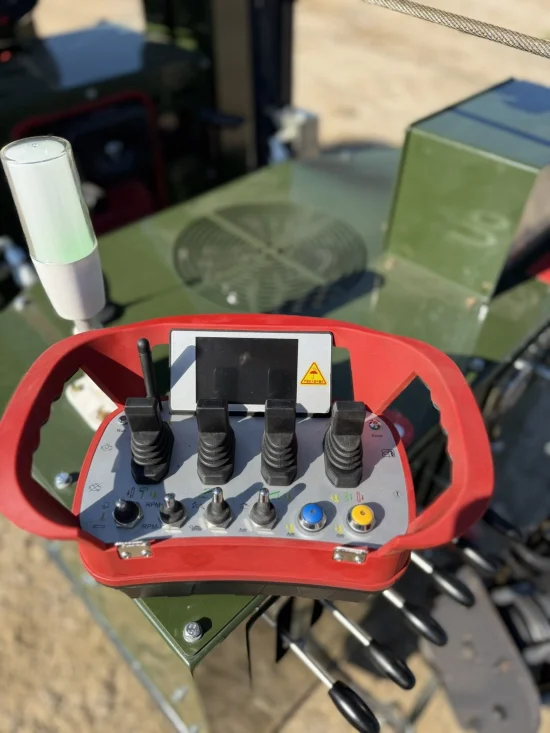

• Wireless remote control

Optional Equipment

• Load-Sensing hydraulic system with automatic flow adjustment according to load – €1,500 excl. VAT

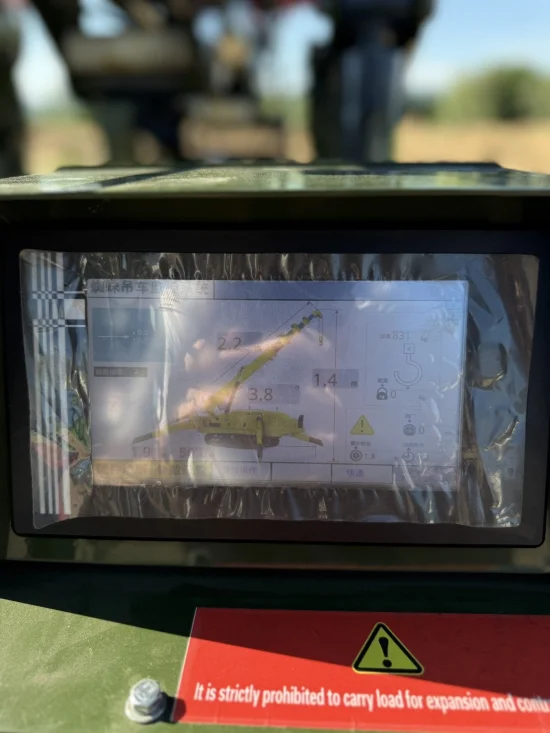

• Load Moment Indicator (LMI) system with overload protection and visual warning when reaching maximum load – €1,500 excl. VAT

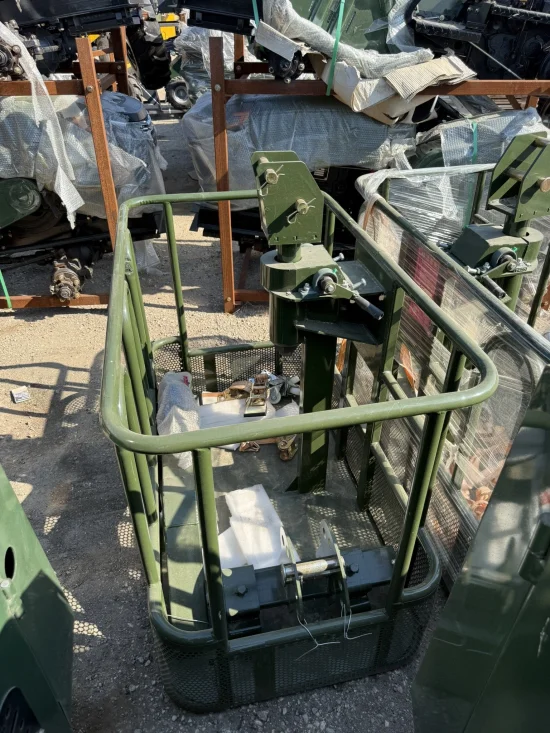

• 1 m working platform basket for work at height – €700 excl. VAT

Technical Specifications

Dimensions and Weight

• Length: 2600 mm
• Width: 850 mm
• Height: 1550 mm
• Operating weight: 1850 kg

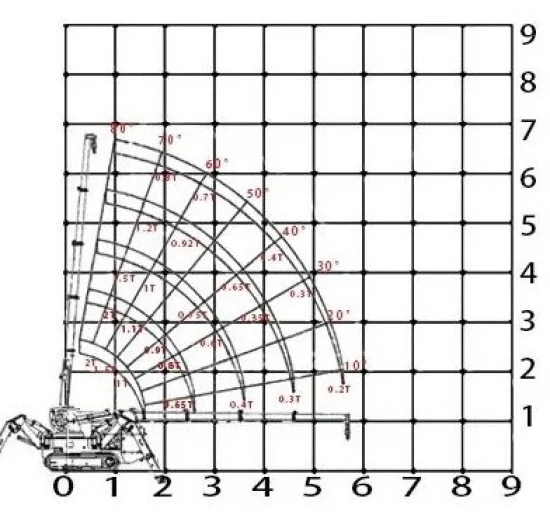

Lifting Capacity and Working Range

• Maximum lifting capacity: 2.0 t
• Maximum working radius: 5.6 m
• Maximum lifting height: 6.0 m

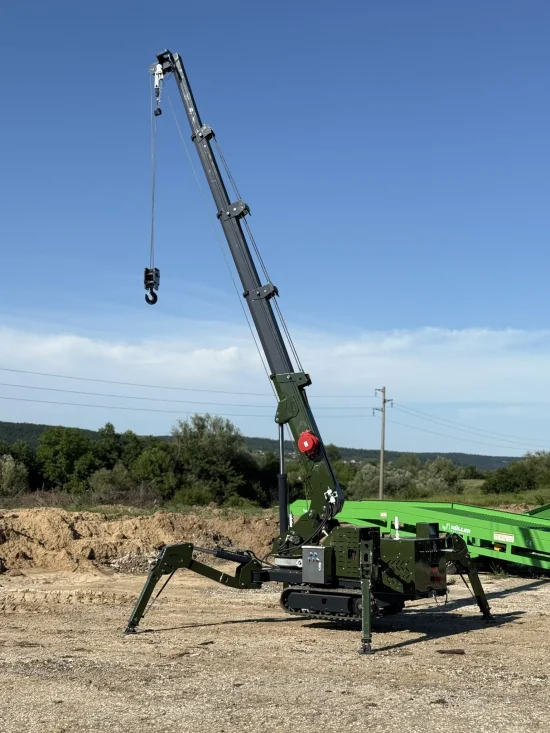

Telescopic Boom

• Type: Automatic 5-section telescopic boom
• Boom length: 2.2 – 5.6 m
• Boom extension time: 25 sec
• Boom angle: 0° – 80°
• Boom lifting time: 18 sec

Winch

• Lifting speed: 12 m/min
• Steel wire rope: Ø10 mm × 50 m

Slewing System

• Continuous rotation: 360°
• Rotation speed: 2.1 rpm

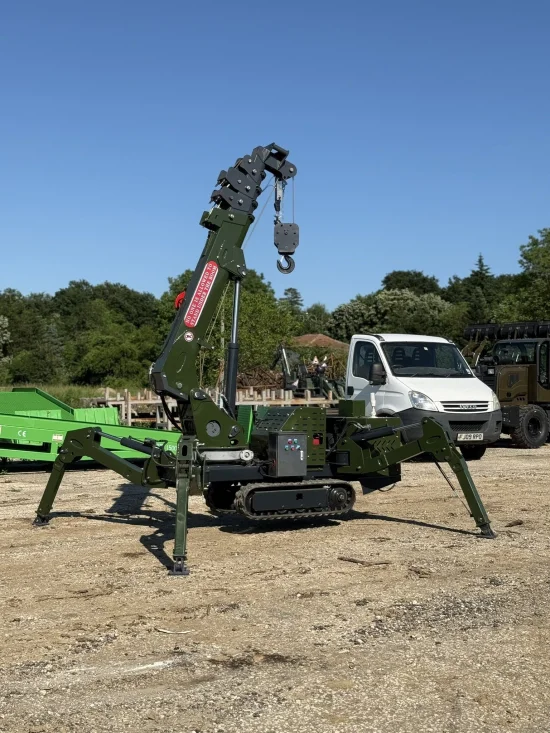

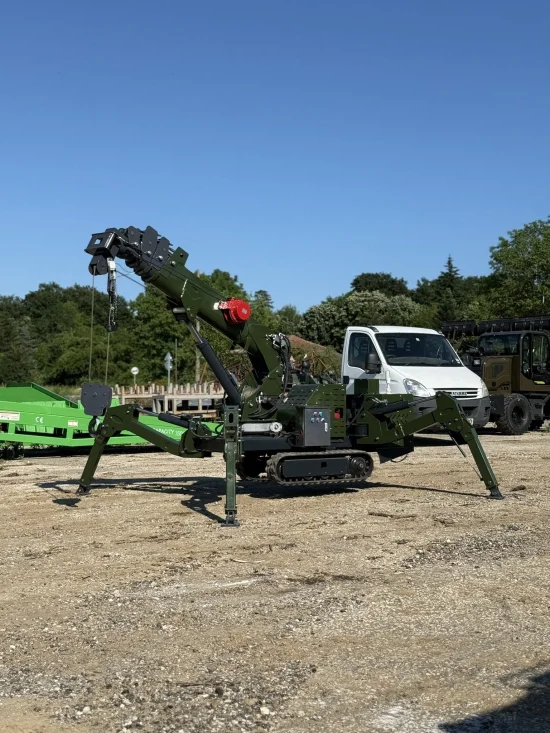

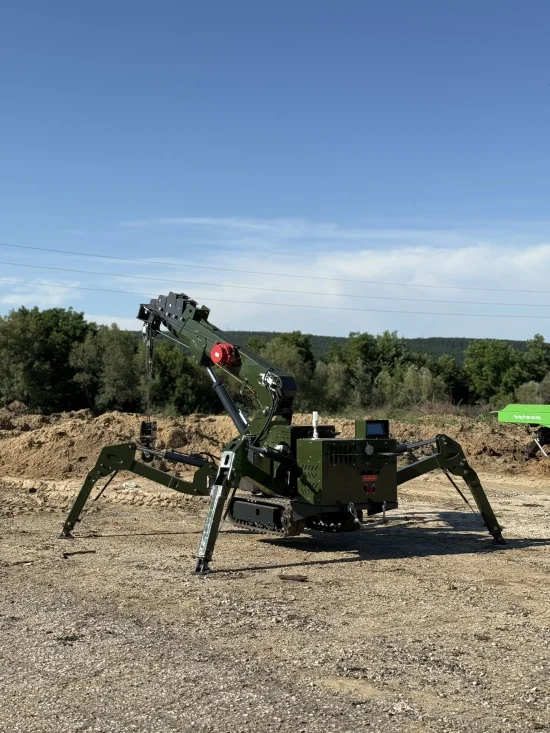

Outriggers

• Multi-section hydraulic outriggers
• Manual positioning of the first and third sections
• Automatic deployment of the second section
• Maximum working footprint with outriggers fully extended:

Width: 4600 mm
Length: 3680 mm

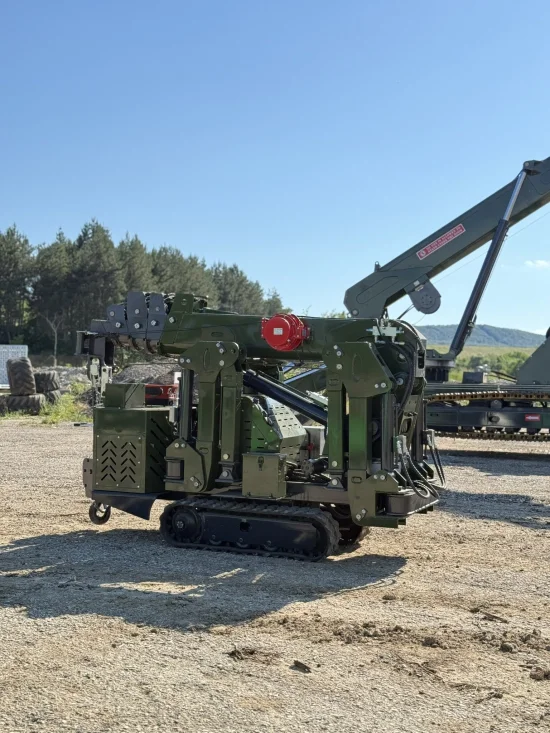

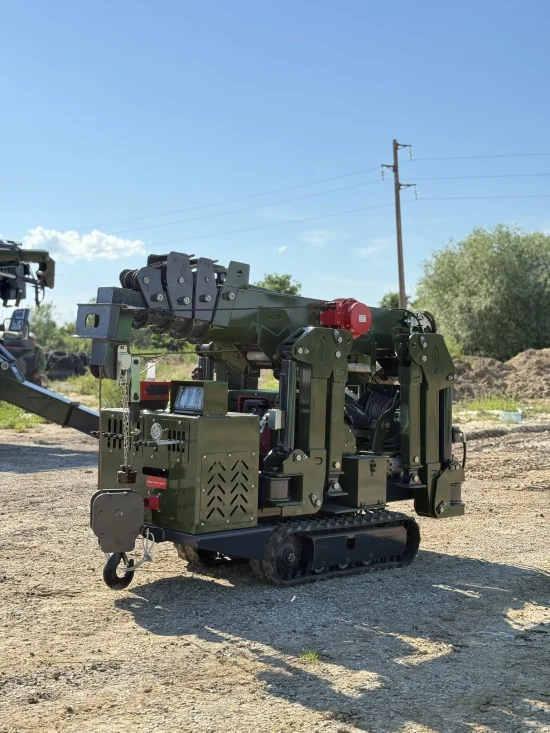

Travel System

• Hydraulic track drive
• Travel speed: up to 2.5 km/h
• Maximum gradeability: 20°
• Ground pressure: 49 kPa

Electrical System

• Three-phase asynchronous electric motor
• Operating voltage: 380V
• Power output: 5.5 kW

Engine

• KOOP 192 diesel engine
• Power output: 12 HP
• Electric start
• Fuel type: Diesel
