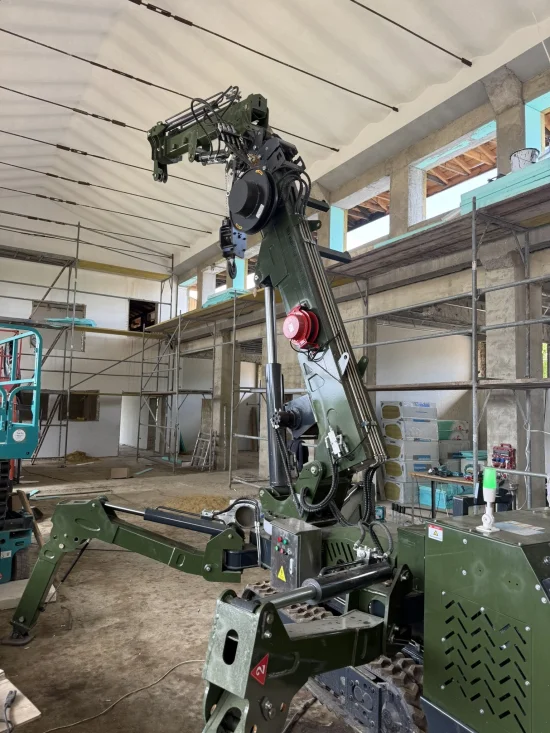

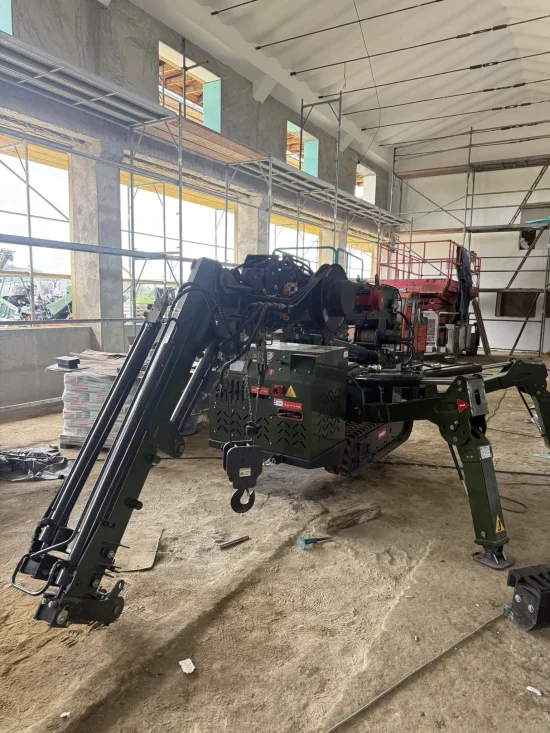

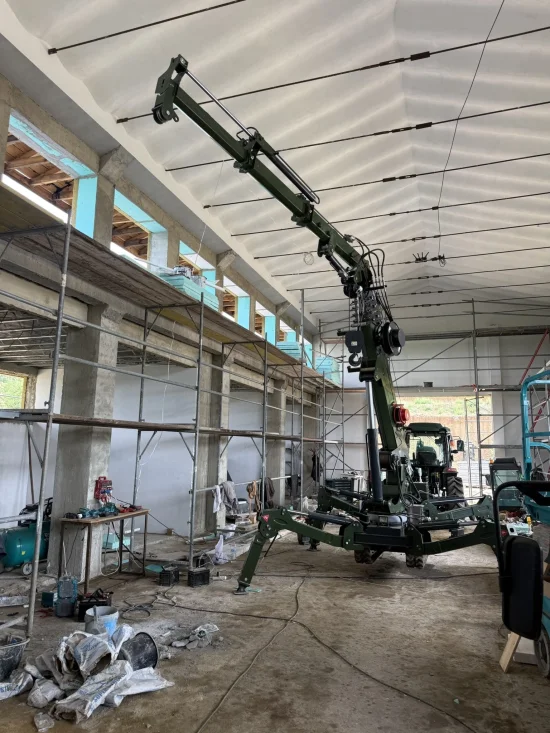

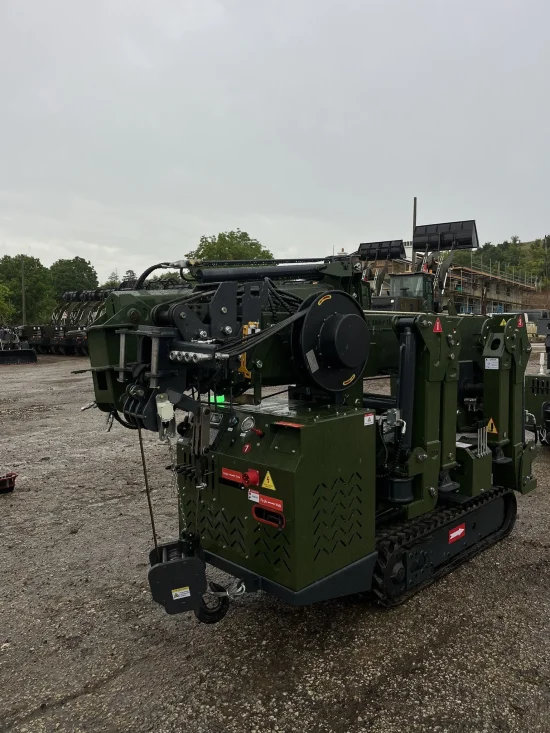

Müller SC3.0 Spider Crane

Compact Spider Crane with 3.0-Ton Lifting Capacity

The Müller SC3.0 is a professional spider crane designed for lifting heavy loads in confined spaces, production facilities, warehouses, commercial buildings, and construction sites. Thanks to its compact dimensions and width of only 980 mm, the machine can pass through narrow access points and reach working areas inaccessible to conventional mobile cranes.

With a lifting capacity of up to 3.0 tons, an automatic 5-section telescopic boom, and the ability to operate using either a diesel engine or a 380V electric power supply, the SC3.0 is an excellent solution for installing glass panels, steel structures, façade elements, HVAC systems, machinery, and industrial equipment.

Included in the Price

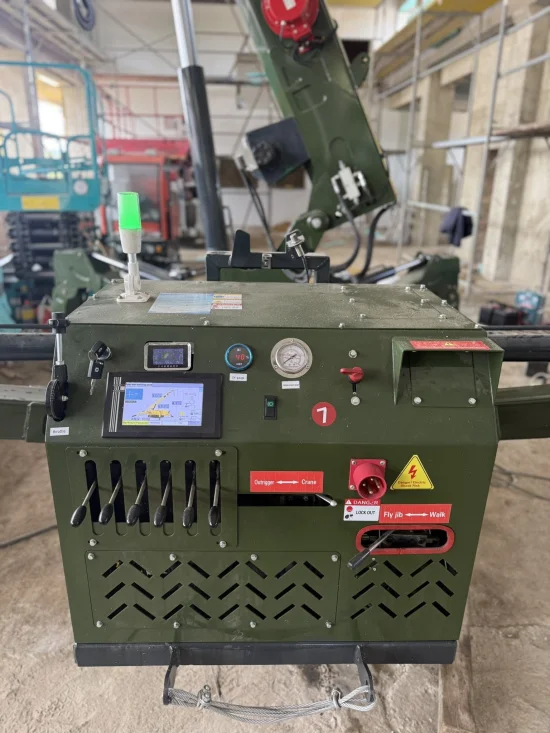

• Mechanical hydraulic controls mounted on the crane

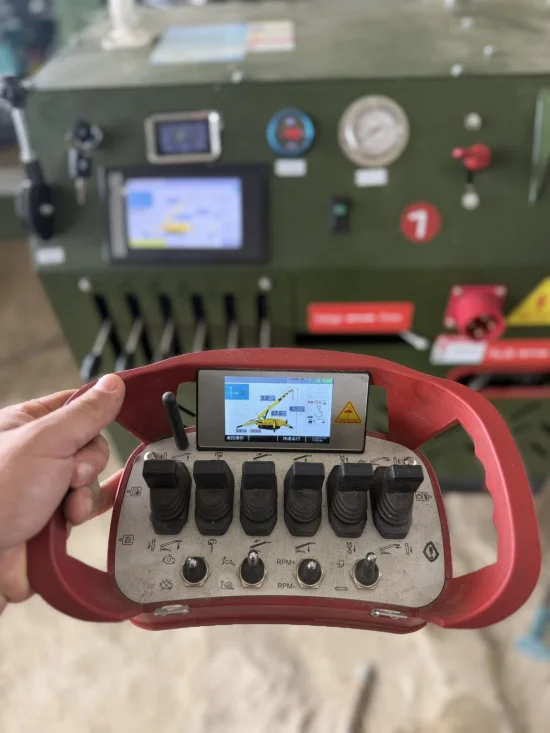

• Wireless remote control

Optional Equipment

• Load-Sensing hydraulic system with automatic flow adjustment according to load – €1,500 excl. VAT

• Load Moment Indicator (LMI) system with overload protection and visual warning when reaching maximum load – €1,500 excl. VAT

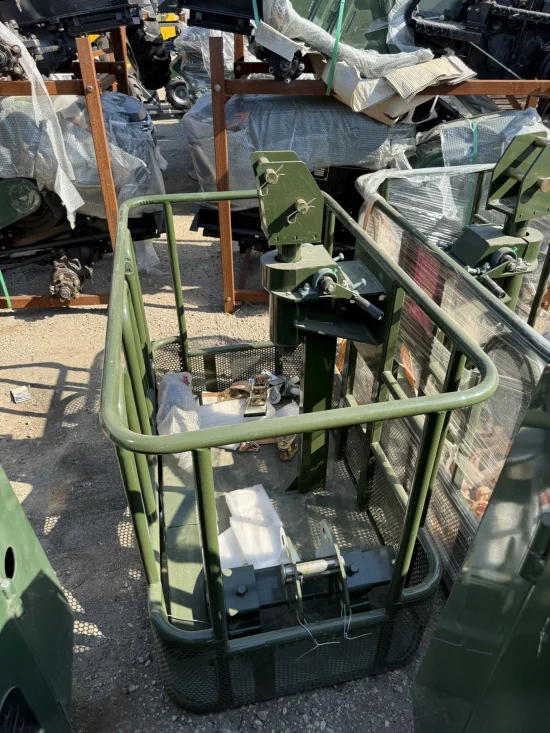

• 1.2 m working platform basket for work at height – €900 excl. VAT

• Fly Jib (3-section boom extension), length 1.5 – 3.4 m – €5,000 excl. VAT

Technical Specifications

Dimensions and Weight

• Length: 3200 mm

• Width: 980 mm

• Height: 1750 mm

• Operating weight: 2650 kg

Lifting Capacity and Working Range

• Maximum lifting capacity: 3.0 t

• Maximum working radius: 8.3 m

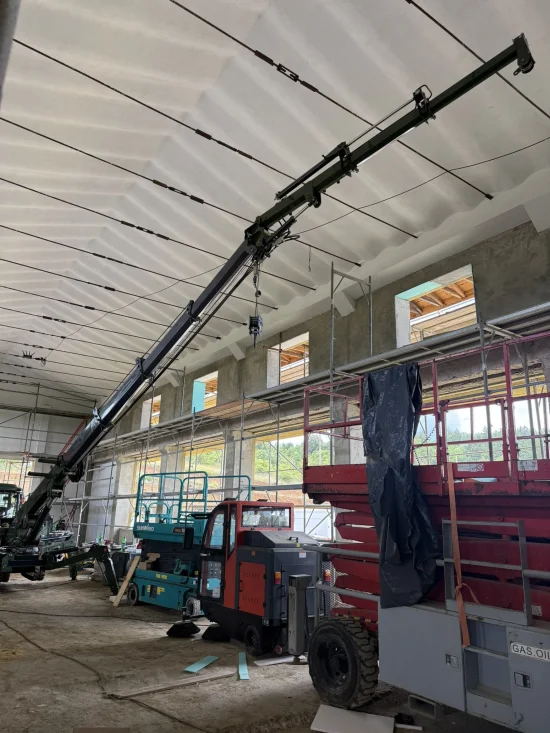

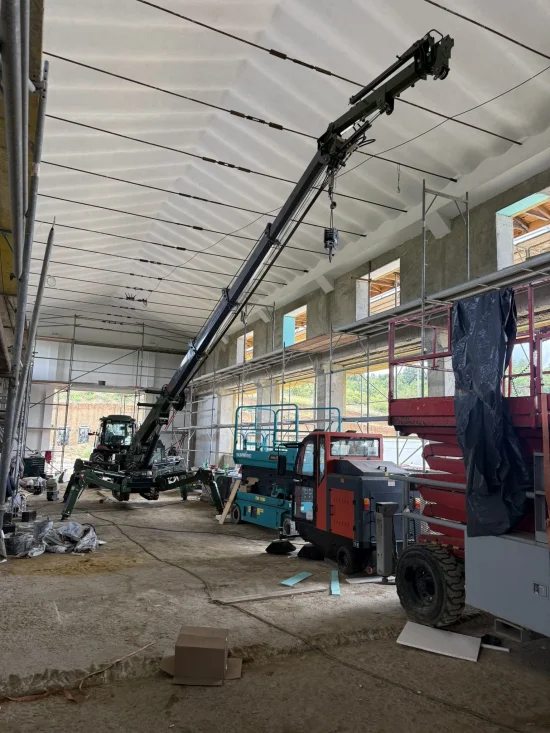

• Maximum lifting height: 9.2 m

With Optional Fly Jib

• Maximum lifting height: up to 12.0 m

• Maximum horizontal reach: up to 11.5 m

Telescopic Boom

• Type: Automatic 5-section telescopic boom

• Boom length: 2.8 – 8.3 m

• Boom extension time: 25 sec

• Boom angle: 0° – 80°

• Boom lifting time: 18 sec

Winch

• Lifting speed: 10 m/min

• Steel wire rope: Ø10 mm × 50 m

Slewing System

• Continuous rotation: 360°

• Rotation speed: 2.1 rpm

Outriggers

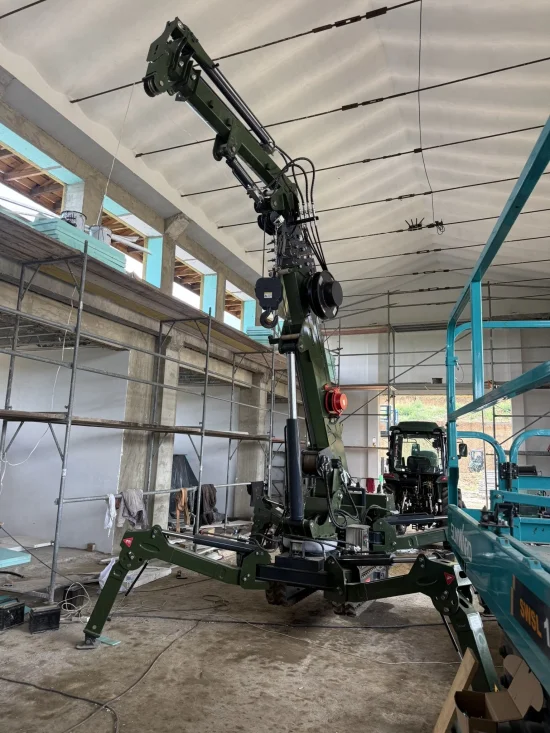

• Multi-section hydraulic outriggers

• Manual positioning of the first and third sections

• Automatic deployment of the second section

• Maximum working footprint with outriggers fully extended:

Width: 5100 mm

Length: 4060 mm

Travel System

• Hydraulic track drive

• Travel speed: up to 2.5 km/h

• Maximum gradeability: 20°

• Ground pressure: 49 kPa

Electrical System

• Three-phase asynchronous electric motor

• Operating voltage: 380V

• Power output: 5.5 kW

Engine

• KOOP 2V80 diesel engine

• Power output: 12 kW (16 HP)

• Electric start

• Fuel type: Diesel

Key Advantages

• Lifting capacity up to 3.0 tons

• Maximum lifting height of 9.2 m

• Up to 12.0 m lifting height with Fly Jib

• Maximum working radius of 8.3 m

• Up to 11.5 m horizontal reach with Fly Jib

• Compact width of only 980 mm

• Operation via diesel engine or 380V electric power supply

• Suitable for indoor and outdoor lifting operations

• Excellent maneuverability in confined spaces

• Low operating weight and easy transportation

• Fast setup and deployment

• Excellent stability thanks to multi-section hydraulic outriggers

• Precise operation via remote control

• Ideal for glass installation, façades, steel structures, HVAC systems, and industrial equipment handling
