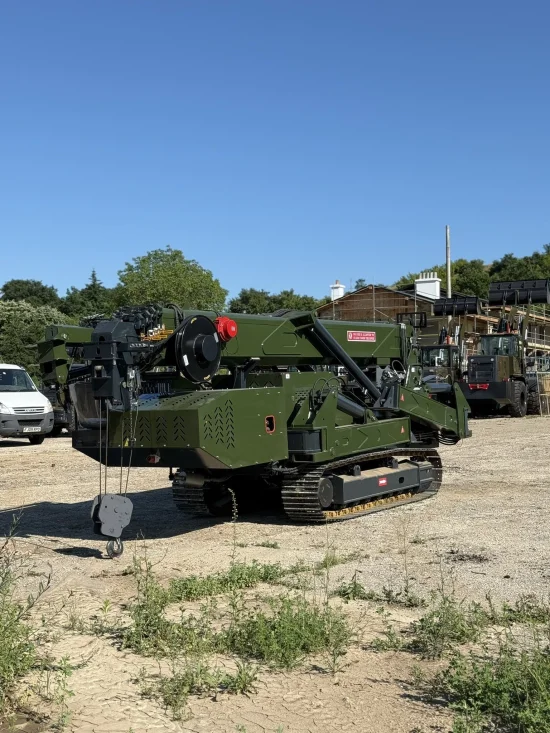

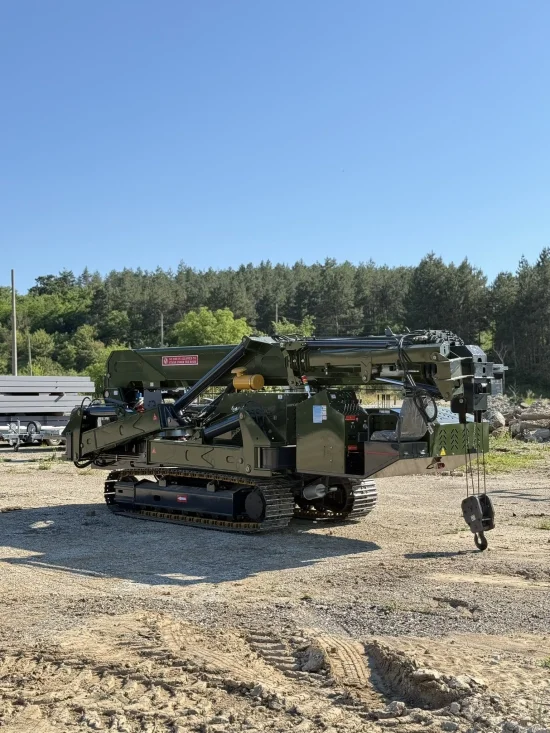

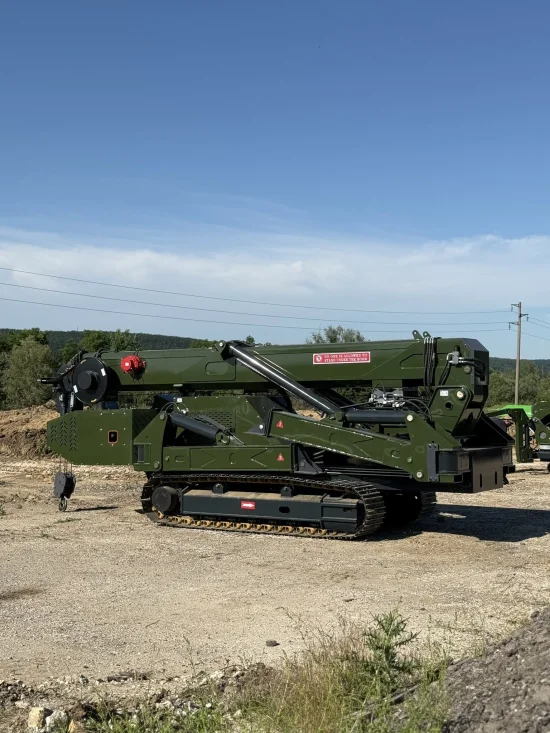

Müller SC12.0 Spider Crane

Professional Spider Crane with 12.0-Ton Lifting Capacity

The Müller SC12.0 is the most powerful model in the Müller spider crane range, designed for heavy lifting operations, steel structures, façade systems, industrial equipment, energy projects, and specialized lifting applications.

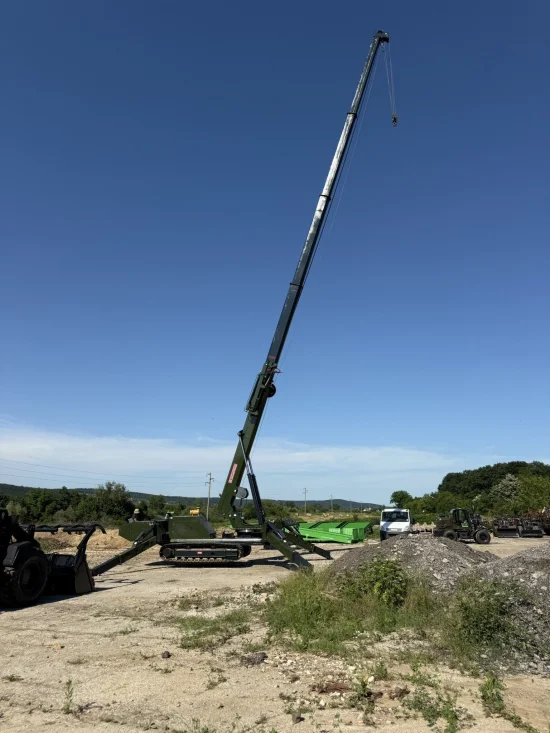

With a maximum lifting capacity of 12.0 tons, a lifting height of up to 25 m, and a working radius of up to 25 m, the Müller SC12.0 delivers performance comparable to large mobile cranes while maintaining the advantages of a compact spider crane. Thanks to the optional Fly Jib with a length of up to 4.5 m, the maximum lifting height reaches 29.5 m and the horizontal reach can extend up to 29.5 m.

Included in the Price

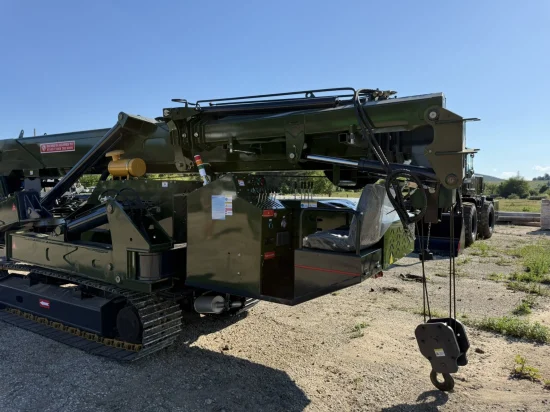

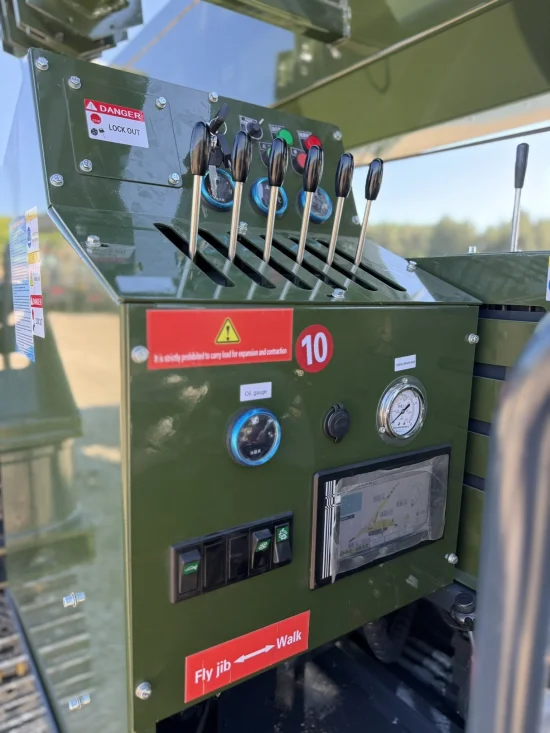

• Mechanical controls mounted directly on the crane (without remote control operation)

Optional Equipment

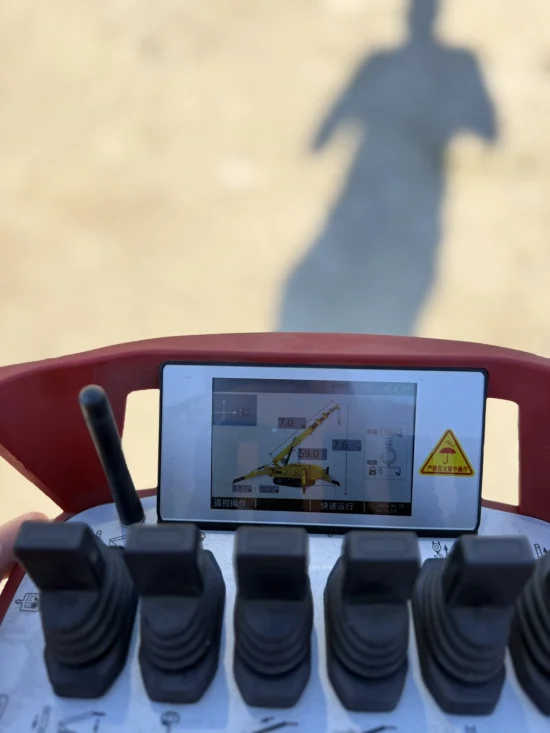

• Proportional Load-Sensing hydraulic system with automatic flow adjustment according to load and proportional wireless remote control – €3,500 excl. VAT

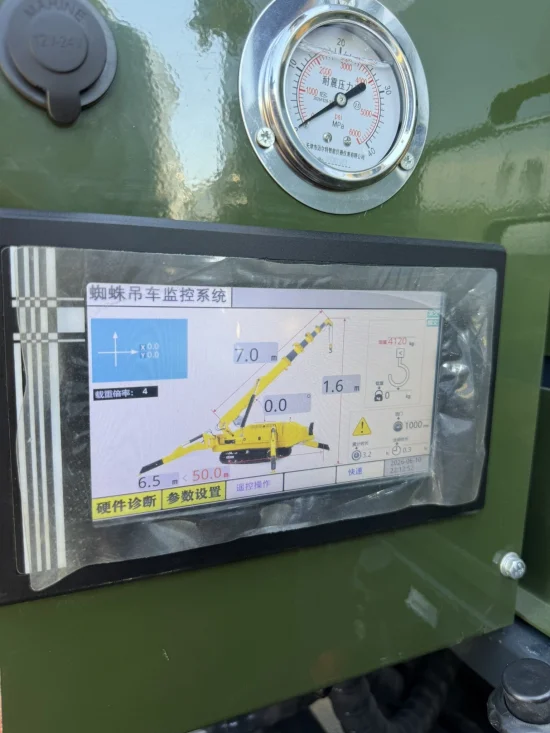

• Load Moment Indicator (LMI) system with overload protection and visual warning when reaching maximum load – €1,500 excl. VAT

• Remote control of outriggers and Ground Lift Alarm system (warning when an outrigger loses contact with the ground) – €2,000 excl. VAT

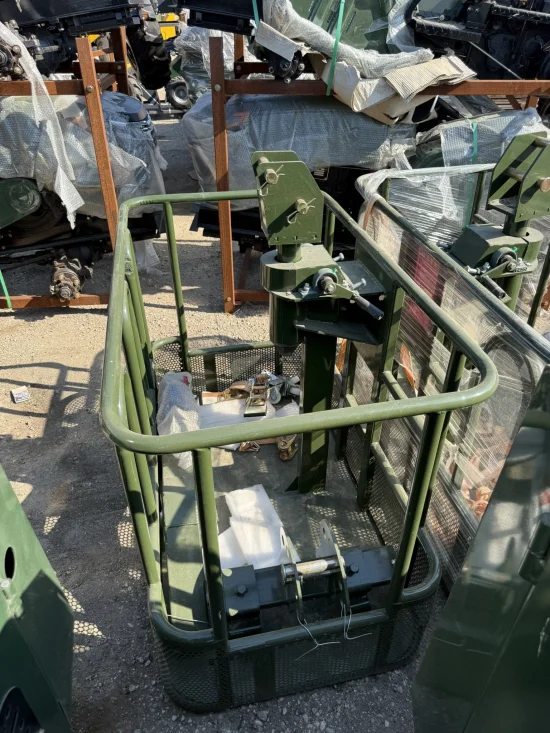

• 1.5 m working platform basket for work at height – €1,000 excl. VAT

• Fly Jib (3-section boom extension), length 1.5 – 4.5 m – €5,500 excl. VAT

Technical Specifications

Dimensions and Weight

• Length: 7000 mm

• Width: 2050 mm

• Height: 2450 mm

• Operating weight: 13,500 kg

Lifting Capacity and Working Range

• Maximum lifting capacity: 12.0 t

• Maximum working radius: 25.0 m

• Maximum lifting height: 25.0 m

With Optional Fly Jib

• Maximum lifting height: up to 29.5 m

• Maximum horizontal reach: up to 29.5 m

• Fly Jib length: 1.5 – 4.5 m

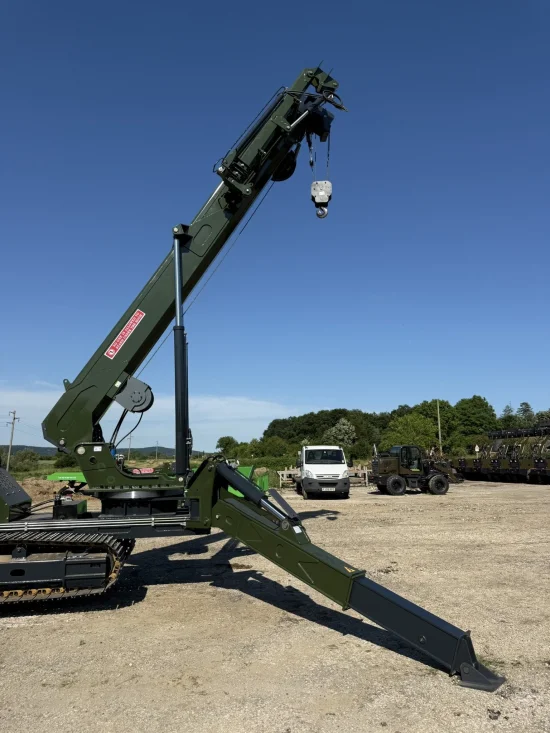

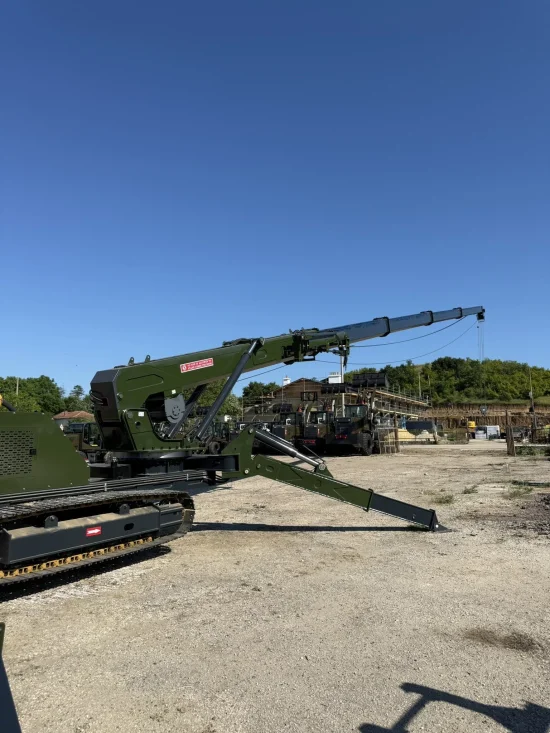

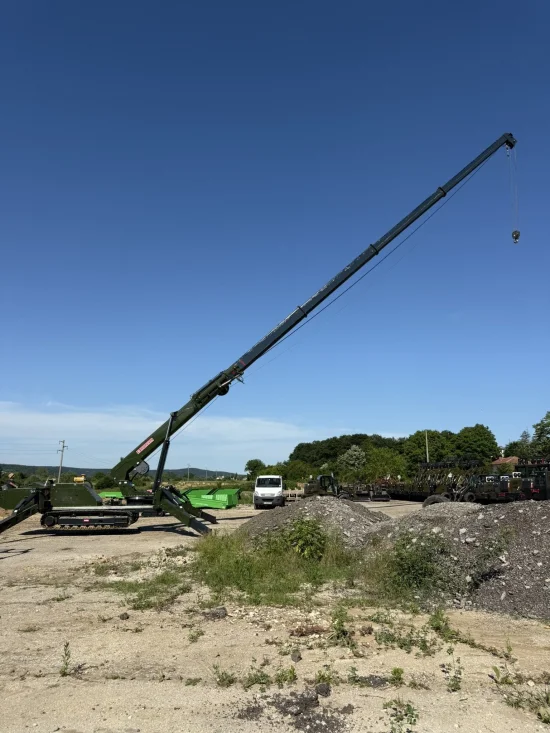

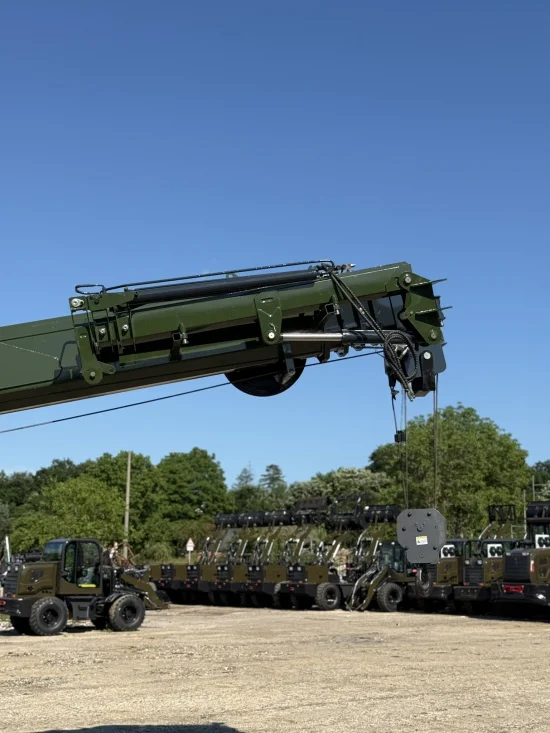

Telescopic Boom

• Type: Automatic 5-section telescopic boom

• Boom length: 6.55 – 25.0 m

• Boom extension time: 54 sec

• Boom angle: 0° – 80°

• Boom lifting time: 24.5 sec

Winch

• Lifting speed: 12 m/min

• Steel wire rope: Ø12 mm × 100 m

Slewing System

• Continuous rotation: 360°

• Rotation speed: 2.1 rpm

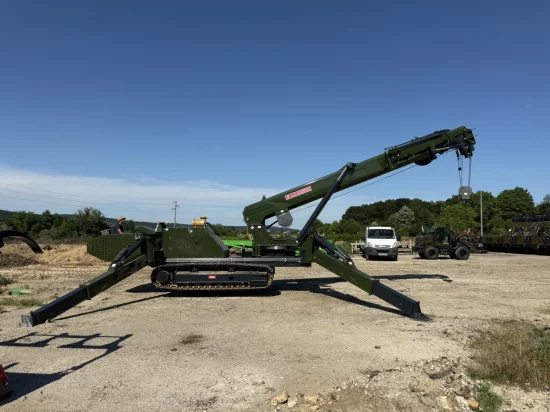

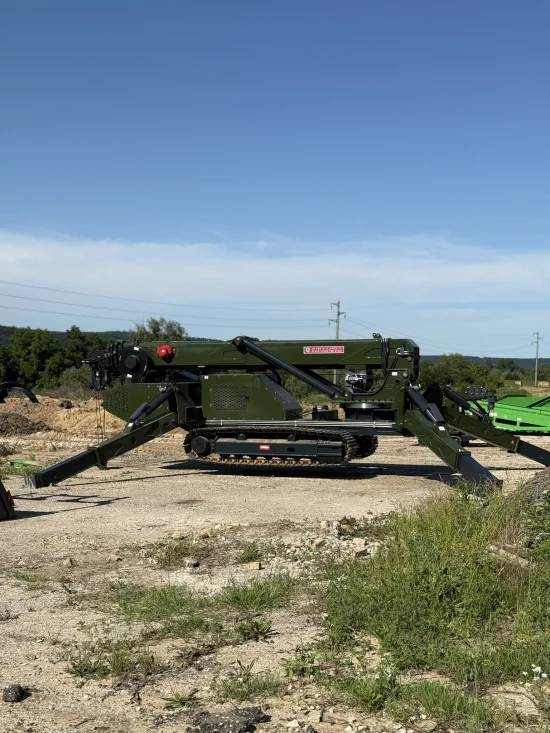

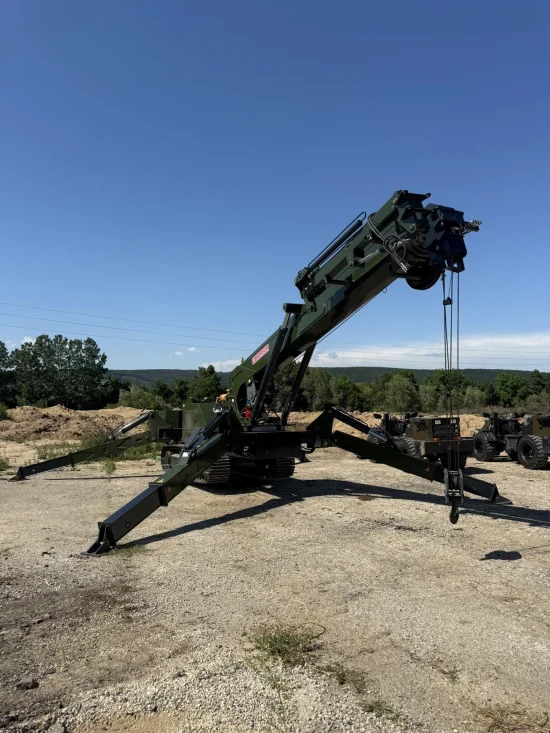

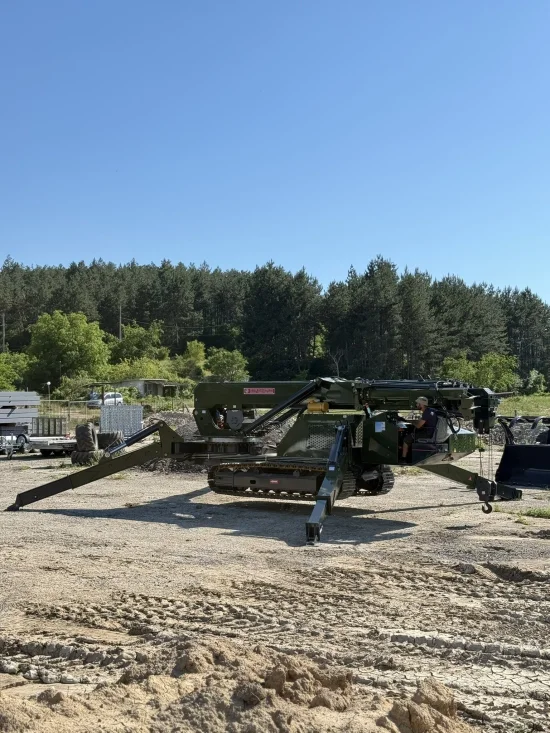

Outriggers

• Multi-section hydraulic outriggers

• Manual positioning of the first section

• Automatic deployment of the second and third sections

• Maximum working footprint with outriggers fully extended:

Width: 8700 mm

Front length: 8750 mm

Rear length: 7100 mm

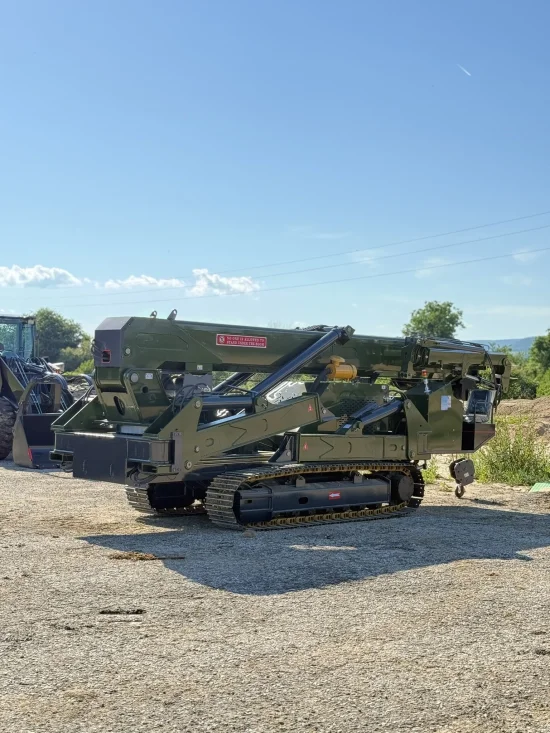

Travel System

• Hydraulic track drive

• Travel speed: up to 2.5 km/h

• Maximum gradeability: 20°

• Ground pressure: 49 kPa

Electrical System

• Three-phase asynchronous electric motor

• Operating voltage: 380V

• Power output: 15 kW

Engine

• Weifang 4110 Turbo diesel engine

• Power output: 98 kW (133 HP)

• Electric start

• Fuel type: Diesel

Machine Electrical System

• On-board voltage: 24V

Key Advantages

• Lifting capacity up to 12.0 tons

• Maximum lifting height of 25 m

• Up to 29.5 m lifting height with Fly Jib

• Maximum working radius of 25 m

• Up to 29.5 m horizontal reach with Fly Jib

• Operation via diesel engine or 380V electric power supply

• Ideal for heavy lifting and industrial applications

• Excellent stability thanks to multi-section hydraulic outriggers

• Large working range combined with relatively compact dimensions

• Suitable for operation in confined areas inaccessible to conventional mobile cranes

• Precise operation through remote control systems

• Ideal for steel structures, façade installation, industrial equipment handling, and energy projects
