Optional Equipment

All prices exclude VAT.

• Fork side shift – 1,000 EUR

• Solid tyres – 1,000 EUR

• Full Free Lift mast – 1,500 EUR

• Three-stage mast with a lifting height of 4.5 m – 2,000 EUR

• Three-stage mast with a lifting height of 6 m – 3,500 EUR

• Three-stage mast with a lifting height of 8 m – 5,000 EUR

• Enclosed cab with air conditioning – 3,000 EUR

• Additional hydraulic line – 800 EUR

• 152 cm forks – 600 EUR

• 167 cm forks – 700 EUR

• 182 cm forks – 800 EUR

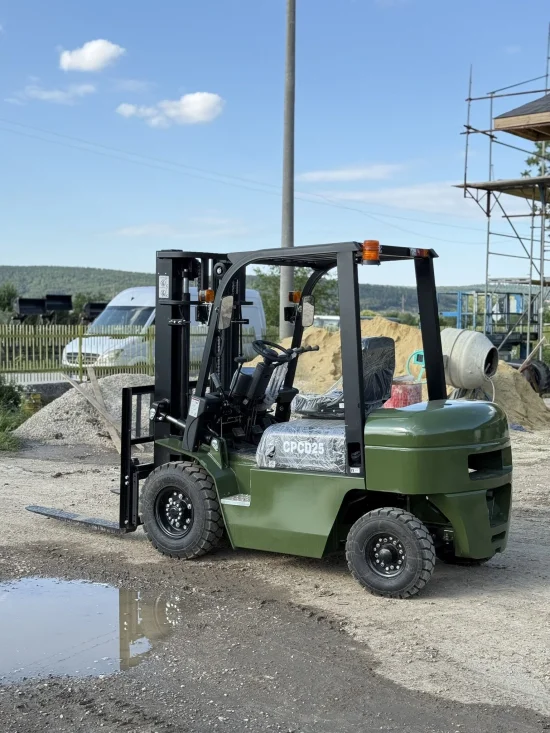

Müller F25 Diesel Forklift – 2.5 Tonnes

The Müller F25 is a durable and manoeuvrable diesel forklift with a lifting capacity of 2,500 kg, designed for daily and intensive operation. It is suitable for loading, unloading and moving materials in warehouses, manufacturing facilities, logistics centres, agricultural sites and construction areas.

The forklift is powered by a four-cylinder Xinchai diesel engine with a displacement of 2.67 litres and an output of 54 hp. The engine provides the necessary power for handling heavy loads and operating on different surfaces.

Hydraulic power steering ensures easy and precise manoeuvring, while the robust chassis and pneumatic tyres provide stability and good performance on uneven terrain. The spacious operator area and excellent visibility of the mast and load contribute to safe and comfortable operation.

Technical Specifications

Model: Müller F25

Rated lifting capacity: 2,500 kg

Load centre: 500 mm

Engine: Four-cylinder Xinchai diesel engine

Engine displacement: 2.67 L

Power: 54 hp

Free lift height: 150 mm

Overall length with forks: 3,646 mm

Overall length without forks: 2,576 mm

Width: 1,170 mm

Overhead guard height: 2,070 mm

Wheelbase: 1,600 mm

Minimum ground clearance: 110 mm

Mast tilt angle, forward/backward: 6°/12°

Minimum turning radius: 2,240 mm

Minimum right-angle aisle width: 3,970 mm

Fork dimensions: 1,070 × 100 × 45 mm

Maximum travel speed with/without load: 17/19 km/h

Lifting speed with/without load: 530/550 mm/s

Gradeability with/without load: 20/21%

Operating weight: 3,680 kg

Tyres

Front tyres: 7.00×12–12PR

Rear tyres: 6.00×9–10PR

Key Advantages

• Four-cylinder Xinchai diesel engine delivering 54 hp

• Lifting capacity of up to 2.5 tonnes

• Robust construction for intensive operation

• Hydraulic power steering

• Excellent manoeuvrability and stability

• Pneumatic tyres suitable for different surfaces

• Excellent visibility of the mast and load

• Spacious and comfortable operator area

• Easy maintenance and low operating costs
