Optional Equipment

All prices exclude VAT.

• Fork side shift with hydraulic fork positioning – 3,000 EUR

• Solid tyres – 2,500 EUR

• Three-stage mast with a lifting height of 4.5 m – 4,000 EUR

• 250 cm forks – 1,500 EUR

• Enclosed cab with heating – 2,500 EUR

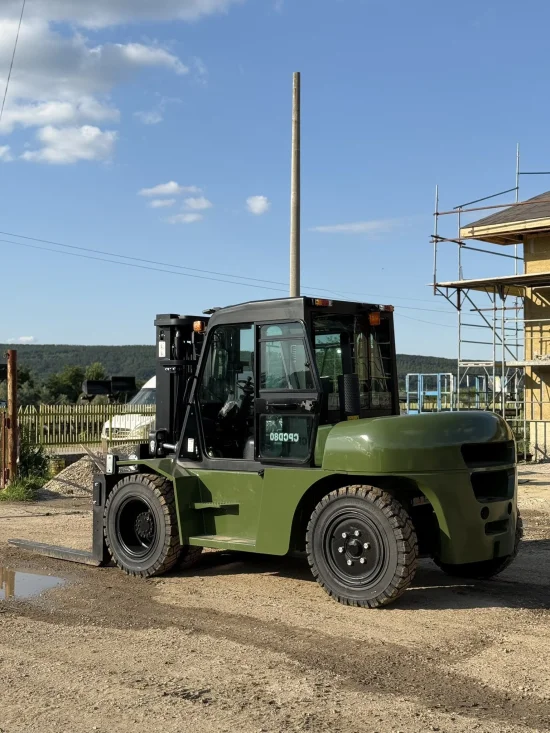

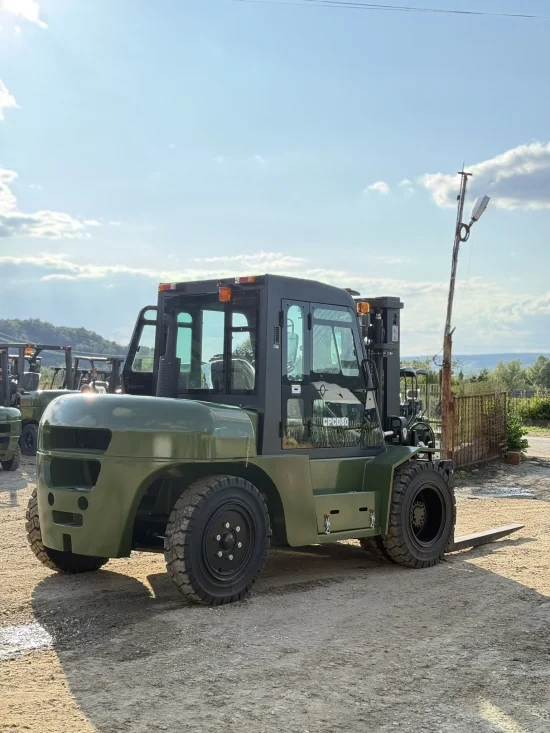

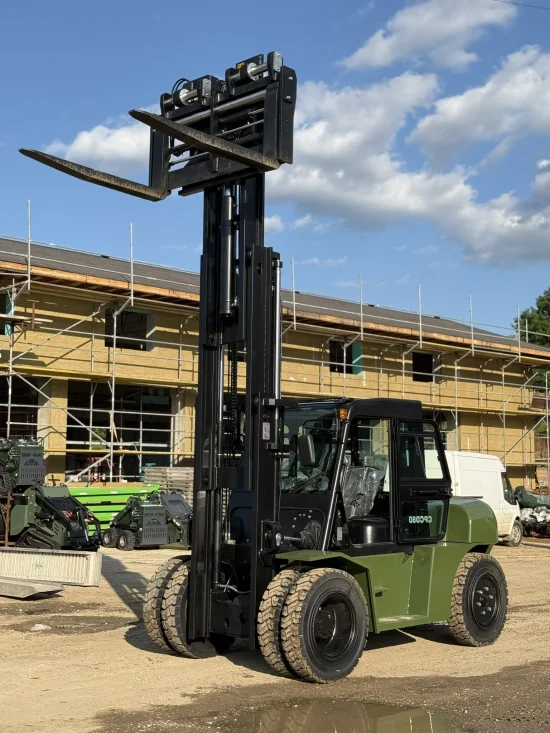

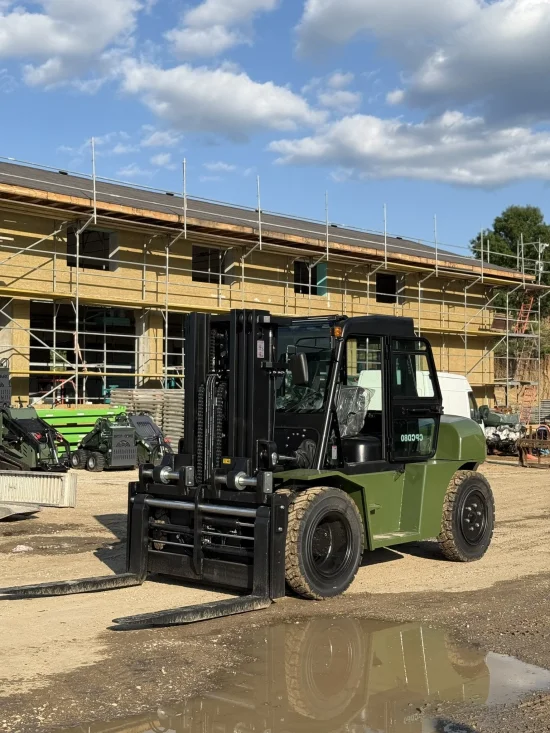

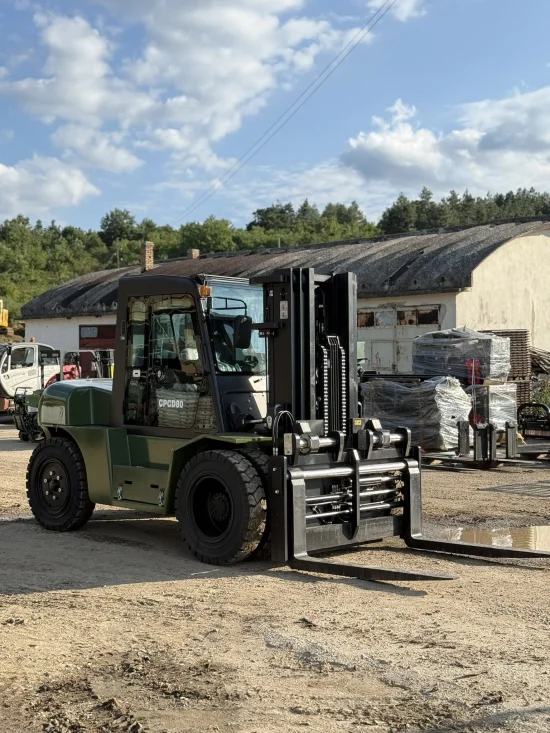

Müller F8.0 Diesel Forklift – 8 Tonnes

The Müller F8.0 is a powerful diesel forklift with a lifting capacity of 8,000 kg, designed for intensive handling of heavy and bulky loads. It is suitable for manufacturing facilities, logistics centres, ports, warehouses, construction sites and other demanding working environments.

The forklift is powered by a six-cylinder turbo diesel engine delivering 114 hp at 2,000 rpm. The engine provides high torque, reliable performance and the power required to lift and transport loads of up to 8 tonnes.

The reinforced chassis, wide construction and large pneumatic tyres provide excellent stability and good performance on different types of terrain. Hydraulic power steering and a compact turning radius for this class make manoeuvring within the working area easier.

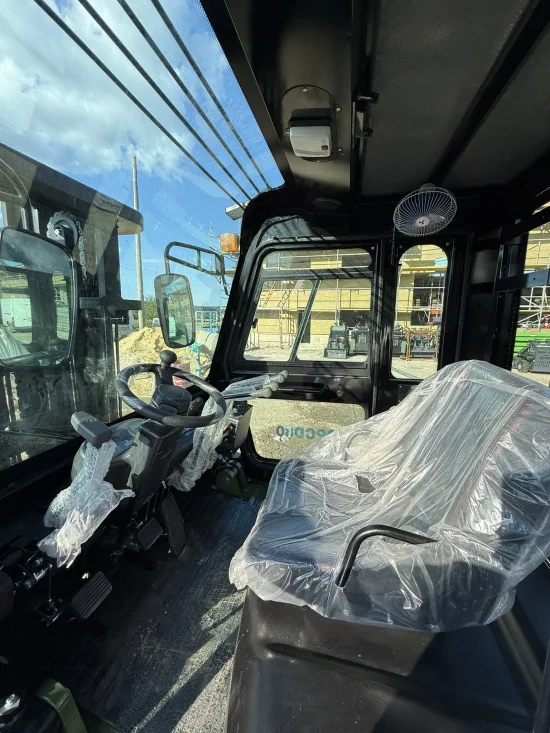

The machine is supplied with 152 cm forks as standard. The spacious operator area, good visibility of the mast and load and user-friendly controls ensure safe and comfortable operation.

Technical Specifications

Model: Müller F8.0

Rated lifting capacity: 8,000 kg

Load centre: 600 mm

Engine: Six-cylinder turbo diesel engine

Power: 114 hp at 2,000 rpm

Free lift height: 200 mm

Standard fork length: 1,520 mm

Overall length with forks: 5,175 mm

Overall length without forks: 3,955 mm

Width: 2,245 mm

Overhead guard height: 2,570 mm

Wheelbase: 2,800 mm

Minimum ground clearance: 250 mm

Mast tilt angle, forward/backward: 10°/12°

Minimum turning radius: 3,755 mm

Minimum right-angle aisle width: 5,755 mm

Fork dimensions: 1,520 × 170 × 70 mm

Maximum travel speed with/without load: 20/26 km/h

Lifting speed with/without load: 330/350 mm/s

Gradeability with/without load: 15/20%

Operating weight: 11,800 kg

Tyres

Front tyres: 8.25–20

Rear tyres: 8.25–20

Standard Equipment

• 152 cm forks

• Hydraulic power steering

• Pneumatic tyres

• Wide overhead guard

• Ergonomic operator area

• Digital instrument panel for monitoring the machine’s operating parameters

Key Advantages

• Six-cylinder turbo diesel engine delivering 114 hp

• Lifting capacity of up to 8 tonnes

• Reinforced construction for intensive operation

• Excellent stability when handling heavy loads

• High ground clearance

• Good manoeuvrability for a machine in this class

• Large pneumatic tyres suitable for different types of terrain

• 152 cm forks included as standard

• Good visibility of the mast and load

• Spacious and comfortable operator area
