Optional Equipment

All prices exclude VAT.

• Fork side shift – 1,000 EUR

• Solid tyres – 1,000 EUR

• Full Free Lift mast – 1,500 EUR

• Three-stage mast with a lifting height of 4.5 m – 2,000 EUR

• Three-stage mast with a lifting height of 6 m – 3,500 EUR

• Three-stage mast with a lifting height of 8 m – 5,000 EUR

• Enclosed cab with air conditioning – 3,000 EUR

• Additional hydraulic line – 800 EUR

• 152 cm forks – 600 EUR

• 167 cm forks – 700 EUR

• 182 cm forks – 800 EUR

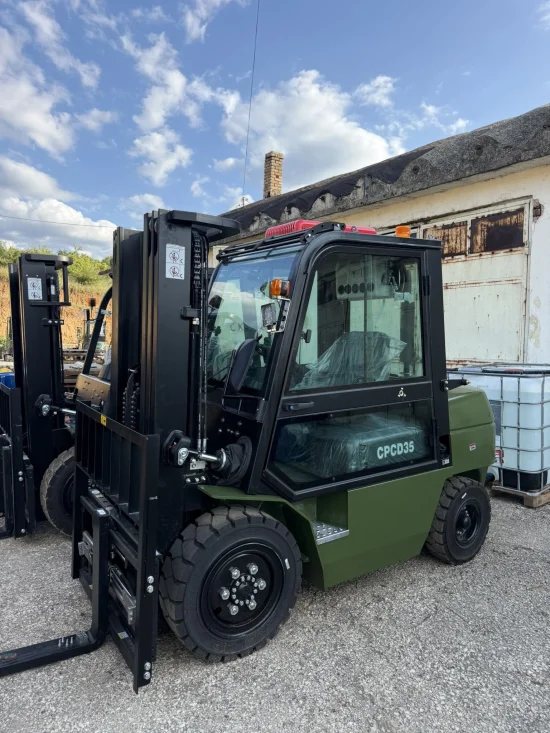

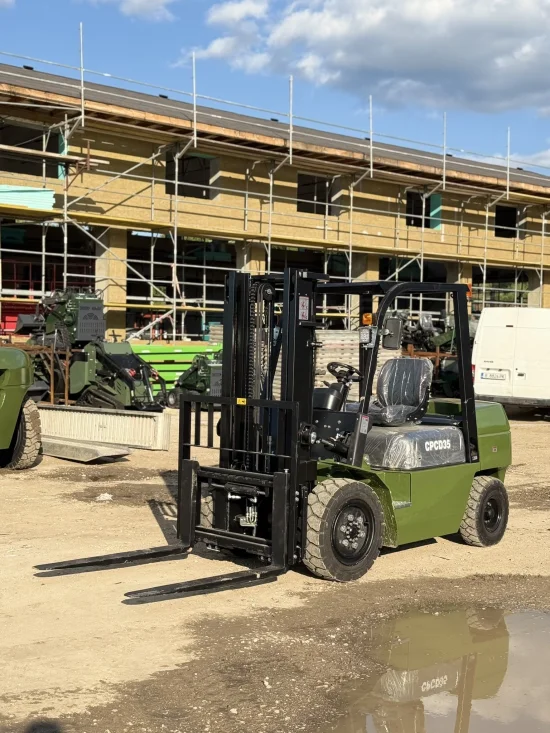

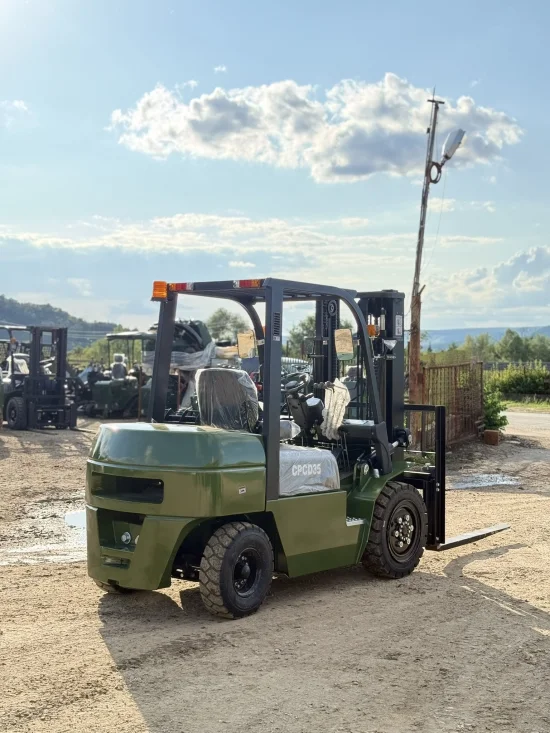

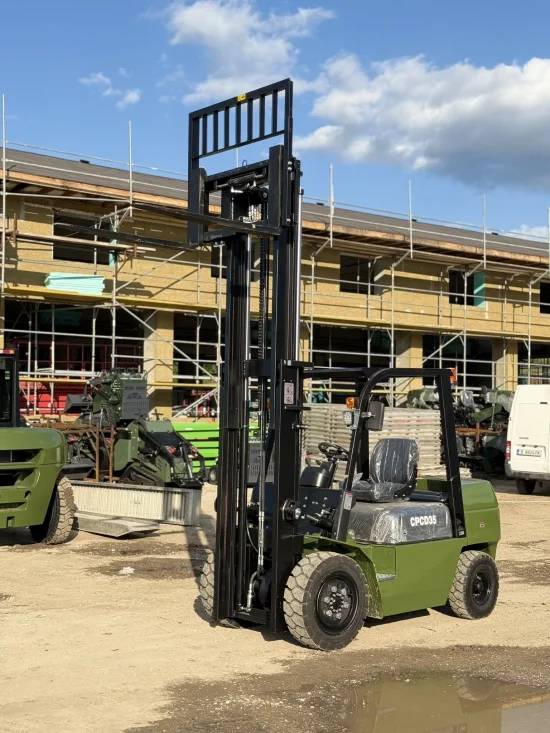

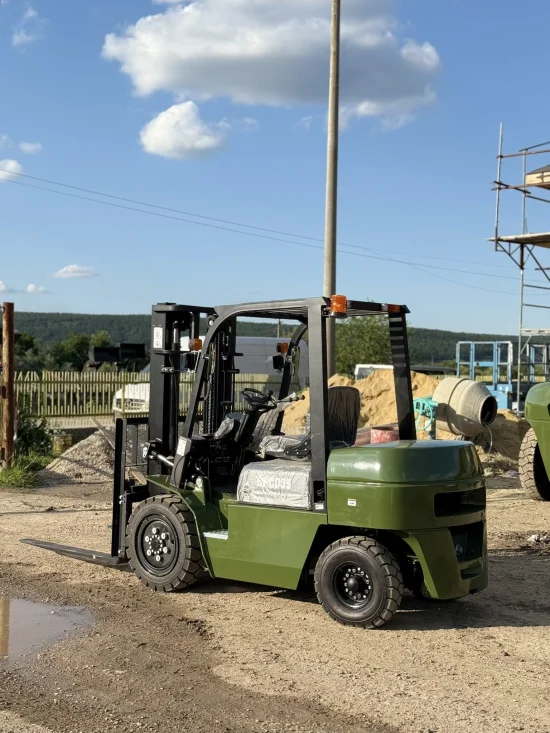

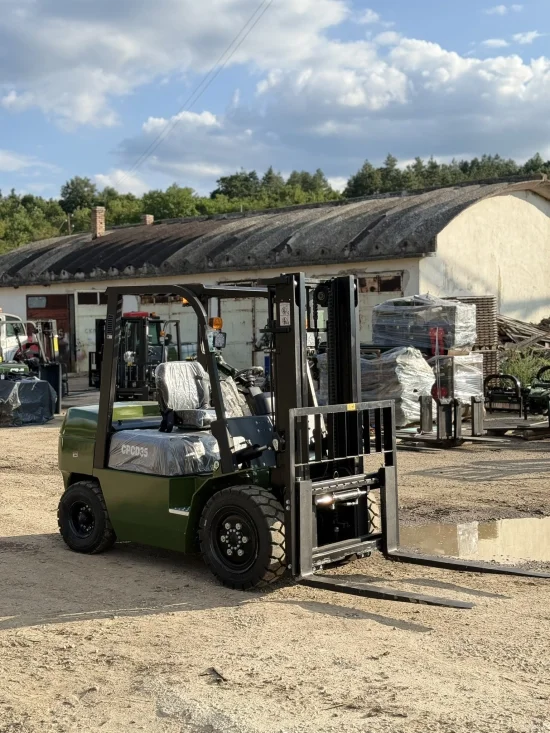

Müller F35 Diesel Forklift – 3.5 Tonnes

The Müller F35 is a robust and powerful diesel forklift with a lifting capacity of 3,500 kg, designed for daily and intensive operation. It is suitable for loading, unloading and moving heavy materials in warehouses, manufacturing facilities, logistics centres, agricultural sites and construction areas.

The forklift is powered by a four-cylinder Xinchai diesel engine with a displacement of 2.67 litres and an output of 54 hp. The engine provides the power required for handling heavy loads and delivers reliable performance during extended operation.

Hydraulic power steering ensures easy and precise manoeuvring. The robust chassis, stable construction and pneumatic tyres provide excellent stability and good performance on various types of terrain. The spacious operator area and good visibility of the mast and load contribute to safe and comfortable operation.

Technical Specifications

Model: Müller F35

Rated lifting capacity: 3,500 kg

Load centre: 500 mm

Engine: Four-cylinder Xinchai diesel engine

Engine displacement: 2.67 L

Power: 54 hp

Free lift height: 160 mm

Overall length with forks: 3,763 mm

Overall length without forks: 2,693 mm

Width: 1,225 mm

Overhead guard height: 2,090 mm

Wheelbase: 1,700 mm

Minimum ground clearance: 135 mm

Mast tilt angle, forward/backward: 6°/12°

Minimum turning radius: 2,420 mm

Minimum right-angle aisle width: 4,260 mm

Fork dimensions: 1,070 × 125 × 50 mm

Maximum travel speed with/without load: 19/19 km/h

Lifting speed with/without load: 330/370 mm/s

Gradeability with/without load: 15/20%

Operating weight: 4,500 kg

Tyres

Front tyres: 28×9–15–14PR

Rear tyres: 6.5–10–10PR

Key Advantages

• Four-cylinder Xinchai diesel engine delivering 54 hp

• Lifting capacity of up to 3.5 tonnes

• Robust construction for daily and intensive operation

• Hydraulic power steering

• Excellent stability when handling heavy loads

• Good manoeuvrability

• Pneumatic tyres suitable for various types of terrain

• Good visibility of the mast and load

• Spacious and comfortable operator area

• Easy maintenance and low operating costs
