Optional Equipment

All prices exclude VAT.

• Fork side shift – 1,500 EUR

• Solid tyres – 1,000 EUR

• Full Free Lift mast – 1,500 EUR

• Three-stage mast with a lifting height of 4.5 m – 3,000 EUR

• Three-stage mast with a lifting height of 5 m – 4,000 EUR

• Enclosed cab with air conditioning – 3,000 EUR

• Additional hydraulic line – 800 EUR

• 182 cm forks – 900 EUR

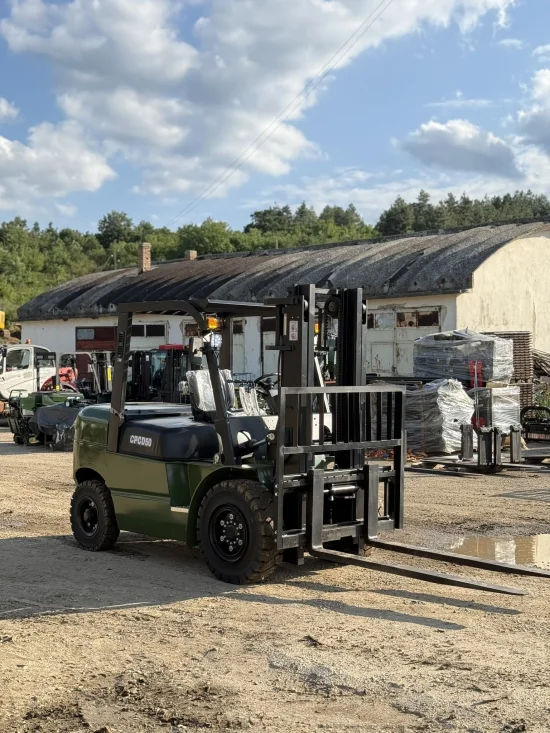

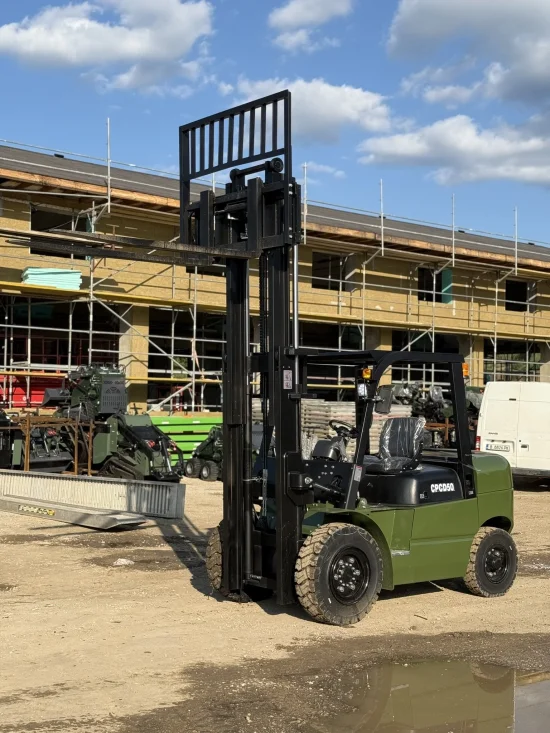

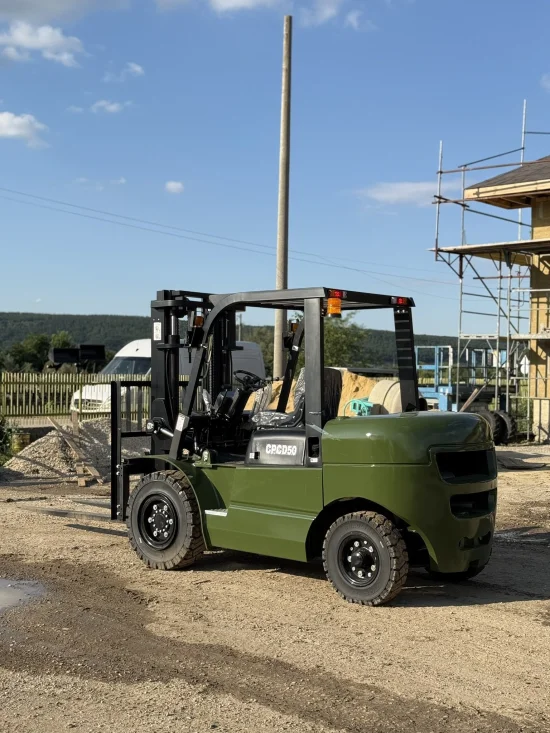

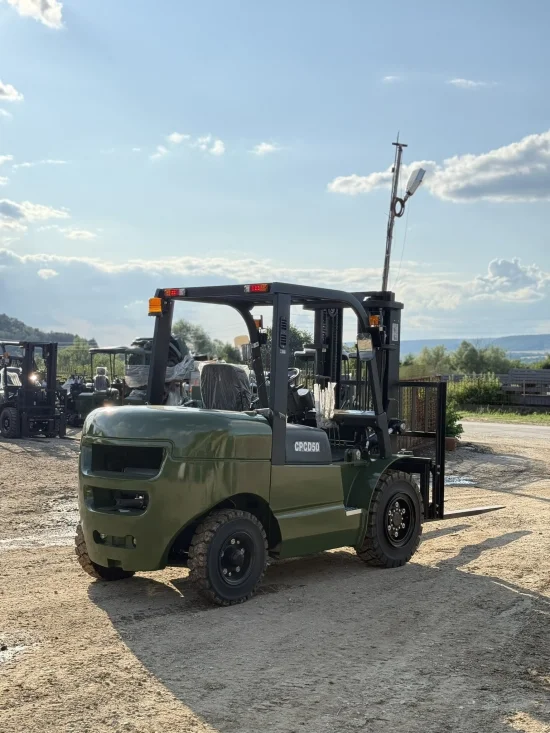

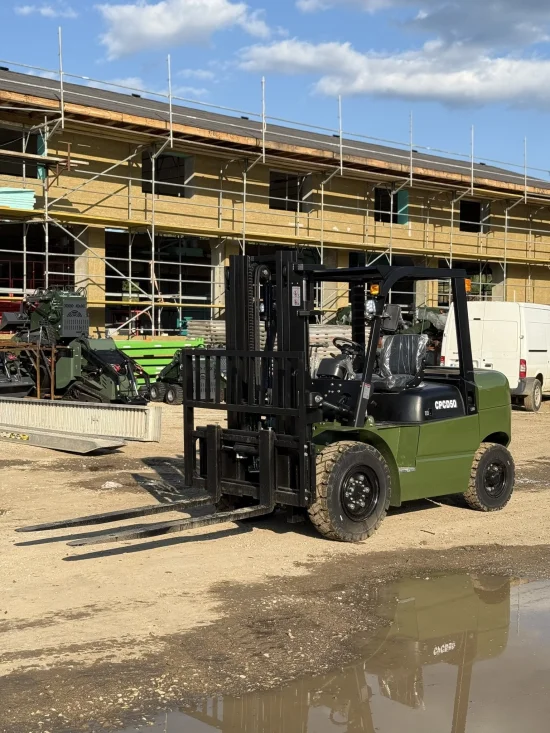

Müller F50 Diesel Forklift – 5 Tonnes

The Müller F50 is a powerful and extremely robust diesel forklift with a lifting capacity of 5,000 kg, designed for daily and intensive handling of heavy loads. It is suitable for warehouses, manufacturing facilities, logistics centres, construction sites, agricultural operations and other demanding working environments.

The forklift is powered by a Xinchai diesel engine with a displacement of 3.47 litres and an output of 82 hp. The engine delivers high performance, reliable operation and the power required for lifting and transporting loads of up to 5 tonnes.

Hydraulic power steering ensures easy and precise manoeuvring. The reinforced chassis, wide construction and pneumatic tyres provide excellent stability and good performance on various types of terrain. The spacious operator area and good visibility of the mast and load contribute to safe and comfortable operation.

Technical Specifications

Model: Müller F50

Rated lifting capacity: 5,000 kg

Load centre: 500 mm

Engine: Xinchai diesel engine

Engine displacement: 3.47 L

Power: 82 hp (60 kW)

Free lift height: 160 mm

Overall length with forks: 4,190 mm

Overall length without forks: 3,120 mm

Width: 1,480 mm

Overhead guard height: 2,240 mm

Wheelbase: 2,000 mm

Minimum ground clearance: 175 mm

Mast tilt angle, forward/backward: 6°/12°

Minimum turning radius: 2,900 mm

Minimum right-angle aisle width: 4,960 mm

Fork dimensions: 1,070 × 150 × 55 mm

Maximum travel speed with/without load: 18/19 km/h

Lifting speed with/without load: 400/380 mm/s

Gradeability with/without load: 15/20%

Operating weight: 6,700 kg

Tyres

Front tyres: 300–15–20PR

Rear tyres: 7.00–12–12PR

Key Advantages

• Xinchai diesel engine delivering 82 hp

• Lifting capacity of up to 5 tonnes

• Reinforced construction for intensive operation

• Hydraulic power steering

• Excellent stability when handling heavy loads

• Good manoeuvrability

• High ground clearance

• Pneumatic tyres suitable for various types of terrain

• Good visibility of the mast and load

• Spacious and comfortable operator area

• Easy maintenance and low operating costs
