Optional Equipment

All prices exclude VAT.

• Fork side shift – 1,000 EUR

• Solid tyres – 1,000 EUR

• Full Free Lift mast – 1,500 EUR

• Three-stage mast with a lifting height of 4.5 m – 2,000 EUR

• Three-stage mast with a lifting height of 6 m – 3,500 EUR

• Three-stage mast with a lifting height of 8 m – 5,000 EUR

• Enclosed cab with air conditioning – 3,000 EUR

• Additional hydraulic line – 800 EUR

• 152 cm forks – 600 EUR

• 167 cm forks – 700 EUR

• 182 cm forks – 800 EUR

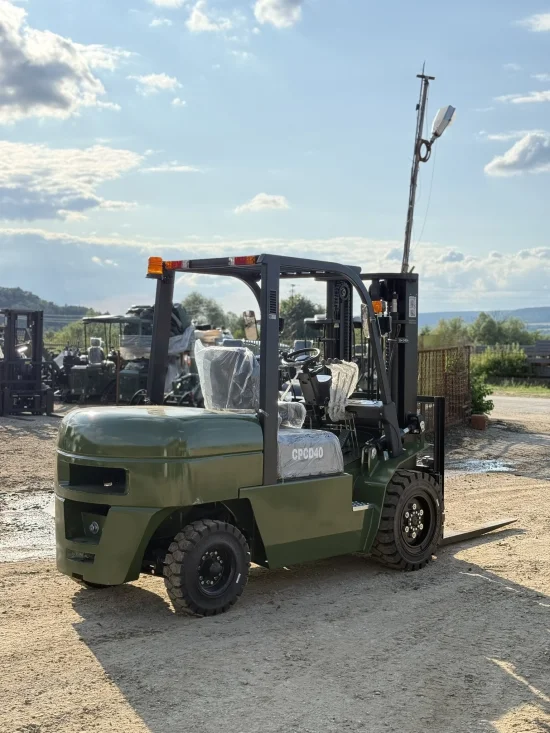

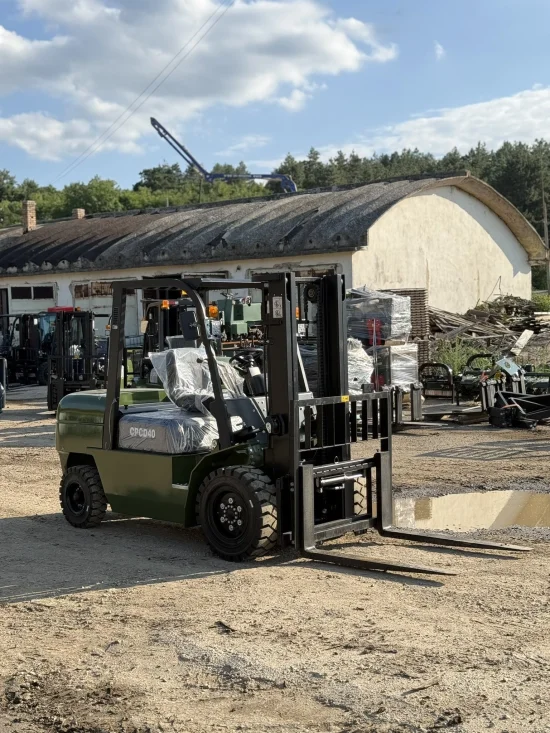

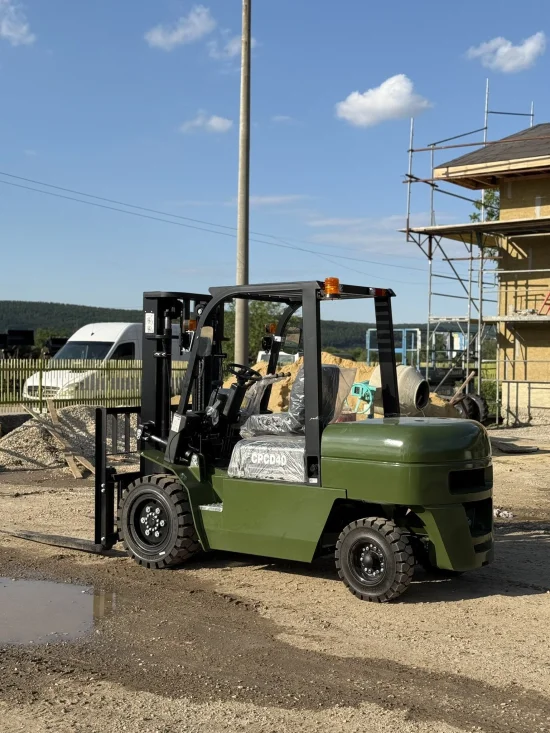

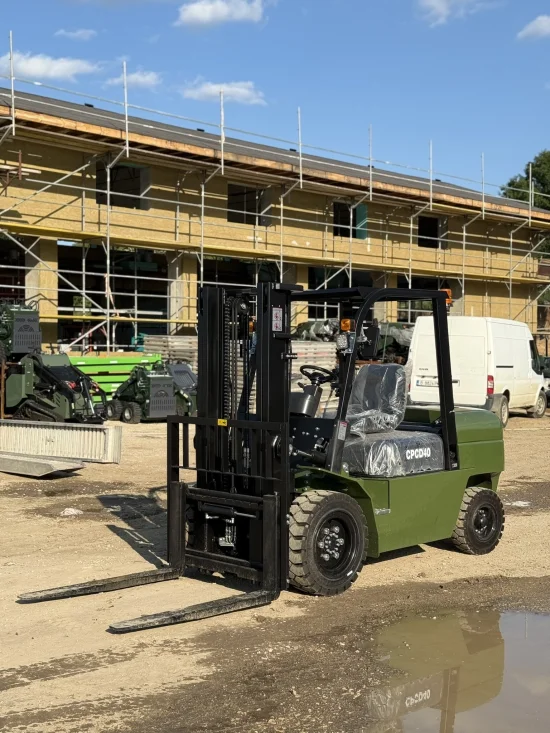

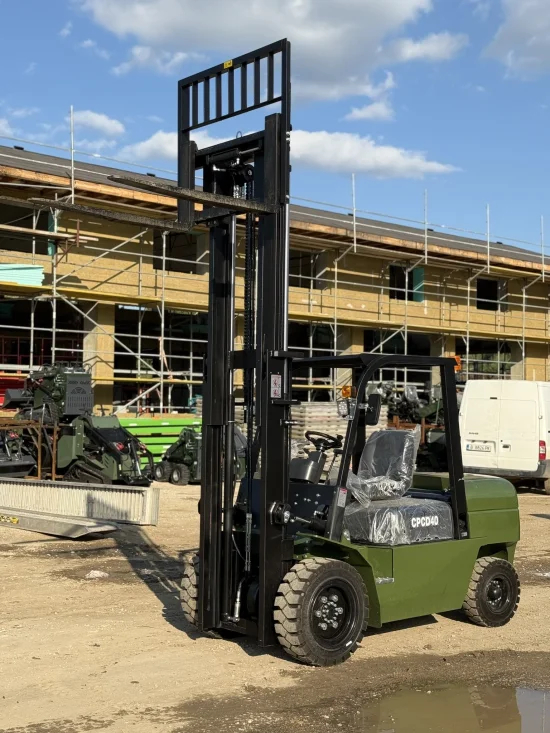

Müller F40 Diesel Forklift – 4 Tonnes

The Müller F40 is a powerful and robust diesel forklift with a lifting capacity of 4,000 kg, designed for daily and intensive handling of heavy loads. It is suitable for warehouses, manufacturing facilities, logistics centres, construction sites, agricultural operations and other demanding working environments.

The forklift is powered by a four-cylinder Xinchai diesel engine with a displacement of 2.98 litres and an output of 57 hp. The engine delivers high performance, reliable operation and the power required for lifting and transporting heavy loads.

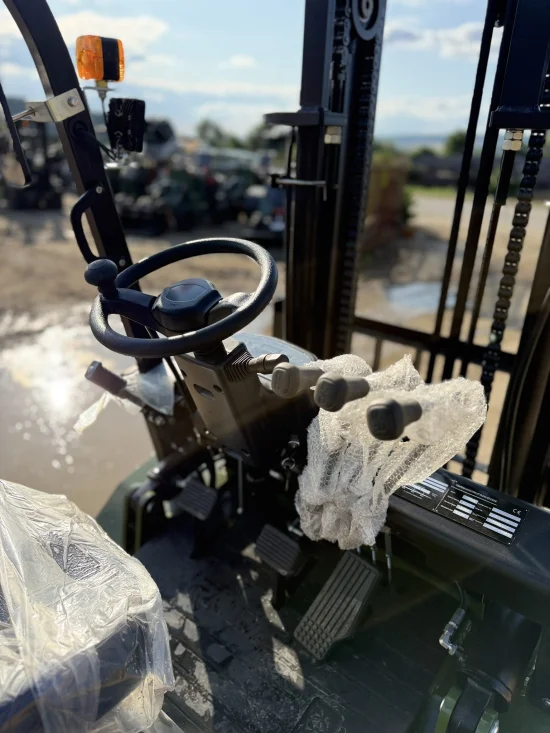

Hydraulic power steering ensures easy and precise manoeuvring. The reinforced chassis, wide construction and pneumatic tyres provide excellent stability and good performance on various types of terrain. The spacious operator area and good visibility of the mast and load contribute to safe and comfortable operation.

Technical Specifications

Model: Müller F40

Rated lifting capacity: 4,000 kg

Load centre: 500 mm

Engine: Four-cylinder Xinchai diesel engine

Engine displacement: 2.98 L

Power: 57 hp (42 kW)

Free lift height: 150 mm

Overall length with forks: 4,000 mm

Overall length without forks: 2,930 mm

Width: 1,290 mm

Overhead guard height: 2,180 mm

Wheelbase: 1,900 mm

Minimum ground clearance: 140 mm

Mast tilt angle, forward/backward: 6°/12°

Minimum turning radius: 2,710 mm

Minimum right-angle aisle width: 4,750 mm

Fork dimensions: 1,070 × 150 × 50 mm

Maximum travel speed with/without load: 19/19 km/h

Lifting speed with/without load: 340/380 mm/s

Gradeability with/without load: 15/20%

Operating weight: 4,950 kg

Tyres

Front tyres: 250–15–16PR

Rear tyres: 7.00–12–12PR

Key Advantages

• Four-cylinder Xinchai diesel engine delivering 57 hp

• Lifting capacity of up to 4 tonnes

• Reinforced construction for intensive operation

• Hydraulic power steering

• Excellent stability when handling heavy loads

• Good manoeuvrability

• High ground clearance

• Pneumatic tyres suitable for various types of terrain

• Good visibility of the mast and load

• Spacious and comfortable operator area

• Easy maintenance and low operating costs
