Description

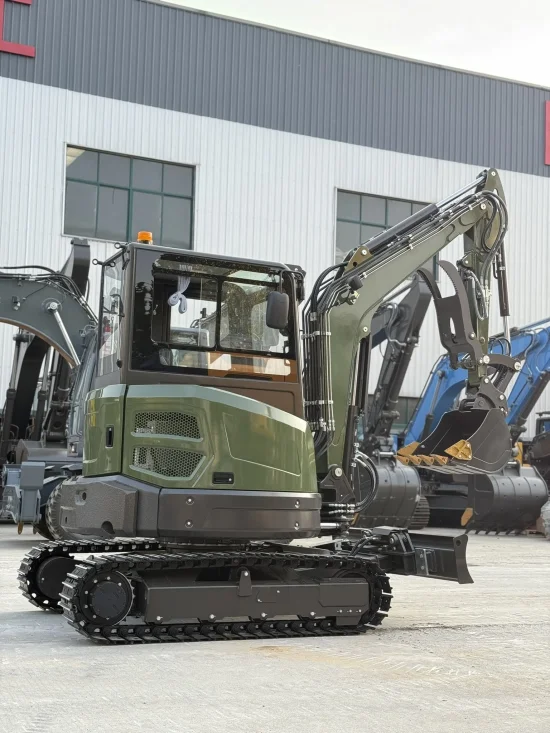

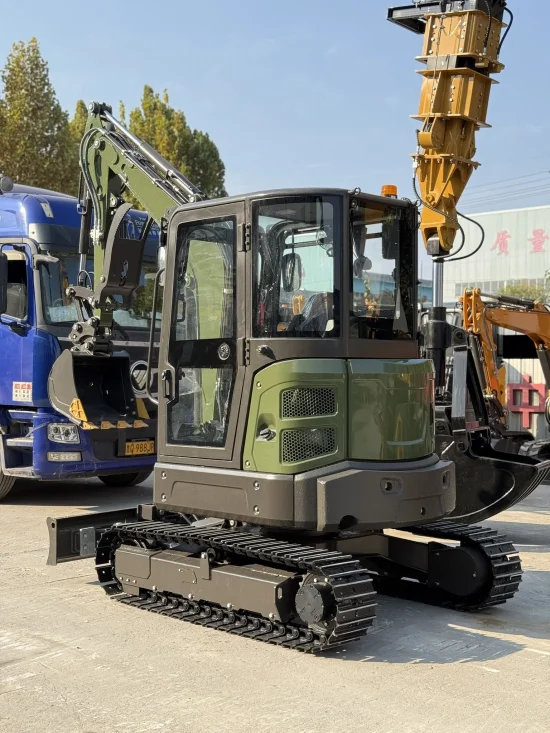

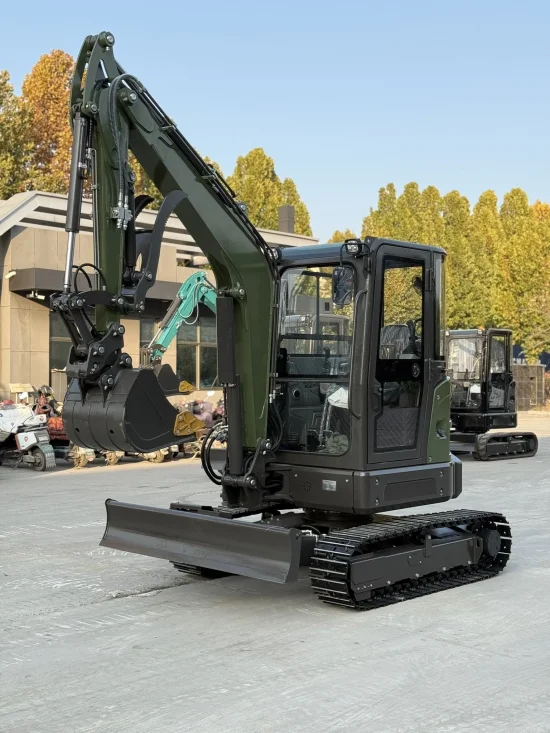

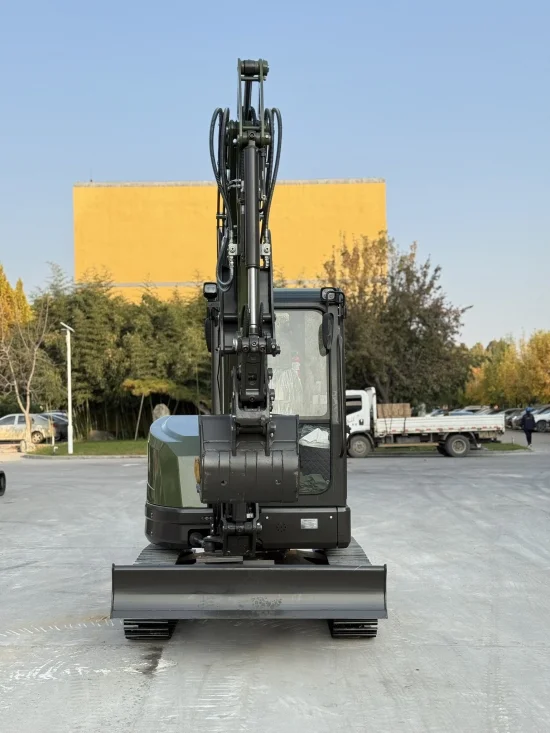

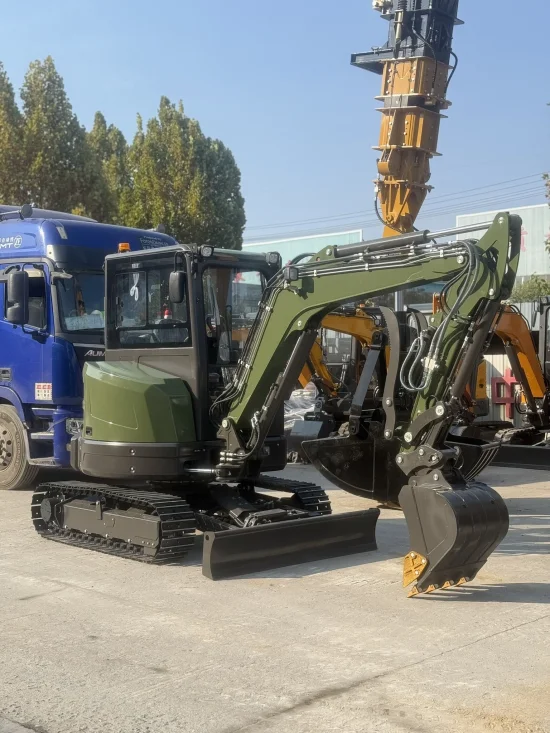

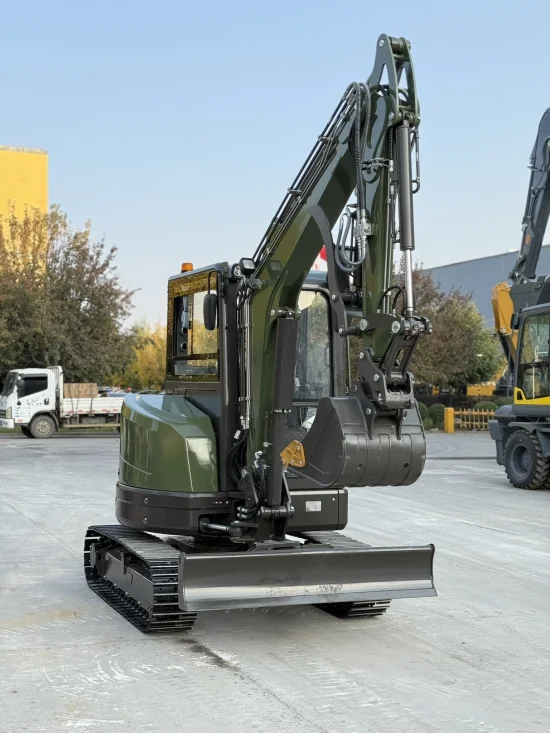

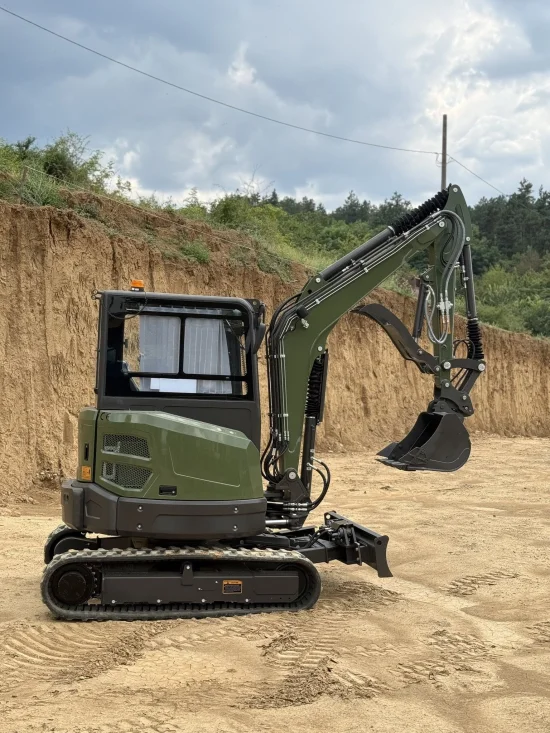

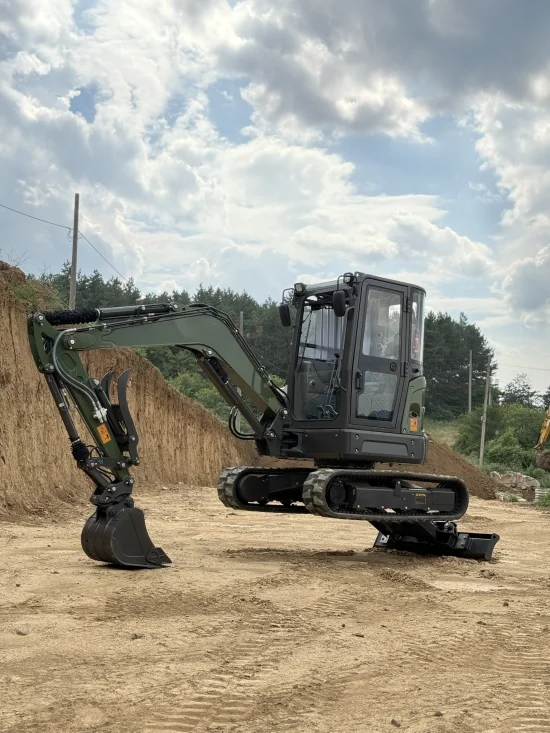

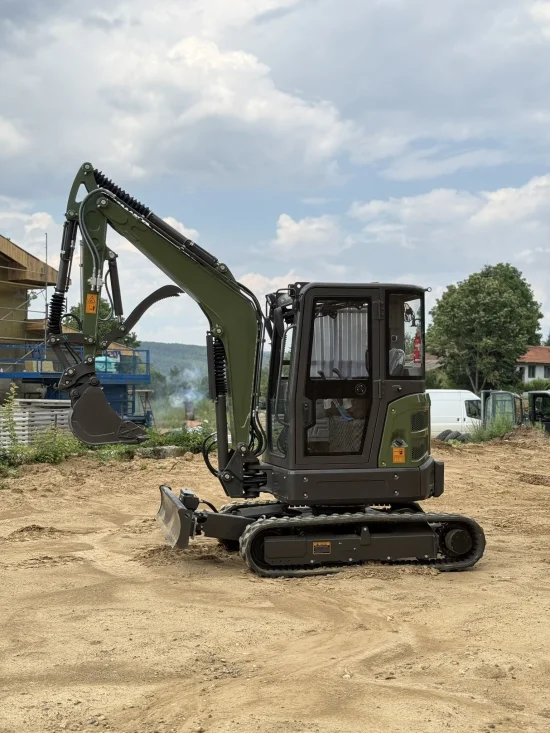

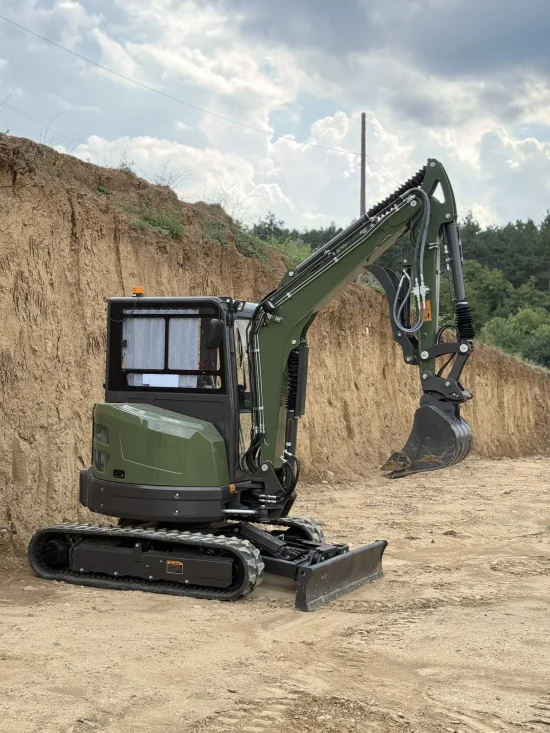

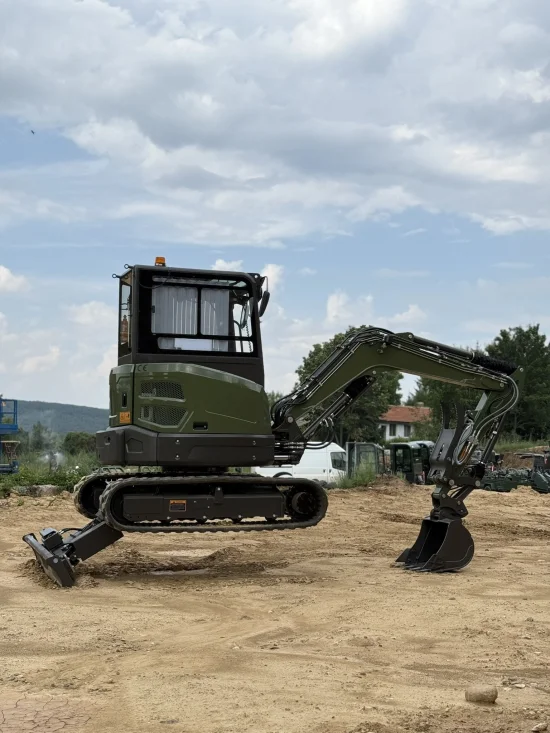

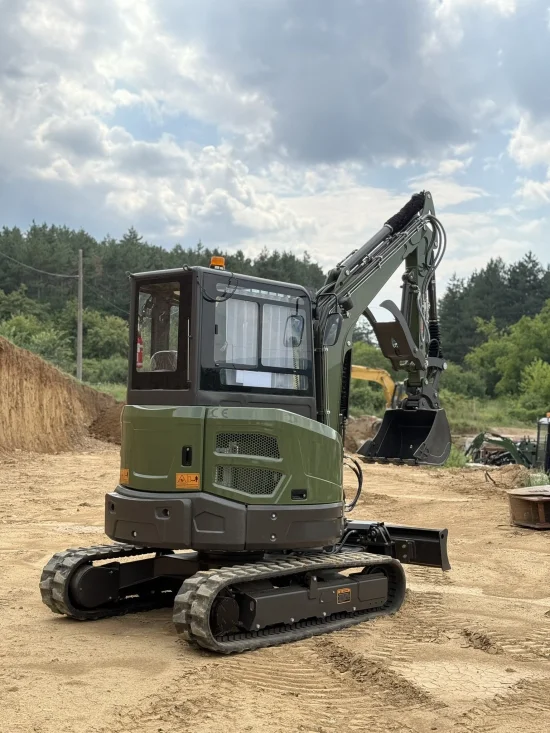

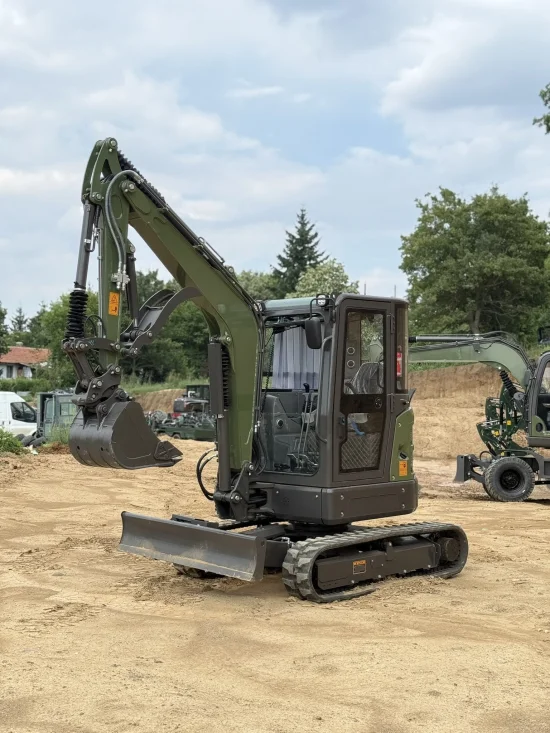

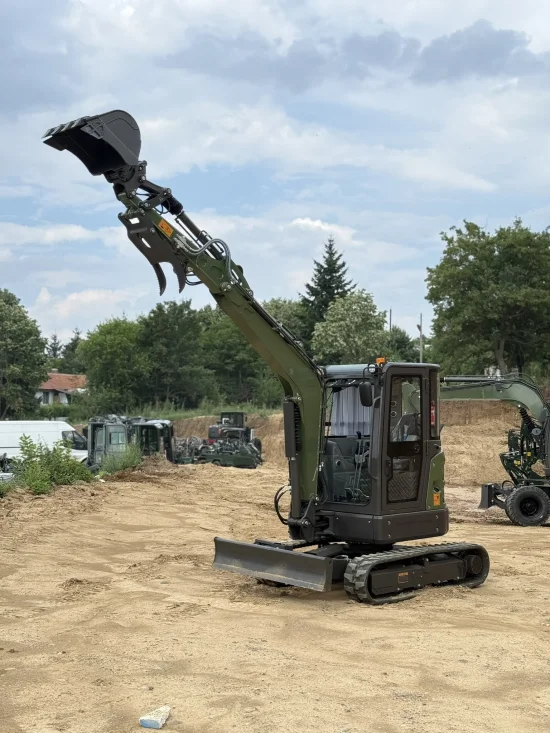

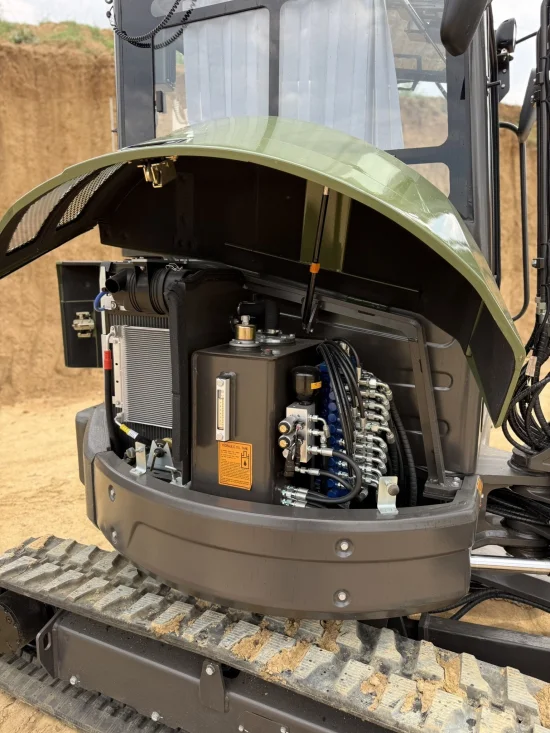

Müller E3.5 Pro is built for professionals who demand more from their machine.
With its compact design, smooth pilot control, and precise hydraulic response, this tracked excavator offers the perfect balance between power, control, and comfort.
The E3.5 Pro operates confidently in confined spaces, remains stable on uneven terrain, and reacts instantly to every movement of the joystick.
A machine designed to endure – efficient, economical, and ready for tough daily work.

Standard Equipment

• 3 buckets

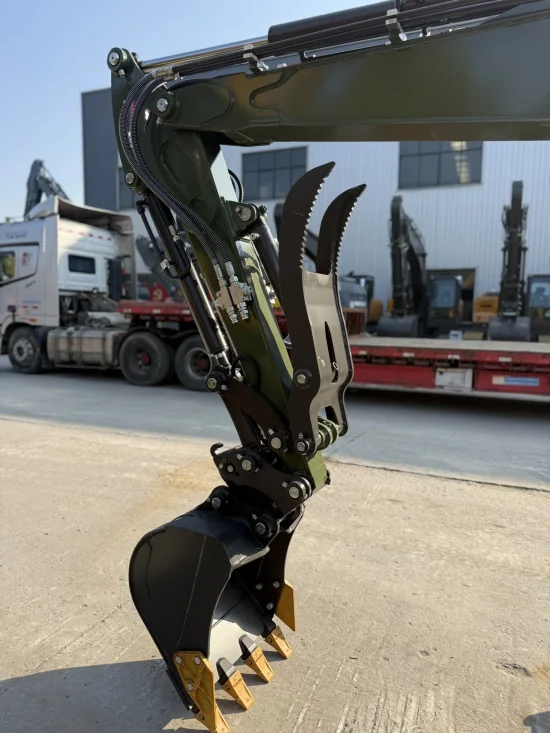

• Hydraulic grab for material handling

• Offset boom for working in tight spaces

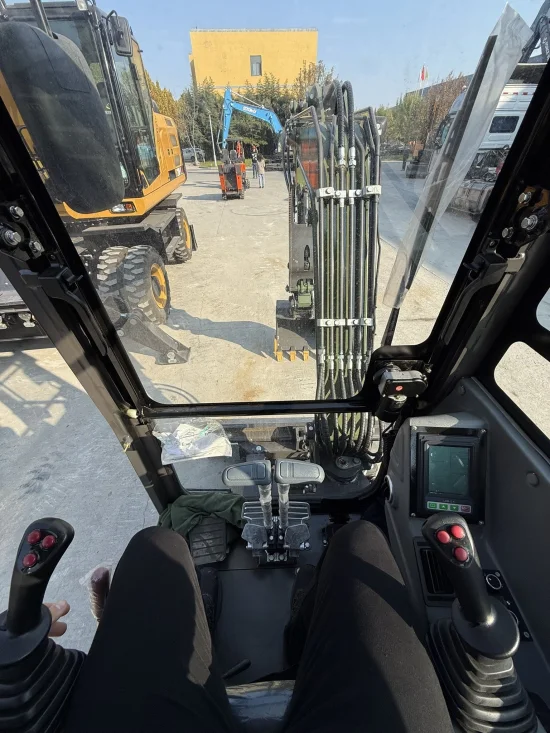

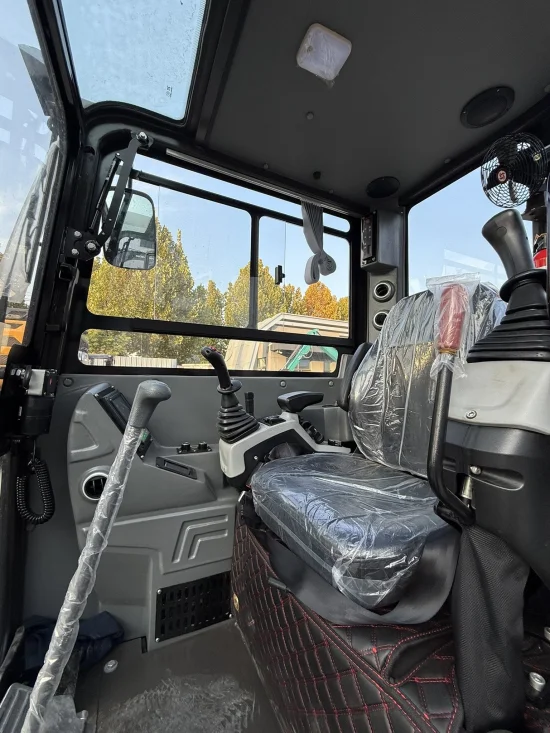

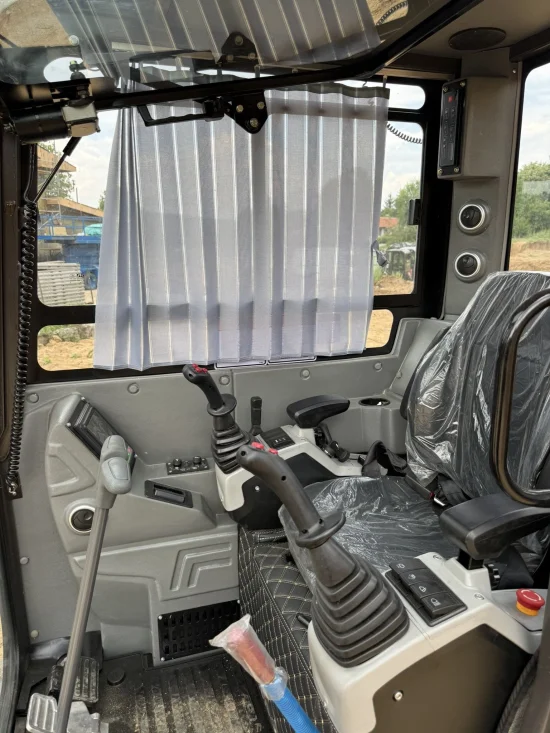

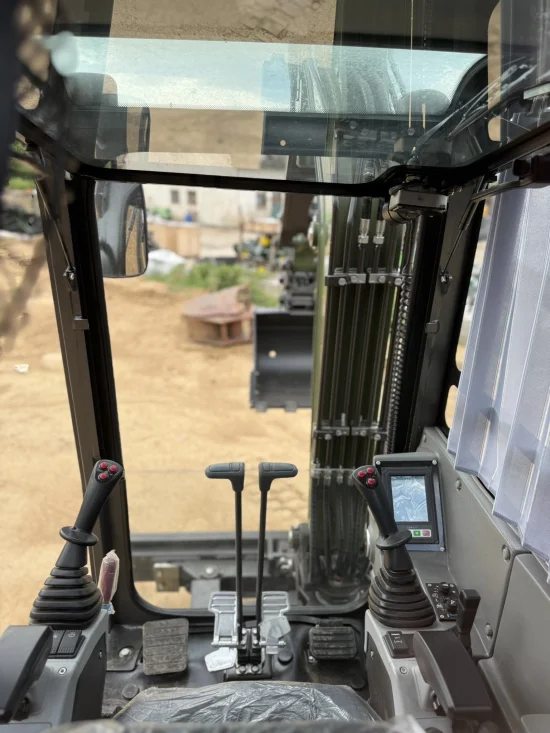

• Air conditioning in the cabin

• Track options: rubber or steel, according to customer preference

Optional Equipment

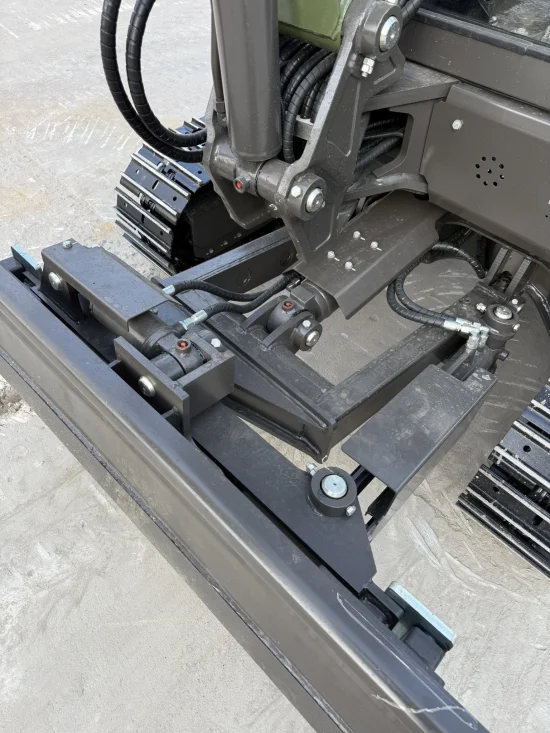

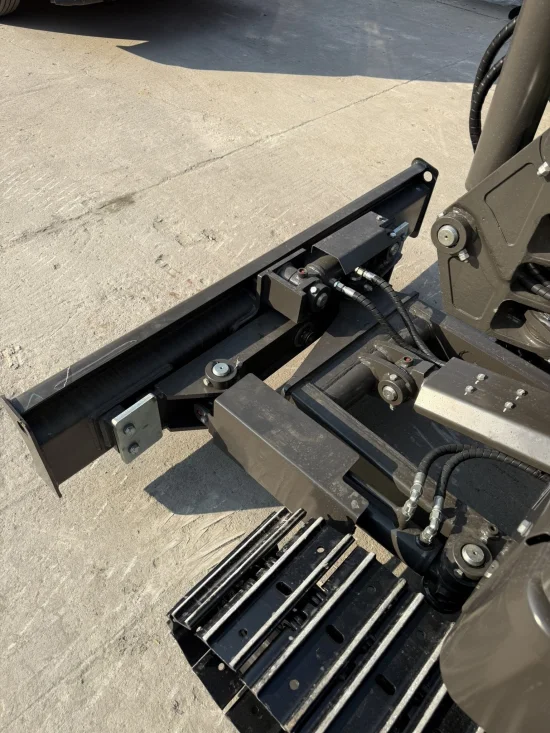

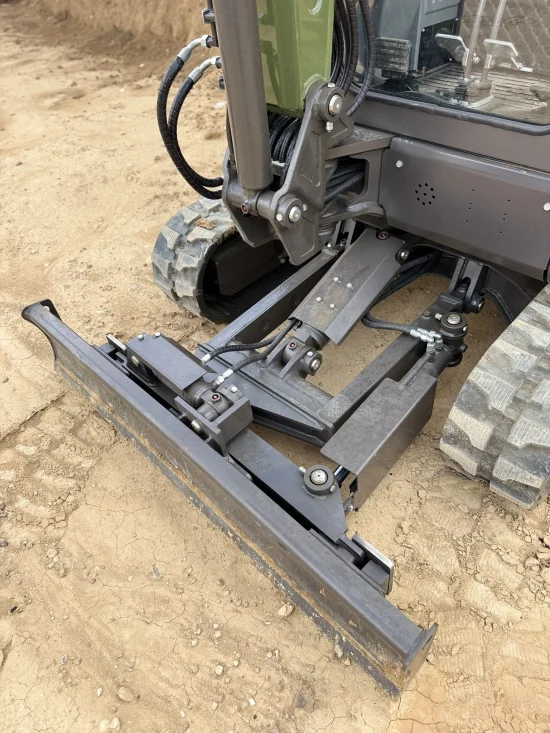

• 3-way dozer blade with three operating functions:

  • Raise and lower (standard up/down movement)

  • Tilt left and right for ground leveling

  • Angle adjustment (left or right) for side pushing – similar to snowplow operation

Technical Specifications

• Operating weight: 3700 kg

• Bucket capacity: 0.12 m³

• Slewing speed: 1 – 11 rpm

• Gradeability: 30°

• Max digging force (bucket): 30 kN

• Max digging force (arm): 18 kN

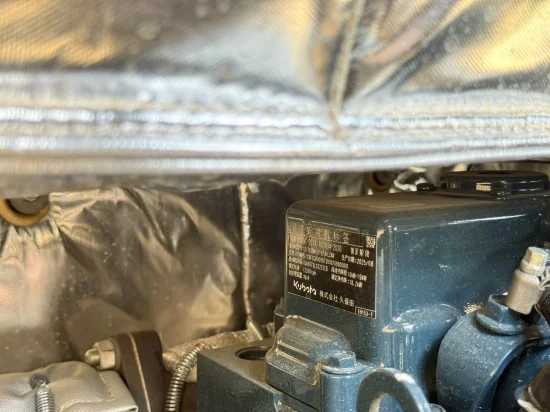

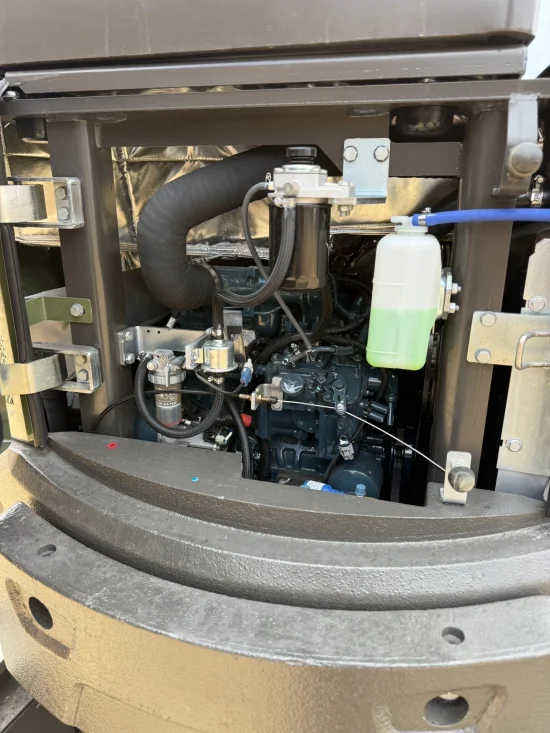

• Engine model: Kubota D1703

• Power / speed: 18.2 kW / 2200 rpm

• Hydraulic system type: Pilot control

• Working pressure: 22.5 MPa

Working Range

• Max digging height: 4800 mm

• Max dumping height: 3406 mm

• Max digging depth: 3208 mm

• Max vertical digging depth: 2957 mm

• Max digging radius: 5480 mm

• Min swing radius: 2530 mm

• Max dozer blade lifting height: 295 mm

• Max dozer blade cutting depth: 385 mm

Dimensions

• Transport length: 3700 mm

• Overall width: 1755 mm

• Overall height: 2525 mm

• Cabin height: 2290 mm

• Wheelbase: 1670 mm

• Track gauge: 1420 mm

• Ground clearance: 295 mm

• Tail swing radius: 870 mm
