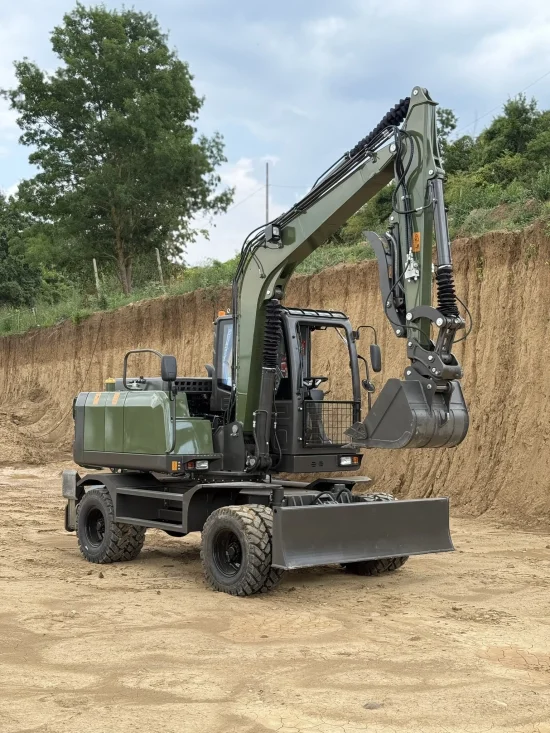

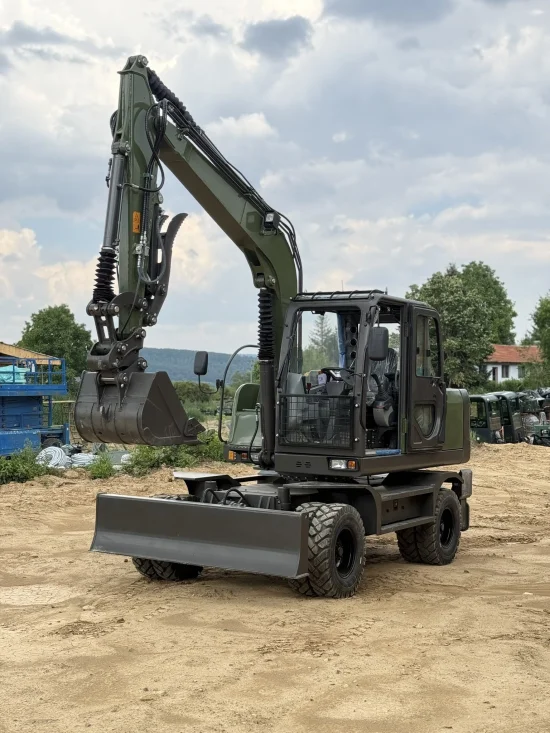

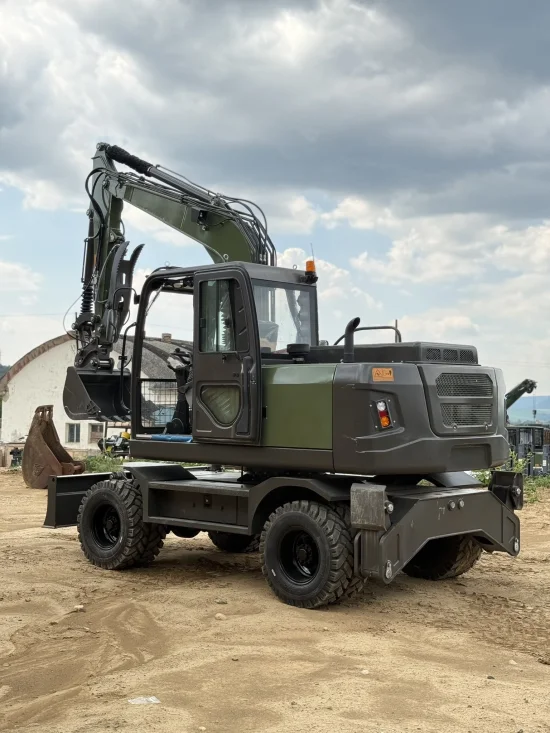

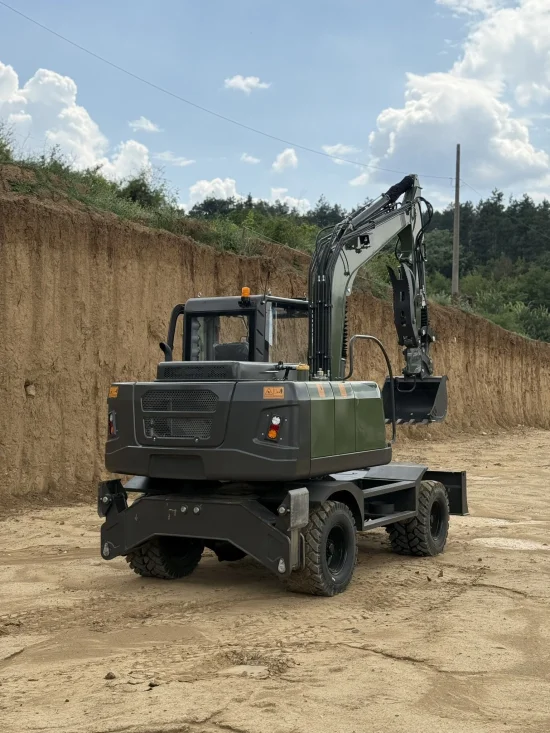

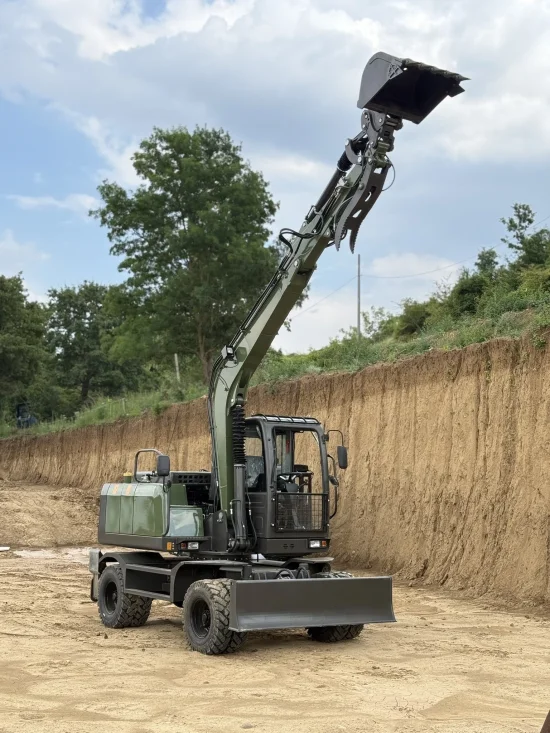

Müller E7.5W Wheeled Excavator

The Müller E7.5W is a professional wheeled excavator combining high performance, excellent mobility, and precise control. Its rubber tyres allow the machine to move quickly between different working areas, making it suitable for operation on asphalt, concrete, and other paved surfaces.

The powerful 6-cylinder Yuchai turbo-diesel engine, delivering 85 hp, and the hydraulic system with a working pressure of 24 MPa provide high digging power, smooth operation, and excellent machine control.

Its stable wheeled undercarriage, compact swing radius, and standard front dozer blade make the Müller E7.5W suitable for construction, excavation, utility repairs, road maintenance, material handling, and work in urban environments.

Standard Equipment

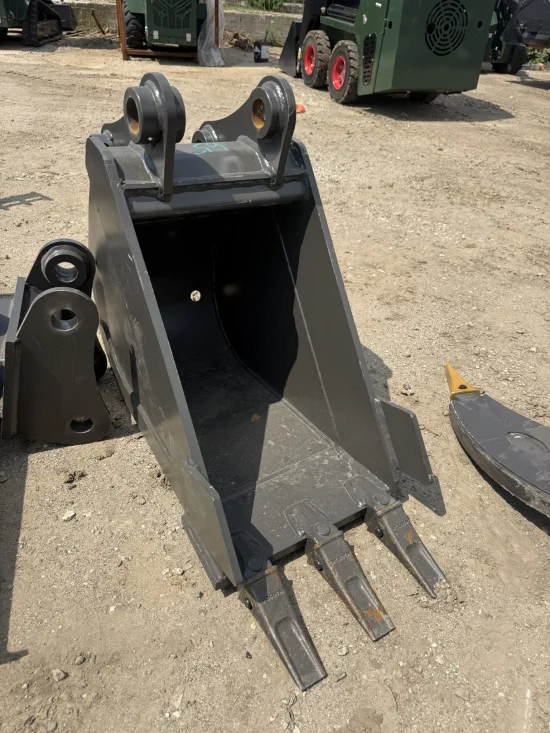

• 3 buckets

• Hydraulic thumb for gripping and handling materials

• Hydraulic quick coupler

• Front dozer blade

• Two pairs of auxiliary hydraulic lines

• Third dedicated hydraulic line for the hydraulic quick coupler

• 8.25-16 tyres

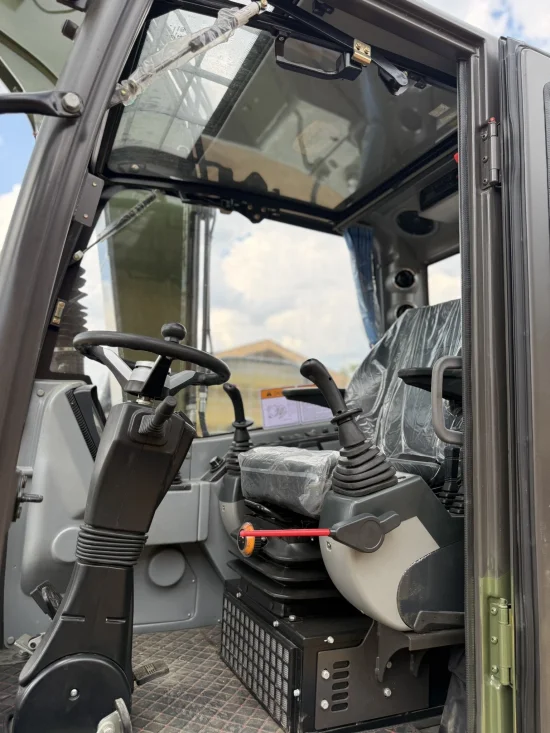

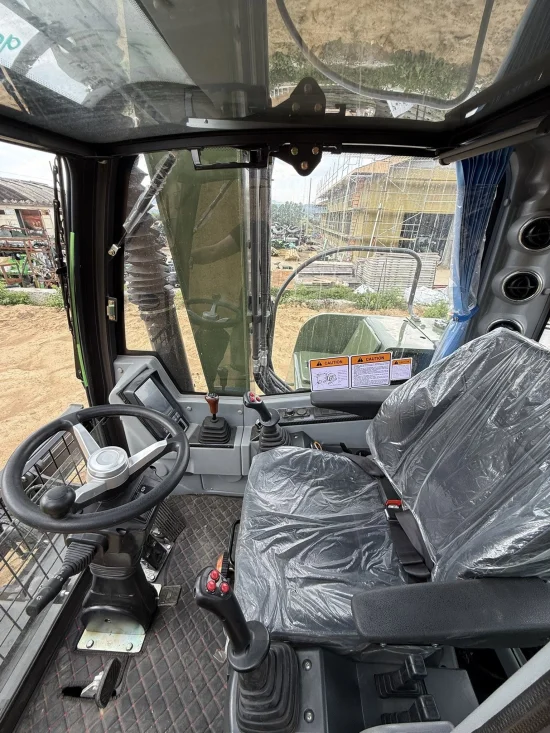

• Air conditioning in the cabin

Hydraulic Lines

The Müller E7.5W is equipped with two pairs of auxiliary hydraulic lines and a third dedicated line for operating the hydraulic quick coupler.

This configuration allows the standard hydraulic thumb to be used together with an additional hydraulic attachment. If the standard thumb is removed, another attachment—such as a 360° rotating hydraulic grapple—can be installed while the hydraulic quick coupler remains fully operational.

Optional Equipment

• Two rear stabiliser legs – €2,000 excl. VAT

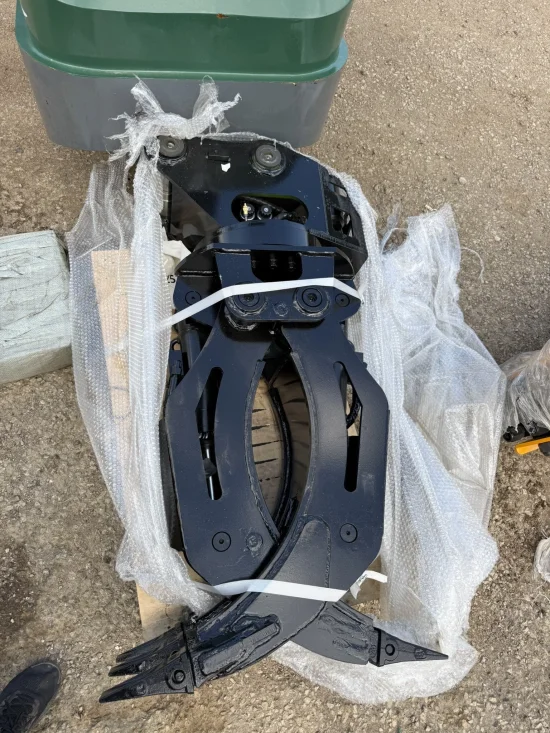

• 360° rotating hydraulic grapple – €3,000 excl. VAT

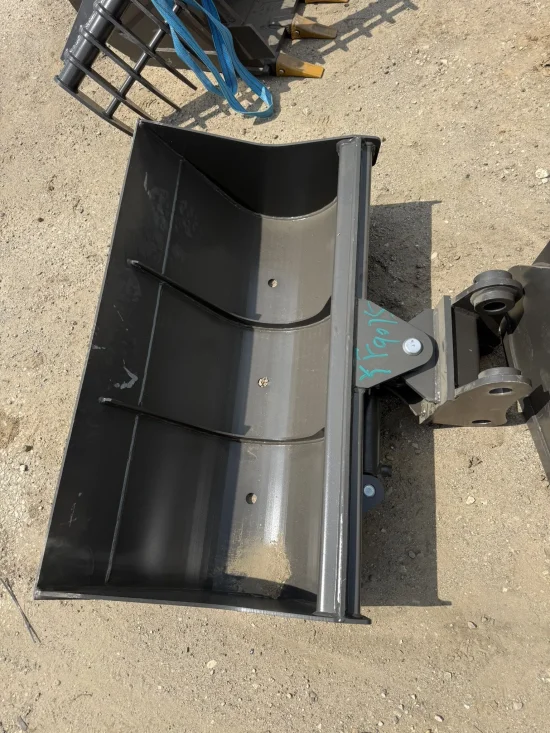

• 1,200 mm hydraulic tilting grading bucket – €2,000 excl. VAT

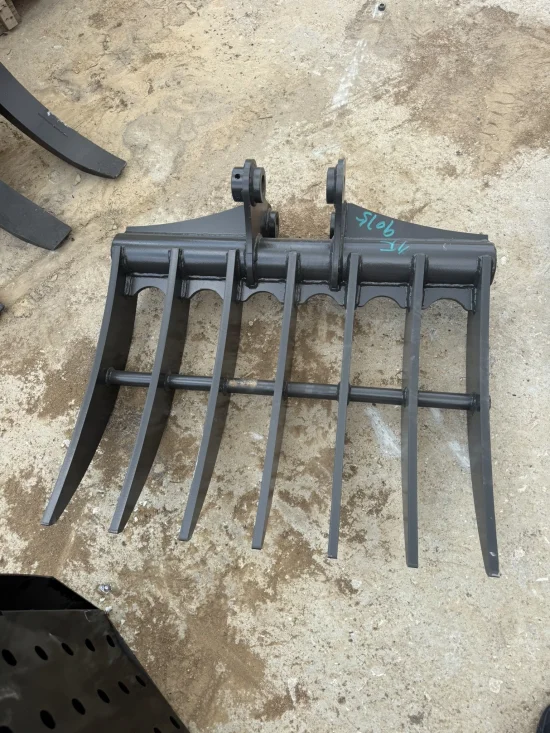

• Excavator rake – €1,000 excl. VAT

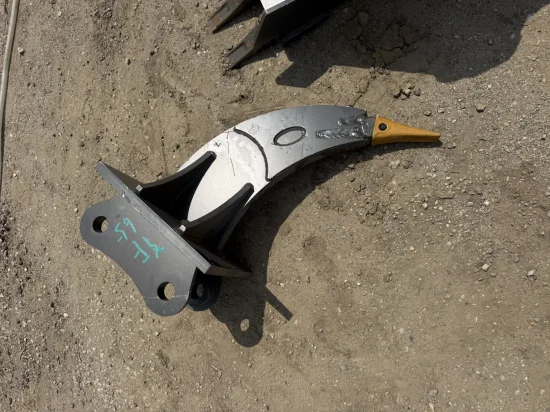

• Hydraulic ripper – €700 excl. VAT

Technical Specifications

• Bucket capacity: 0.3 m³

• Swing speed: 0–12 rpm

• Gradeability: 25°

• Maximum bucket digging force: 45 kN

• Maximum arm digging force: 36 kN

• Engine: Yuchai YC4DK85-T302

• Engine type: 6-cylinder, inline, water-cooled turbo-diesel

• Power: 85 hp at 2,200 rpm

• Hydraulic system working pressure: 24 MPa

• Maximum hydraulic system flow: 175 L/min

• Tyre size: 8.25-16



Working Range

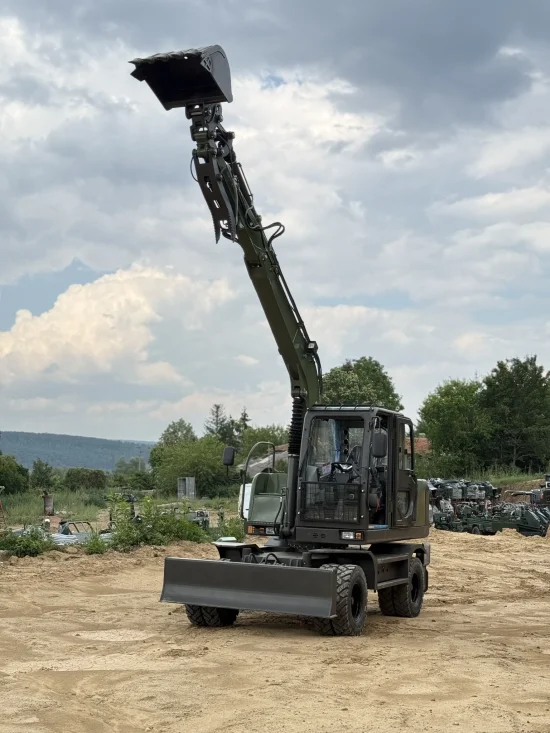

• Maximum digging height: 6,297 mm

• Maximum dumping height: 4,677 mm

• Maximum digging depth: 3,612 mm

• Maximum vertical digging depth: 2,460 mm

• Maximum digging radius: 6,248 mm

• Minimum swing radius: 2,347 mm

• Maximum dozer blade lifting height: 310 mm

• Maximum dozer blade cutting depth: 132 mm

Dimensions

• Transport length: 6,260 mm

• Overall width: 2,044 mm

• Overall height: 2,816 mm

• Cabin height: 2,816 mm

• Wheelbase: 2,400 mm

• Wheel track: 1,536 mm

• Ground clearance: 354 mm

• Tail swing radius: 2,000 mm
