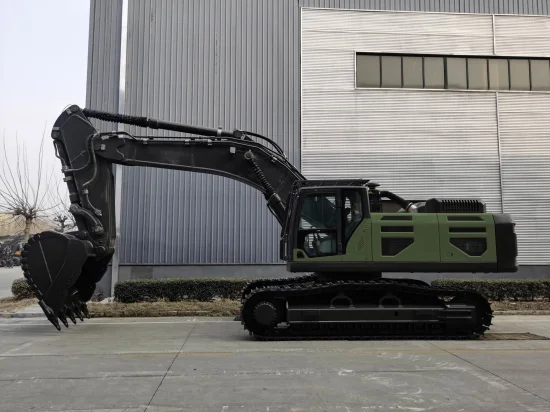

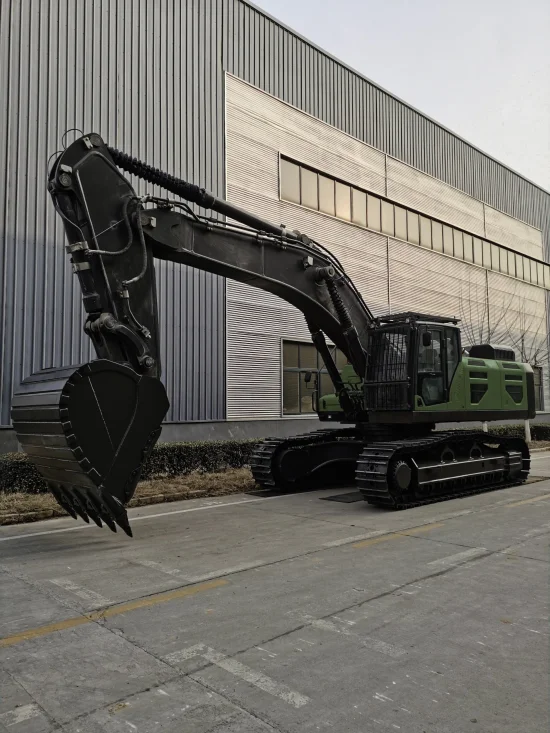

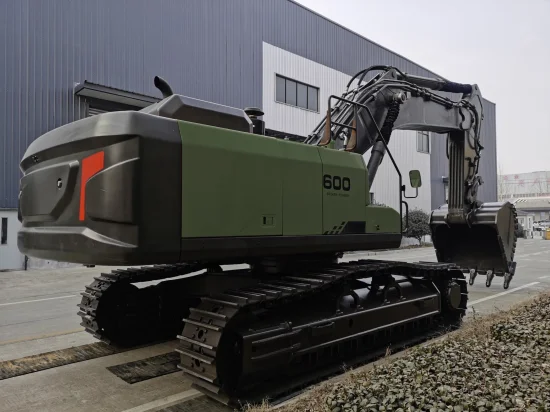

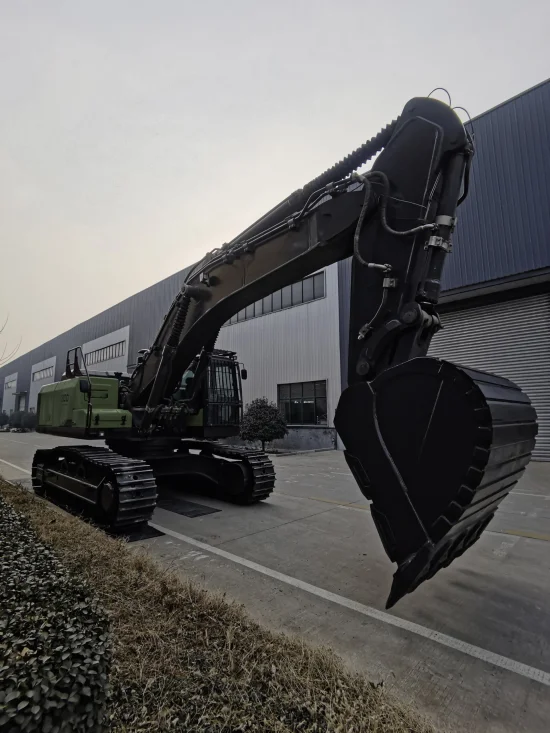

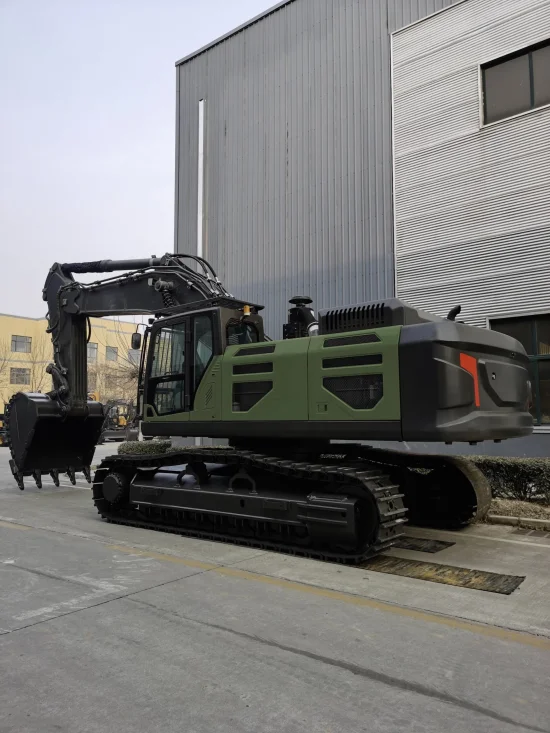

Müller E60.0 – 60-Ton Excavator for Extreme Power, Quarry Work and Heavy-Duty Productivity

The Müller E60.0 is a 60-ton heavy-duty hydraulic excavator engineered for the most demanding applications — quarry operations, mining environments, large infrastructure projects, and high-volume earthmoving. Equipped with a massive 3.0 m³ bucket, a reinforced undercarriage, and a powerful Cummins QSM11 engine – 288 kW (≈392 hp), this machine delivers exceptional breakout force, stability, and long-term durability under extreme workloads.

With an impressive bucket digging force of 325 kN and a hydraulic system working at 35 MPa, the E60.0 ensures fast cycle times, high material output per hour, and outstanding operational efficiency. The robust frame, heavy-duty components, and optimized hydraulic system make this model ideal for continuous, high-stress environments.

The spacious operator cabin provides superior visibility, intuitive controls, and excellent ergonomics, ensuring comfort even during long working shifts. Müller E60.0 combines raw power, durability, and precision, offering a reliable solution for professional contractors and mining operations.

Technical Specifications – Müller E60.0

Performance

• Bucket Capacity: 3.0 m³

• Swing Speed: 0–11 rpm

• Gradeability: 35°

• Max. Digging Force – Bucket: 325 kN

• Max. Digging Force – Arm: 253 kN

Engine

• Model: Cummins QSM11

• Power / Speed: 288 kW (≈392 hp) @ 2000 rpm

• Type: 6-cylinder turbo-diesel with intercooler

Hydraulic System

• System Pressure: 35 MPa

• Pump Type: High-flow axial piston pumps

• Design: Optimized for heavy-duty cycle work and large material volumes

Working Range

• Max. Digging Height: 11,142 mm

• Max. Dumping Height: 7,779 mm

• Max. Digging Depth: 5,756 mm

• Max. Vertical Digging Depth: 5,064 mm

• Max. Digging Radius: 10,726 mm

• Min. Swing Radius: 4,390 mm

Dimensions

• Overall Dimensions (L × W × H): 11,691 × 3,360 × 3,810 mm

• Cabin Height: 3,309 mm

• Sprocket to Idler Distance: 2,760 mm

• Axle Distance: 4,621 mm

• Ground Clearance: 602 mm

• Tail Swing Radius: 3,760 mm

Key Advantages of Müller E60.0

• Large 3.0 m³ bucket ideal for quarry and high-volume excavation

• Powerful Cummins QSM11 engine with high torque output

• Extremely high digging force — up to 325 kN

• Reinforced undercarriage and superstructure for heavy-duty use

• Precise hydraulic response with fast cycle times

• Comfortable operator cabin with excellent visibility
