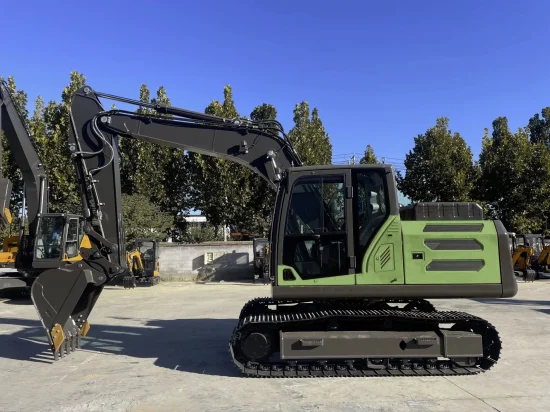

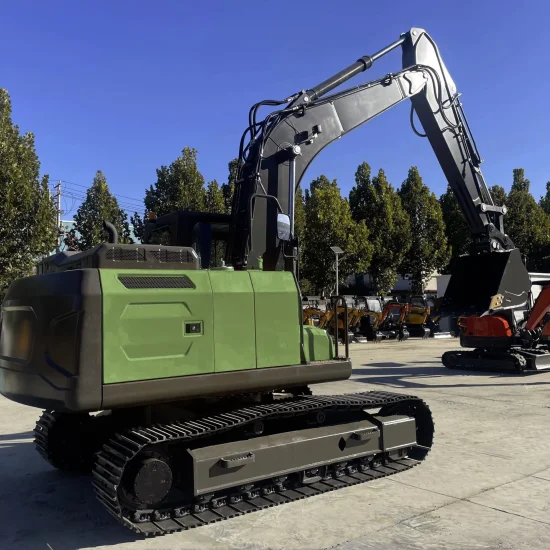

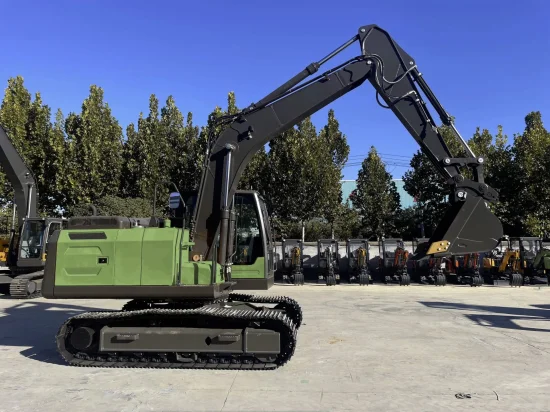

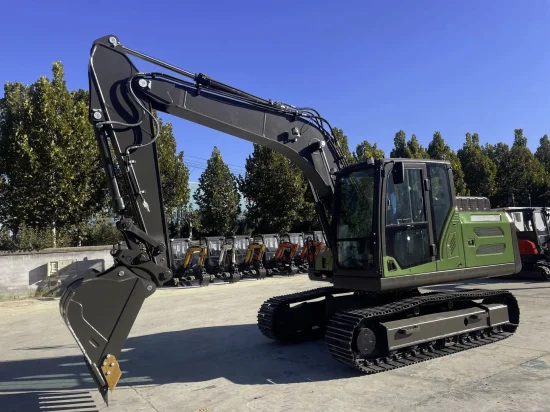

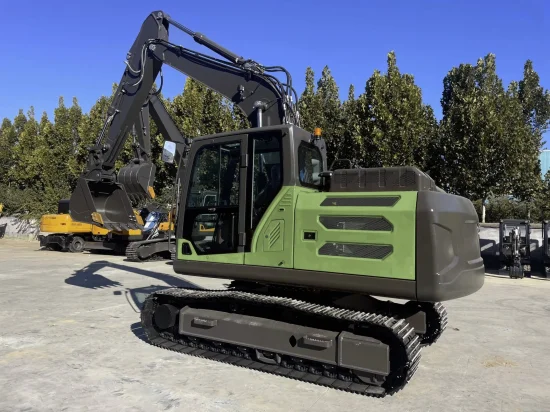

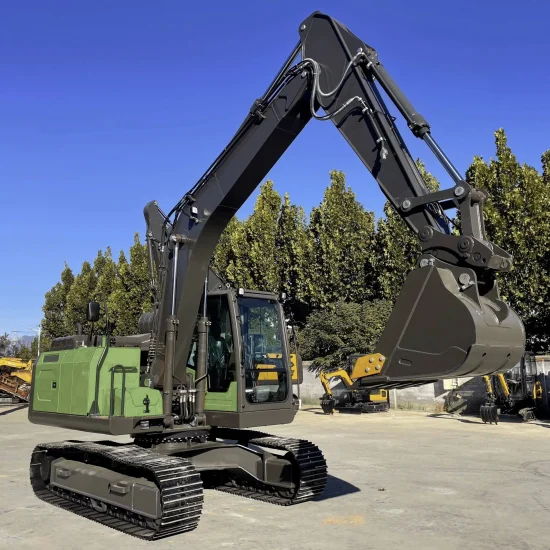

Müller E14.0 – 14-ton Excavator with High Performance and Premium Configuration

The Müller E14.0 is engineered for heavy-duty applications, combining a reinforced structure, fast hydraulic response, and exceptional stability. The machine delivers precise control, high efficiency, and outstanding reliability in all working conditions.

Similar to leading global brands in this class, the E14.0 stands out with high productivity in cyclical operations, optimized boom and bucket movement speeds, and a perfect balance between power and precision. The reinforced chassis, long track frame, and wide ground contact ensure stability during digging, lifting, and work on uneven terrain.

Standard Equipment

• 3 buckets – different sizes for versatile applications

• Hydraulic grab for material handling – increases machine versatility

• Air conditioning – ensures comfort and efficiency during long working hours

Main Technical Specifications

Bucket capacity: 0.6 m³
Swing speed: 0–12 rpm
Gradeability: 30°
Max. digging force (bucket): 91 kN
Max. digging force (arm): 55 kN
Engine model: YC4D125
Power / speed: 123 HP / 2200 rpm
System pressure: 32 MPa
Track shoe width: 500 mm
Fuel tank: 250 L
Hydraulic tank: 160 L

Working Range

Max. digging height: 8627 mm
Max. dumping height: 6025 mm
Max. digging depth: 5343 mm
Max. vertical digging depth: 4790 mm
Max. digging radius: 8198 mm
Minimum swing radius: 2770 mm

Dimensions

Overall dimensions (L×W×H): 7737 × 2500 × 2847 mm
Cabin height: 2847 mm
Sprocket-to-idler distance: 2950 mm
Track gauge / wheelbase: 2000 mm
Ground clearance: 400 mm
Tail swing radius: 2340 mm
