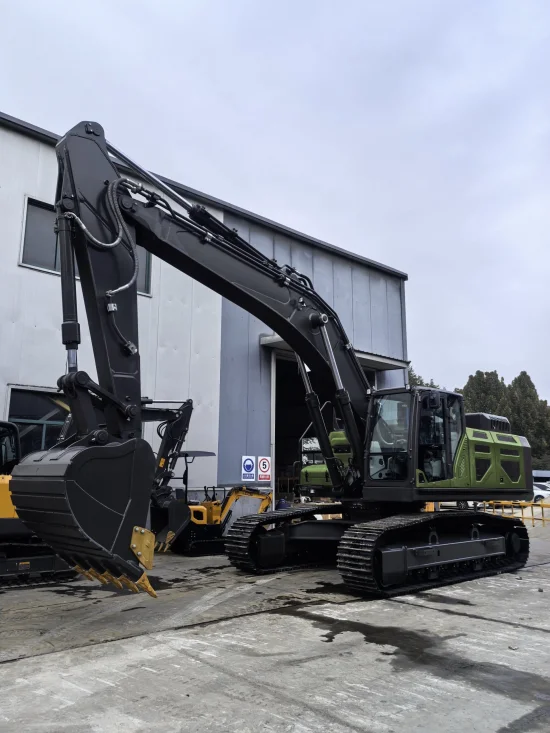

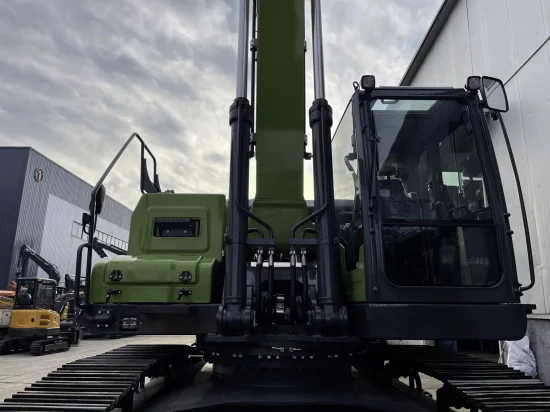

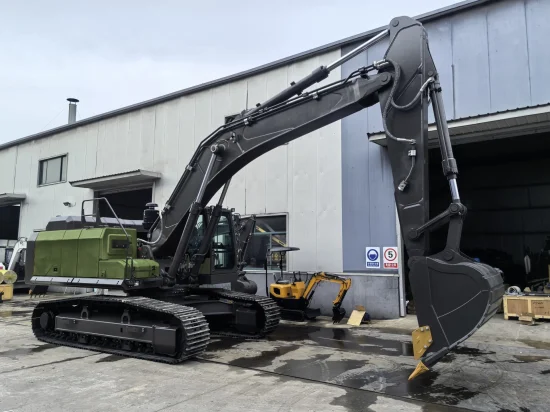

Müller E38.0 – 38-ton Excavator for Maximum Power, Depth and Productivity

The Müller E38.0 is a high-performance 38-ton hydraulic excavator engineered for the most demanding construction, mining, and infrastructure applications. Equipped with a large 1.7 m³ bucket, a reinforced undercarriage, and a powerful Cummins 6CTA8.9 engine – 219 kW (≈298 hp), this machine delivers exceptional digging force, stability, and reliability in heavy-duty environments.

The hydraulic system operating at 35 MPa ensures fast, smooth and precise movement, enabling maximum efficiency in cycle operations. The spacious, ergonomic cabin provides excellent visibility and operator comfort, making the E38.0 the ideal choice for companies seeking maximum power, durability, and low operating cost per hour.

Technical Specifications – Müller E38.0

Performance

• Bucket Capacity: 1.7 m³

• Swing Speed: 0–11 rpm

• Gradeability: 35°

• Max. Digging Force – Bucket: 244 kN

• Max. Digging Force – Arm: 200 kN

Engine

• Model: Cummins 6CTA8.9

• Power: 219 kW (≈298 hp) @ 1900 rpm

• Type: 6-cylinder turbo-diesel

Hydraulic System

• System Pressure: 35 MPa

• Pump Type: High-flow axial piston pumps

Working Range

• Max. Digging Height: 10,511 mm

• Max. Dumping Height: 7,572 mm

• Max. Digging Depth: 7,327 mm

• Max. Vertical Digging Depth: 6,731 mm

• Max. Digging Radius: 11,178 mm

• Min. Swing Radius: 3,865 mm

Dimensions

• Overall Dimensions (L × W × H): 11,285 × 3,200 × 3,664 mm

• Cabin Height: 3,168 mm

• Track Gauge: 2,590 mm

• Wheelbase: 4,099 mm

• Ground Clearance: 536 mm

• Tail Swing Radius: 3,590 mm
