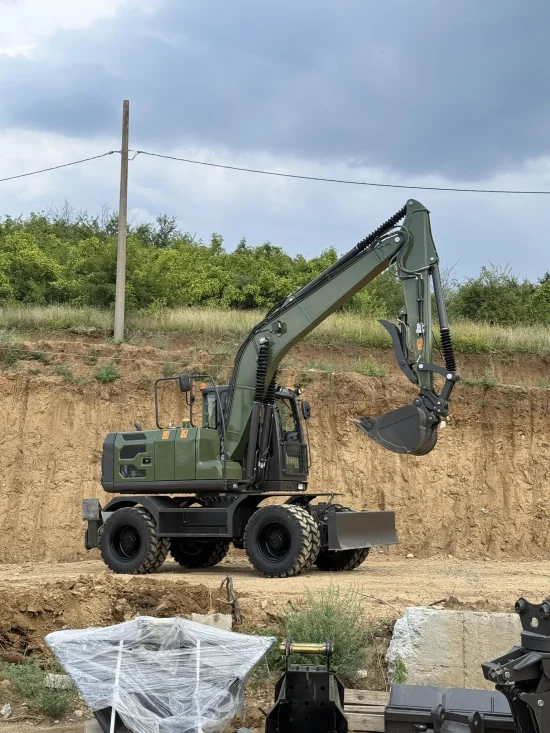

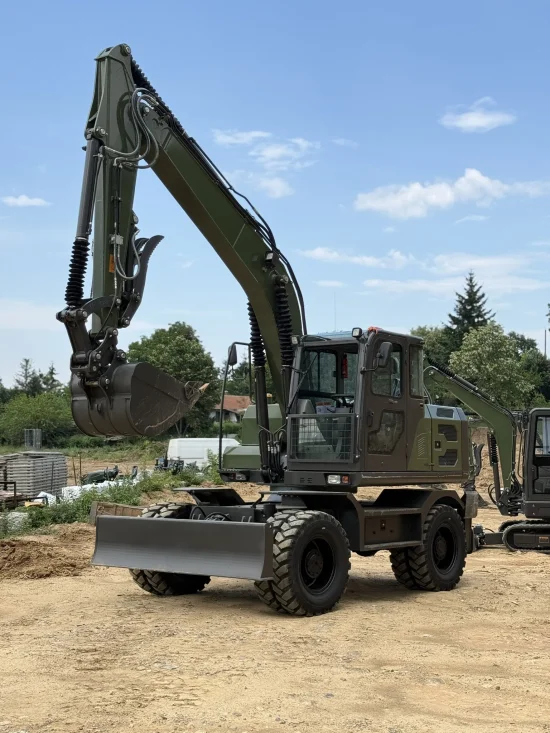

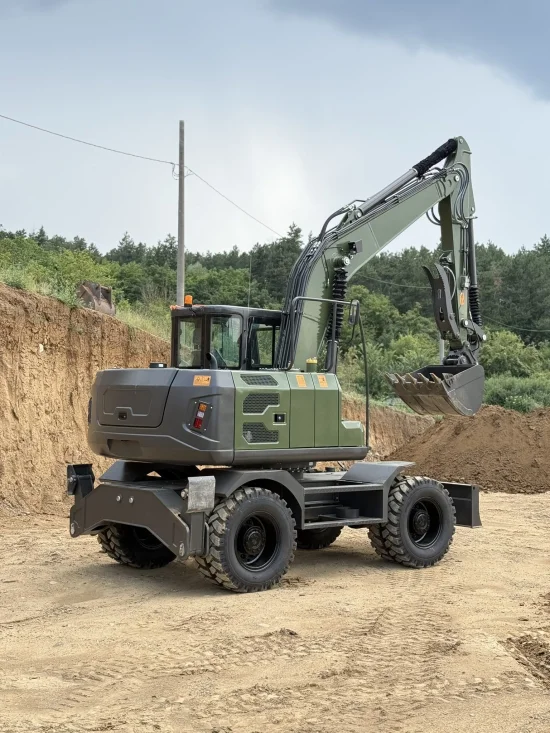

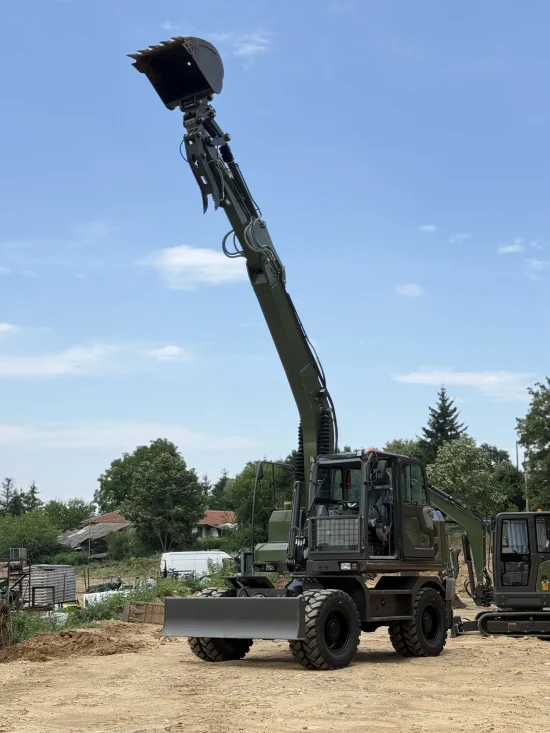

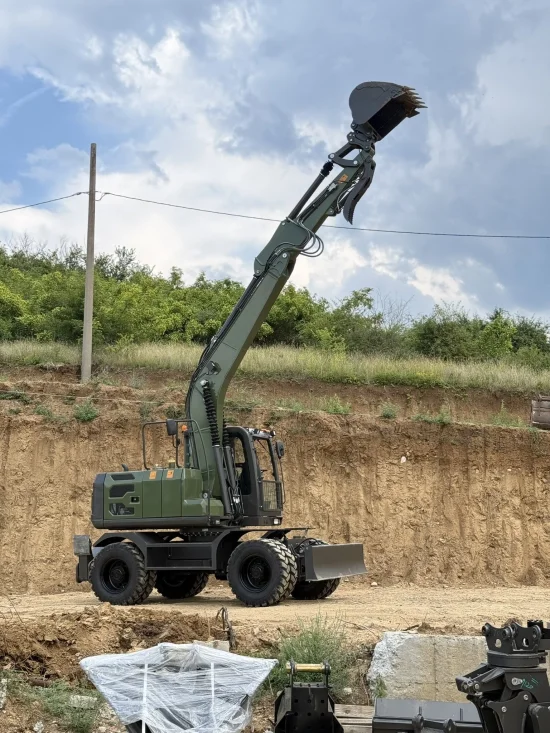

Müller E11.0W Wheeled Excavator

The Müller E11.0W is a professional 11-tonne wheeled excavator designed for demanding excavation, loading, road construction, infrastructure maintenance, and operation with a wide range of hydraulic attachments.

Its powerful 6-cylinder turbo-diesel engine, producing 100 hp, and the hydraulic system with a working pressure of 30 MPa provide high productivity, smooth operation, and excellent digging force.

The rubber tyres allow fast movement between different working areas and operation on asphalt, concrete, and other paved surfaces. The front dozer blade and standard rear stabiliser legs provide excellent stability during excavation, lifting, and work with heavy attachments.

Standard Equipment

• 3 buckets

• Hydraulic thumb for gripping and handling materials

• Hydraulic quick coupler

• Front dozer blade

• Two rear stabiliser legs

• Two pairs of auxiliary hydraulic lines

• Third dedicated hydraulic line for the quick coupler

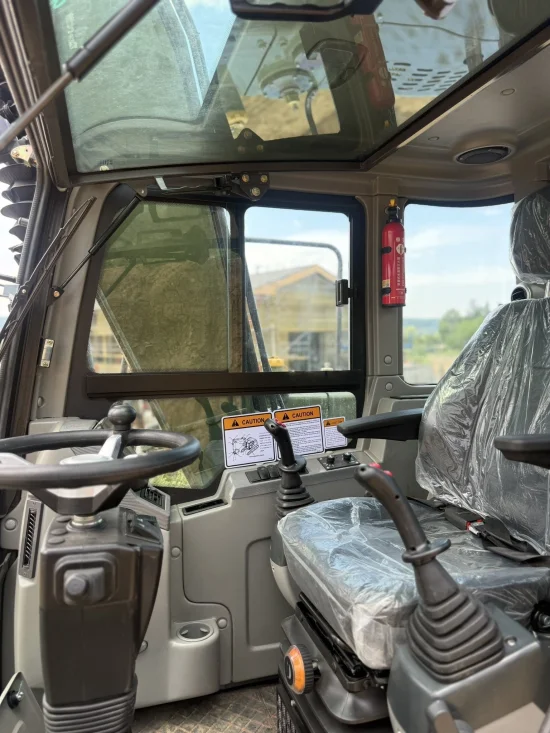

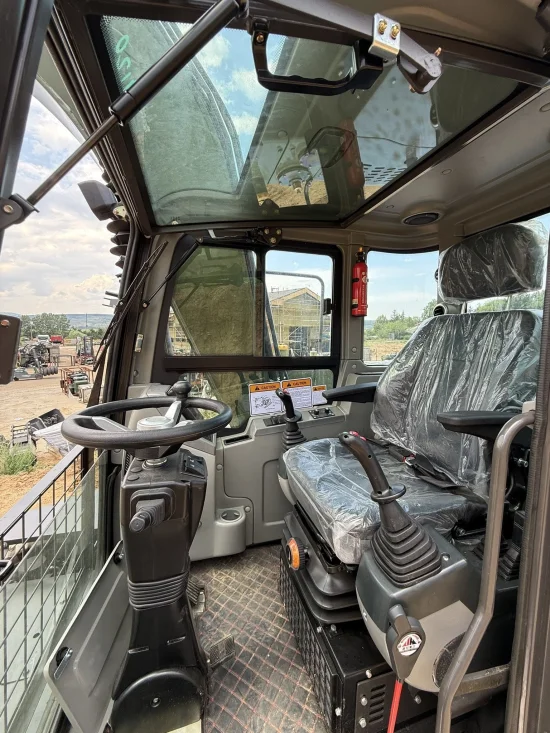

• Air conditioning in the cabin

• 9.00-20 tyres

Hydraulic Lines

The Müller E11.0W is equipped with two pairs of auxiliary hydraulic lines and a third dedicated line for operating the hydraulic quick coupler.

This configuration allows the standard hydraulic thumb to be used together with an additional hydraulic attachment. If the standard thumb is removed, another attachment can be installed, such as a 360° rotating hydraulic grapple, hydraulic breaker, flail mower, or forestry mulcher, while the hydraulic quick coupler remains fully operational.

Optional Equipment

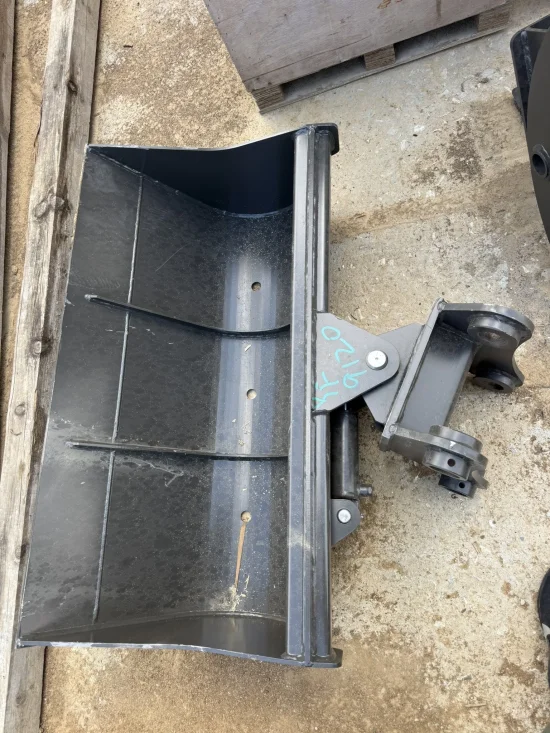

• 1.2 m hydraulic tilting grading bucket – €2,500 excl. VAT

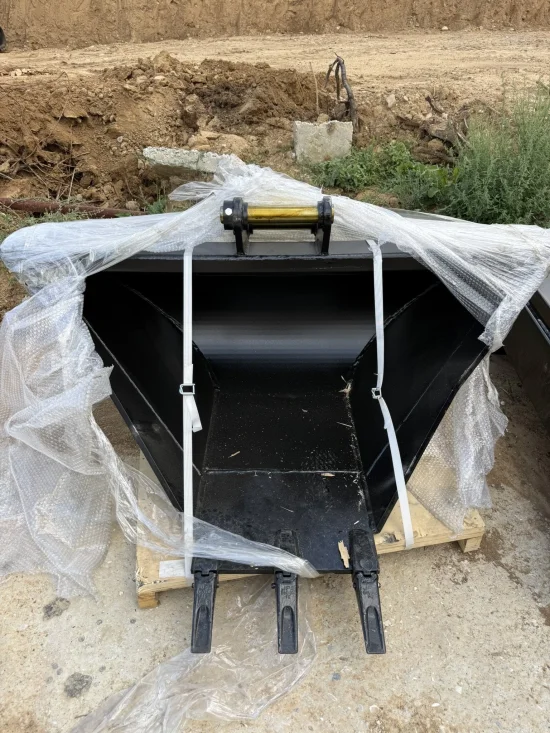

• V-shaped bucket – €1,500 excl. VAT

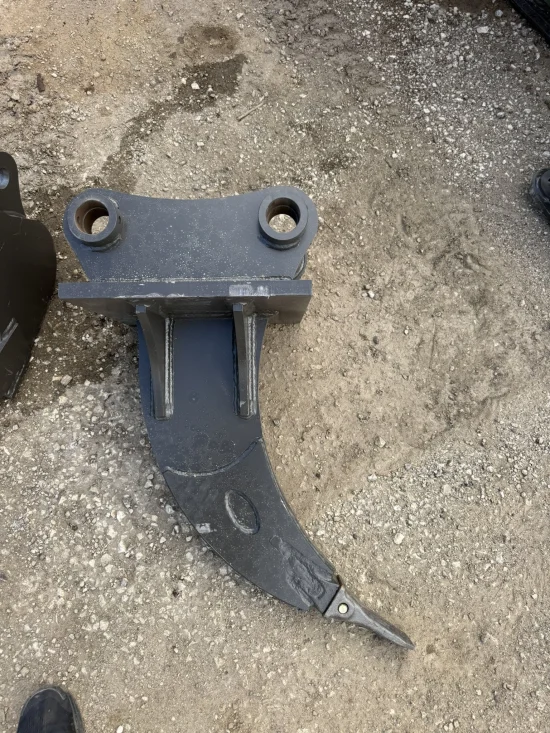

• Hydraulic ripper – €1,000 excl. VAT

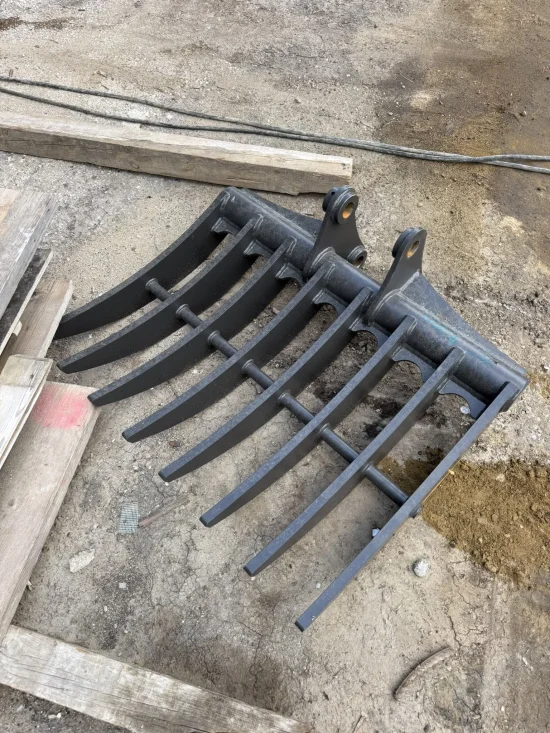

• Excavator rake – €1,200 excl. VAT

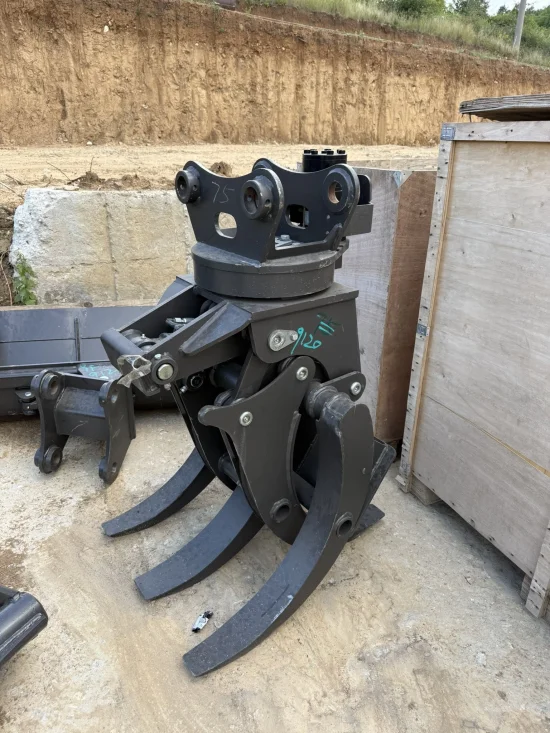

• 360° rotating hydraulic grapple – €4,000 excl. VAT

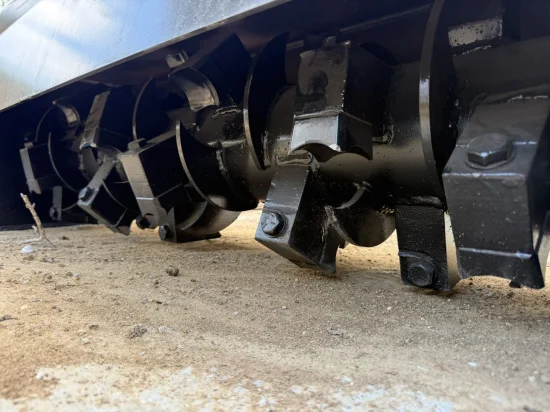

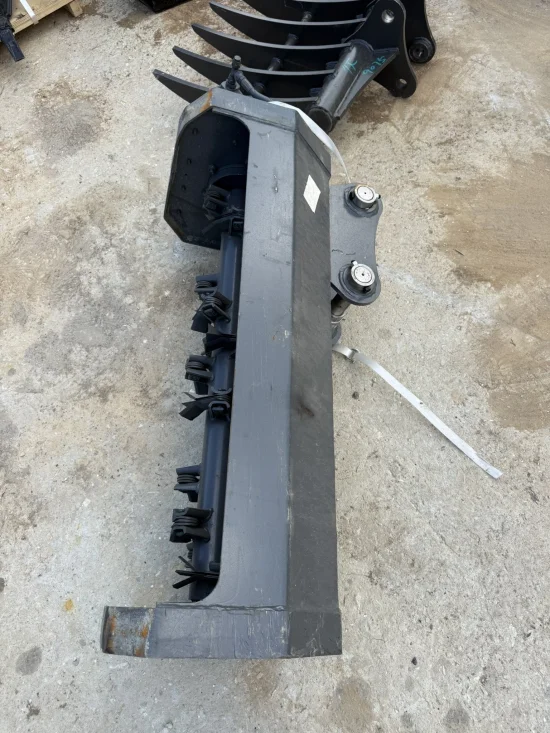

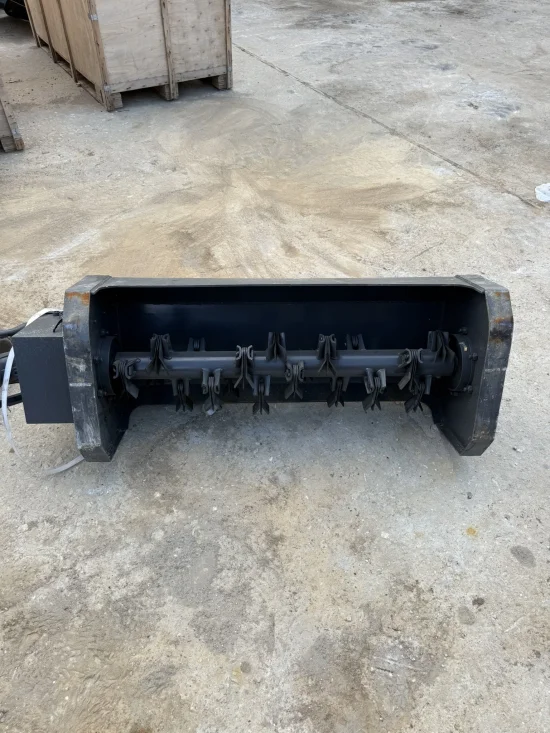

• Flail mower with Y-shaped flails – €3,000 excl. VAT

• Forestry mulcher – €6,000 excl. VAT

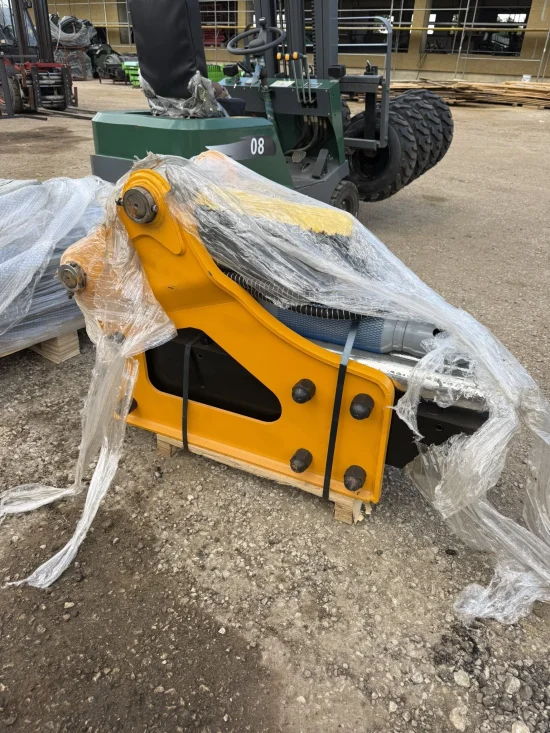

• Hydraulic breaker – €3,000 excl. VAT

Technical Specifications

• Operating weight: 11,000 kg

• Bucket capacity: 0.4 m³

• Swing speed: 11 rpm

• Gradeability: 25°

• Maximum bucket digging force: 75 kN

• Maximum arm digging force: 52 kN

• Engine type: 6-cylinder inline turbo-diesel

• Power: 100 hp at 2,200 rpm

• Hydraulic system working pressure: 30 MPa

• Maximum hydraulic system flow: 231 L/min

• Tyre size: 9.00-20

Working Range

• Maximum digging height: 8,223 mm

• Maximum dumping height: 6,300 mm

• Maximum digging depth: 4,414 mm

• Maximum vertical digging depth: 4,032 mm

• Maximum digging radius: 7,364 mm

• Minimum swing radius: 1,989 mm

• Maximum dozer blade lifting height: 430 mm

• Maximum dozer blade cutting depth: 60 mm

Dimensions

• Transport length: 7,284 mm

• Overall width: 2,278 mm

• Overall height: 3,011 mm

• Cabin height: 3,011 mm

• Wheelbase: 2,500 mm

• Wheel track: 1,782 mm

• Ground clearance: 335 mm

• Tail swing radius: 2,159 mm
