Technical Specification

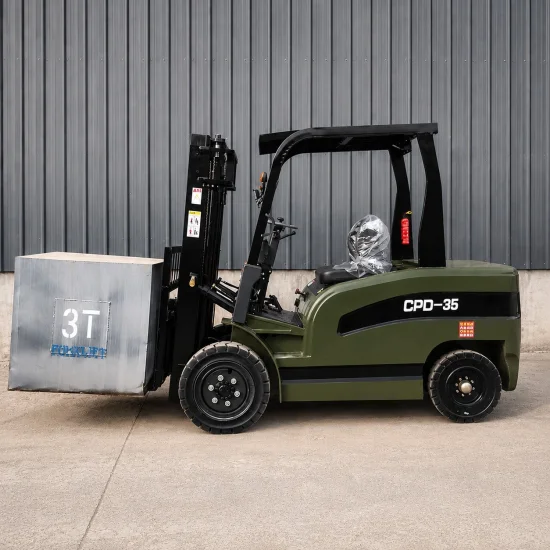

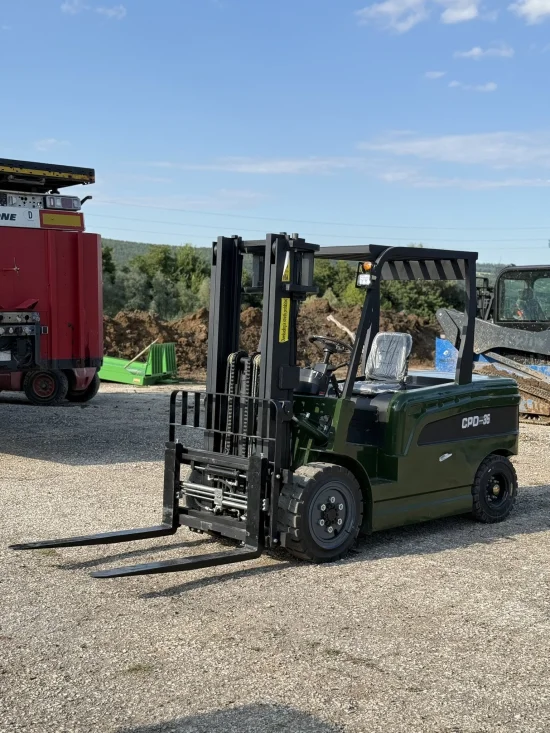

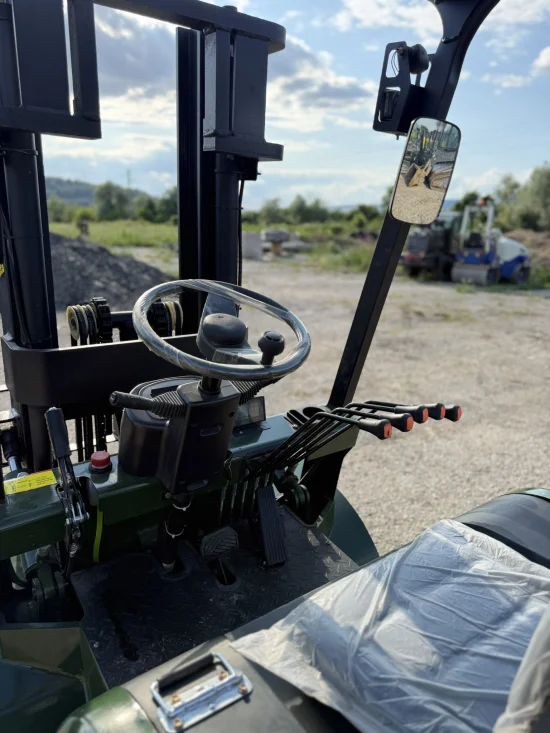

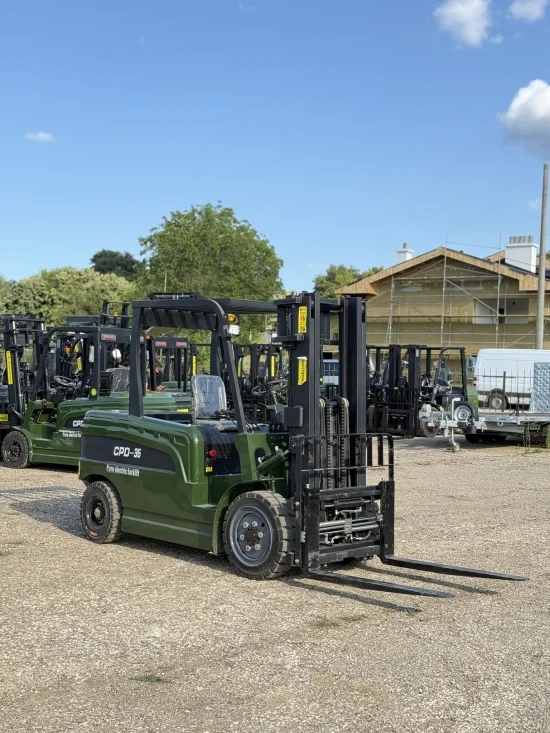

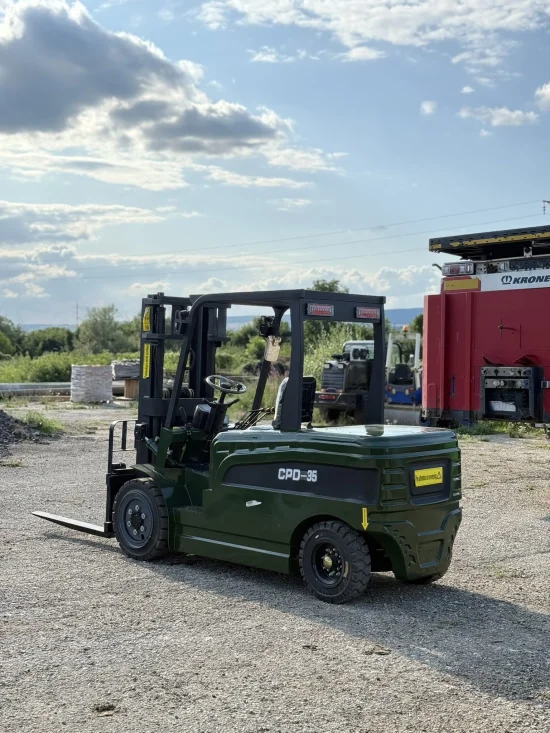

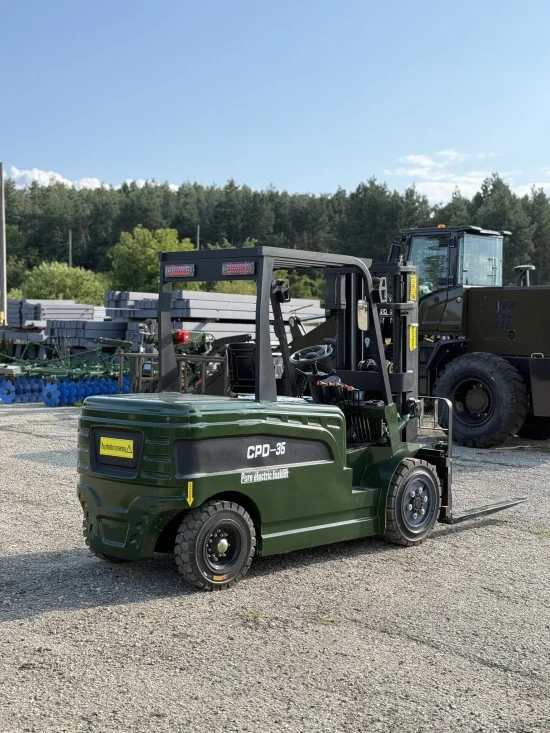

Müller F35E Electric Forklift

Main Parameters

Load Capacity: 3.5 tons
Operating Weight: 4.7 t
Standard Lift Height: 3.0 m
Optional Lift Heights: 4.0 m / 4.5 m / 6.0 m
Ground Clearance: minimum 10 cm
Gradeability (empty / loaded): 15° / 13°
Mast Tilt (forward / backward): 6° / 12°

Dimensions

Overall Length: 2850 mm
Overall Width: 1240 mm
Overall Height: 2300 mm
Wheelbase: 2.0 m
Front Track Width: 800 mm
Rear Track Width: 830 mm
Fork Length: 1220 mm

Electrical System

Operating Voltage: 60V
Drive Motor: Wuxi Leier 10,000 W
Lifting Motor: Wuxi Leier 13,000 W
Standard Battery: 60V / 172Ah lead-acid traction battery
Optional Batteries: 60V / 240Ah or 400Ah lithium-ion batteries
Battery Charger: included in the price
Lithium Battery Charger: 60V / 40A

Mast and Lifting

Mast Type: standard C-type mast
Standard Lift Height: 3.0 m
Optional Duplex Mast: 4.0 m
Optional Triplex Mast: 4.5 m / 6.0 m
Free Lift: optional
Side Shift: optional
Hydraulic Fork Positioner: optional

Chassis

Front Tires: 28×9-15
Rear Tires: 650-10
Front Axle: reinforced integrated steel axle
Rear Axle: reinforced steel axle with 8-bolt reinforcement
Braking System: oil-immersed brakes

Additional Equipment

LED lighting
Reverse travel alarm
Automatic power cut-off when leaving the seat

Estimated Operating Time

Lead-Acid Traction Battery

Capacity: 60V / 172Ah
Estimated Operating Time: up to 2 hours

Lithium-Ion Battery

Capacity: 60V / 240Ah
Estimated Operating Time: up to 3 hours

Lithium-Ion Battery

Capacity: 60V / 400Ah
Estimated Operating Time: up to 4–4.5 hours

Important Notice

The operating time on a single charge is approximate and depends on the load weight, floor conditions, lifting frequency, terrain slope, and operating style. Under lighter-duty applications, operating time may be longer, while intensive use with heavy loads may reduce battery runtime.
