Technical Specification

Main parameters

Load capacity: 1.5 tons
Own weight: 2.2 t
Standard lifting height: 3.0 m
Optional lifting height: 4.0 m / 4.5 m
Ground clearance: minimum 10 cm
Gradeability unloaded/loaded: 15° / 13°
Mast tilt forward/backward: 6° / 12°

Dimensions

Overall length: 2350 mm
Overall width: 1200 mm
Overall height: 2150 mm
Wheelbase: 1.58 m
Distance between front tires: 1030 mm
Distance between rear tires: 870 mm
Fork length: 1070 mm

Electric system

Working voltage: 60V
Drive motor: Wuxi Leier 4000 W
Lifting motor: Wuxi Leier 4000 W
Standard battery: lead-acid traction battery 60V / 70Ah
Optional batteries: lithium-ion 60V / 100Ah, 240Ah or 400Ah
Battery charger: included in the price
Charger for lithium-ion battery: 60V / 40A

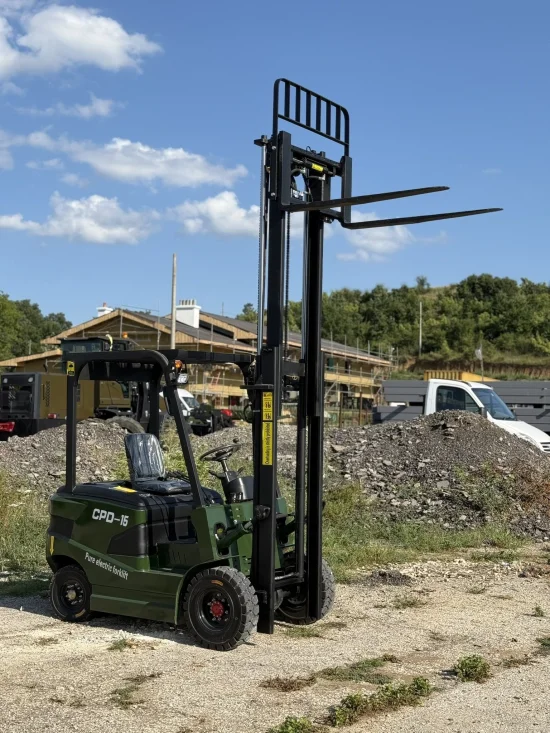

Mast and lifting

Mast type: standard C-shaped mast
Standard lifting height: 3.0 m
Optional extended two-stage mast: 4.0 m
Optional triplex mast: 4.5 m
Free lift: optional
Fork side shift: optional
Hydraulic fork positioning: optional

Chassis

Front tires: 650-10
Rear tires: 500-8
Front axle: reinforced integrated axle with steel housing
Rear axle: steel axle
Brake system: oil brakes

Battery Working Time

Lead-acid traction battery

Capacity: 60V / 70Ah
Estimated working time: up to 2 hours

Lithium-ion battery

Capacity: 60V / 100Ah
Estimated working time: up to 3 hours

Lithium-ion battery

Capacity: 60V / 240Ah
Estimated working time: up to 7–8 hours

Lithium-ion battery

Capacity: 60V / 400Ah
Estimated working time: up to 10–12 hours

Important note

The working time on a single charge is approximate. It depends on the load, floor surface, lifting frequency, ground inclination and operating conditions. With lighter use, the working time may be longer, while intensive operation with heavy loads may reduce it.
