Technical Specification

Main Parameters

Load Capacity: 2.0 tons
Operating Weight: 2.7 t
Standard Lifting Height: 3.0 m
Optional Lifting Height: 4.0 m / 4.5 m
Ground Clearance: minimum 10 cm
Gradeability Empty / Loaded: 15° / 13°
Mast Tilt Forward / Backward: 6° / 12°

Dimensions

Overall Length: 2450 mm
Overall Width: 1200 mm
Overall Height: 2150 mm
Wheelbase: 1.65 m
Distance Between Front Wheels: 1020 mm
Distance Between Rear Wheels: 950 mm
Fork Length: 1220 mm

Electrical System

Operating Voltage: 60V
Drive Motor: Wuxi Leier 5000 W
Lifting Motor: Wuxi Leier 5000 W
Standard Battery: 60V / 70Ah lead-acid traction battery
Optional Batteries: 60V / 100Ah, 240Ah or 400Ah lithium-ion batteries
Battery Charger: included in the price
Lithium Battery Charger: 60V / 40A

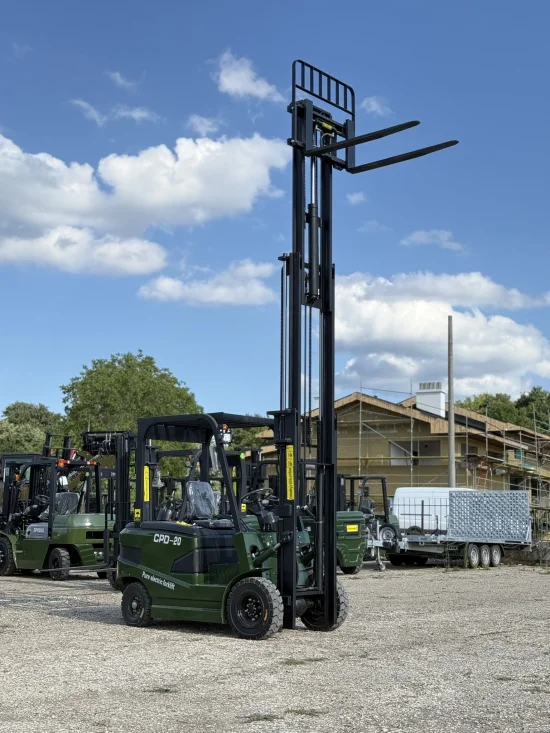

Mast and Lifting System

Mast Type: standard C-type mast
Standard Lifting Height: 3.0 m
Optional Extended Duplex Mast: 4.0 m
Optional Triplex Mast: 4.5 m
Free Lift: optional
Side Shift: optional
Hydraulic Fork Spreading and Closing: optional

Chassis and Running Gear

Front Tires: 650-10
Rear Tires: 500-8
Front Axle: reinforced integrated axle with steel housing
Rear Axle: steel axle
Brake System: oil brakes

Estimated Operating Time

Lead-Acid Traction Battery

Capacity: 60V / 70Ah
Estimated Operating Time: up to 1.5 hours

Lithium-Ion Battery

Capacity: 60V / 100Ah
Estimated Operating Time: up to 2 hours

Lithium-Ion Battery

Capacity: 60V / 240Ah
Estimated Operating Time: up to 4–5 hours

Lithium-Ion Battery

Capacity: 60V / 400Ah
Estimated Operating Time: up to 7–8 hours

Important Notice

Operating time on a single charge is approximate. It depends on the load weight, floor conditions, lifting frequency, terrain incline, and operating style. Under lighter working conditions, operating time may be longer, while intensive operation with heavy loads may reduce battery duration.
