Standard Version

The standard equipment includes:

• Standard front loader bucket

• 65 cm backhoe bucket

Plus Version

The Müller B7.0 TL Plus includes:

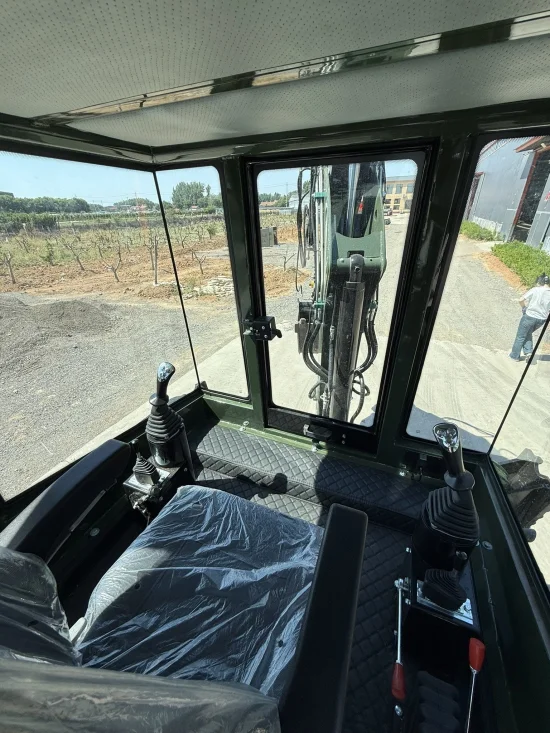

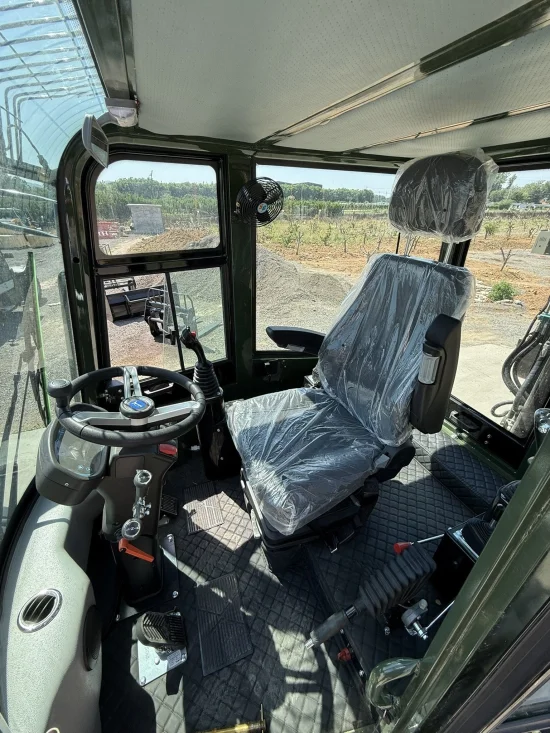

• Air-conditioned cab

• Electric joystick control for the front loader

• 6-in-1 opening bucket with pallet forks

• Telescopic backhoe arm

• Quick coupler for the backhoe arm

• Semi-solid tyres

• Rear-view camera

• 40 cm backhoe bucket

• 65 cm backhoe bucket

Optional Equipment

All prices exclude VAT.

• Air conditioning – EUR 1,000

• Quick coupler for the backhoe arm – EUR 800

• Electric joystick control for the front loader – EUR 1,000

• 6-in-1 opening bucket with pallet forks – EUR 2,000

• 40 cm backhoe bucket – EUR 500

• Telescopic backhoe arm – EUR 3,000

• Semi-solid tyres – EUR 1,000

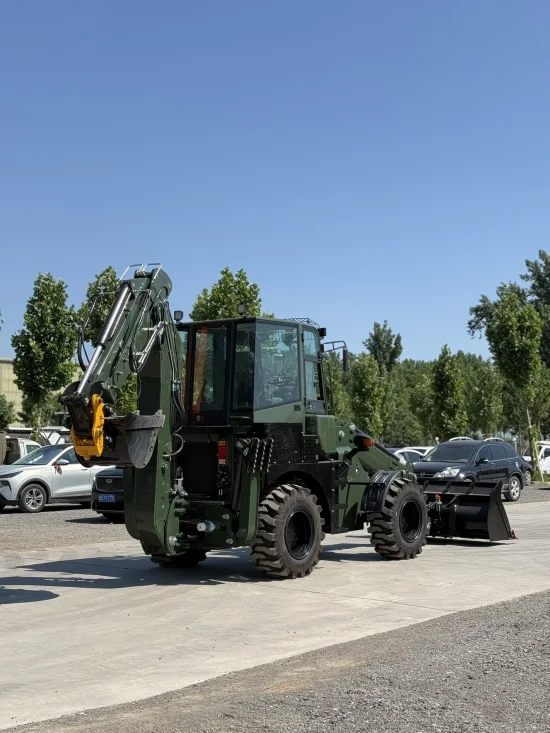

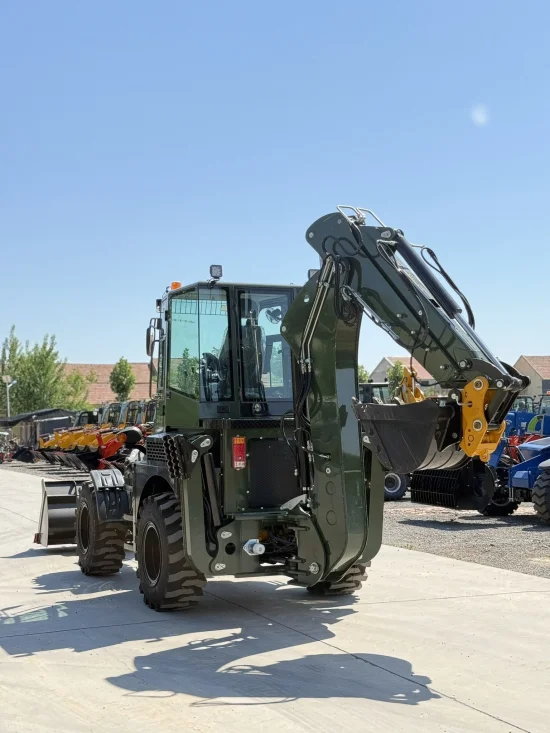

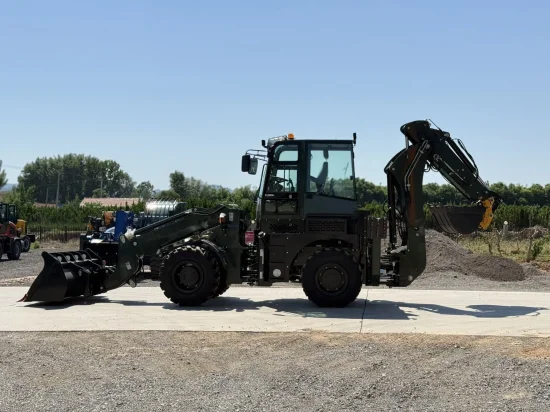

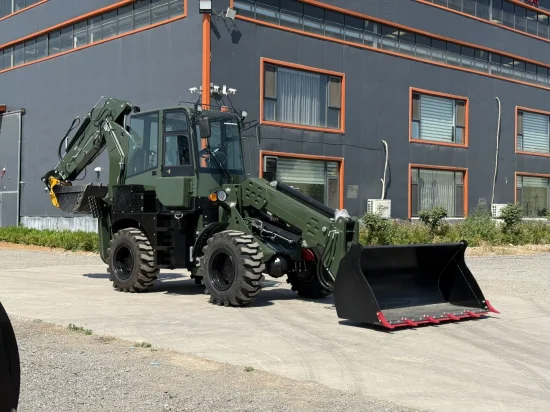

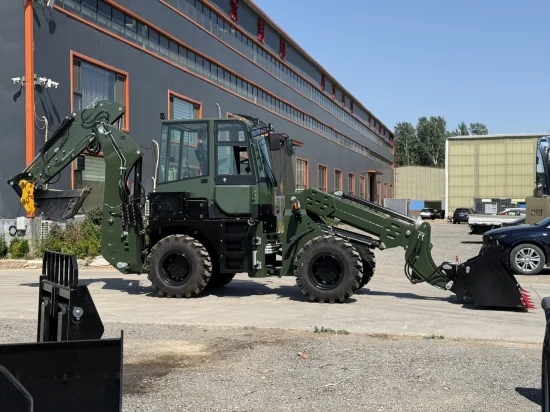

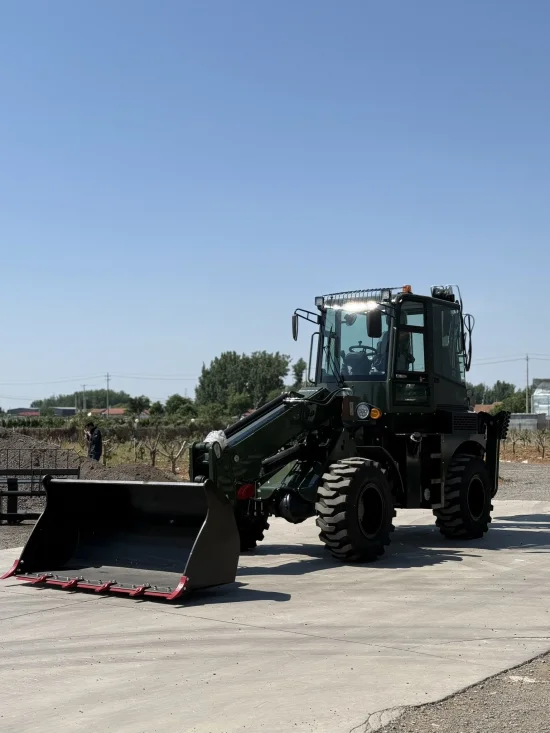

Müller B7.0 TL Backhoe Loader with Telescopic Boom

The Müller B7.0 TL is a versatile backhoe loader equipped with a telescopic front loader boom, designed for excavation, loading, construction and agricultural work. With a maximum lifting height of 5.5 m, it can perform tasks that would normally require both a conventional backhoe loader and a telescopic handler.

The machine combines a large-capacity front bucket, a powerful rear excavator unit and 4×4 drive. It is suitable for construction sites, farms, warehouses, road maintenance and loading materials into high-sided trucks, trailers and containers.

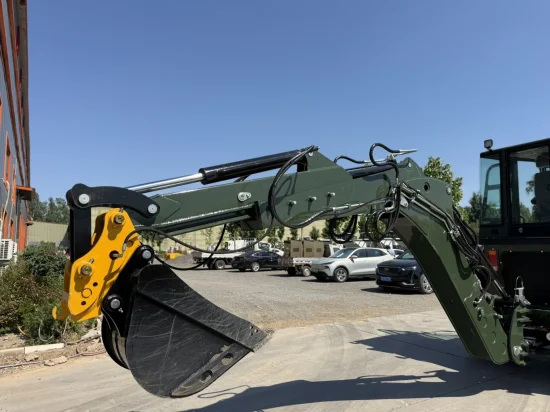

The rear excavator arm provides a standard digging depth of up to 4 m, increasing to 4.5 m with the telescopic backhoe arm. A 65 cm digging bucket is supplied as standard.

Technical Specifications

• Model: Müller B7.0 TL

• Type: Backhoe loader with telescopic front boom

• Operating weight: 7,000 kg

• Engine: Yunnei four-cylinder diesel engine

• Engine power: 76 kW / 100 hp

• Drive system: 4×4

• Maximum lifting capacity: 2,500 kg

• Maximum lifting height: 5.5 m

• Front bucket capacity: 1.3 m³

• Backhoe bucket capacity: 0.3 m³

• Standard backhoe bucket width: 65 cm

• Maximum digging depth: 4 m

• Maximum digging depth with telescopic backhoe arm: 4.5 m

• Overall length: 7,820 mm

• Overall width: 2,650 mm

• Overall height: 2,950 mm

• Wheelbase: 2,500 mm

• Wheel track: 1,650 mm

• Tyre size: 16/70-20

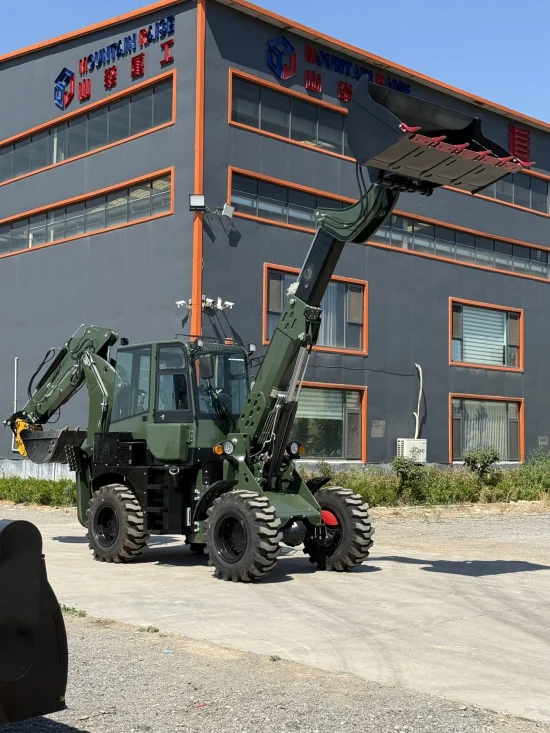

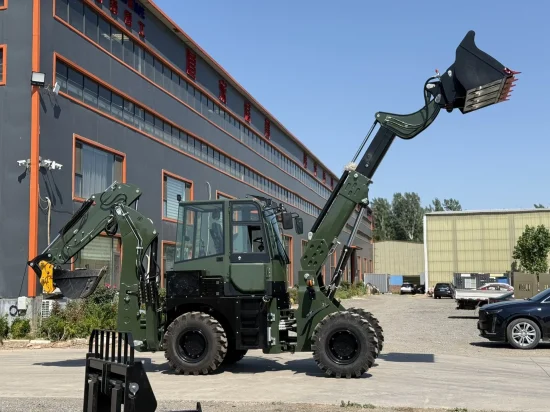

The telescopic boom considerably increases the working range of the front loader and makes it easier to load high-sided trucks, trailers and containers. Its robust chassis, high ground clearance and four-wheel drive provide excellent mobility when working on uneven or soft terrain.
