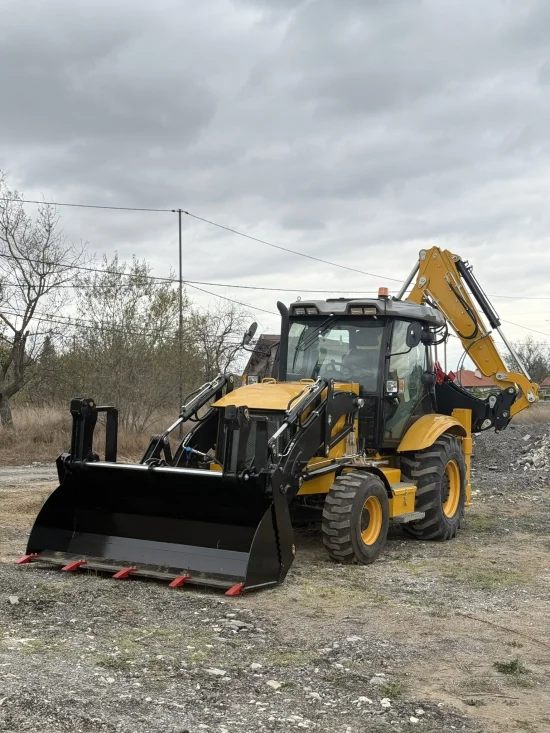

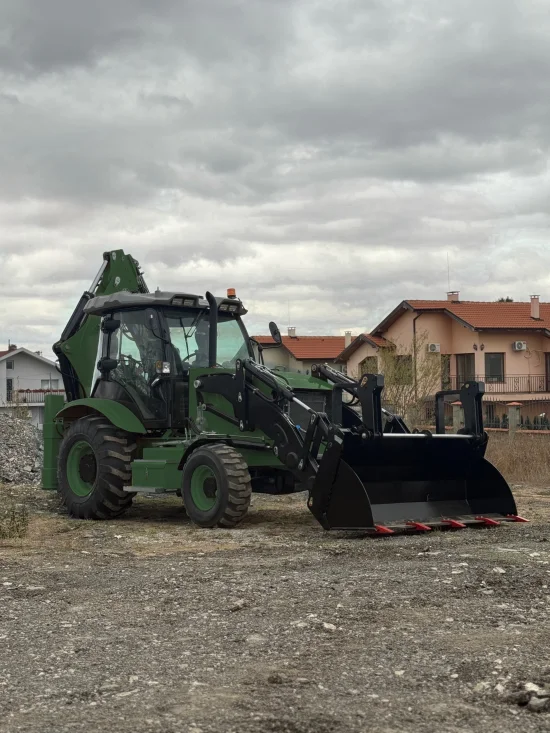

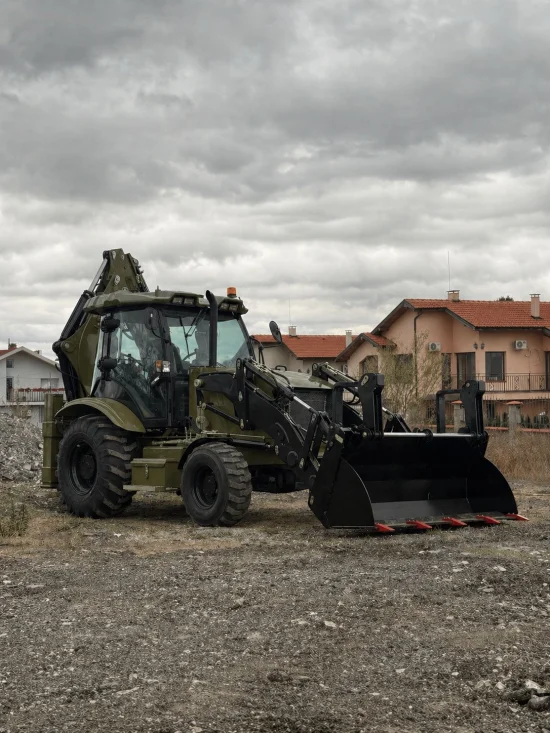

Müller 3CX Backhoe Loader

Standard Version

The standard equipment includes:

• Standard front loader bucket

• 65 cm backhoe bucket

Plus Version

The Müller 3CX Plus version includes:

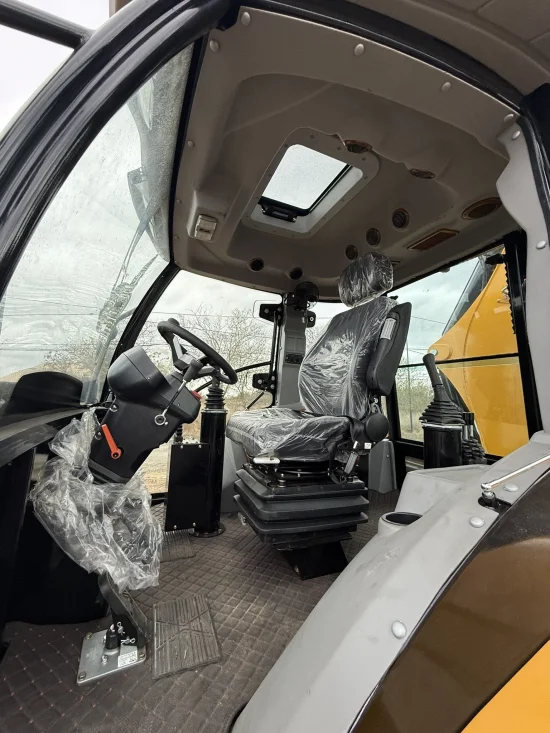

• Air-conditioned cab

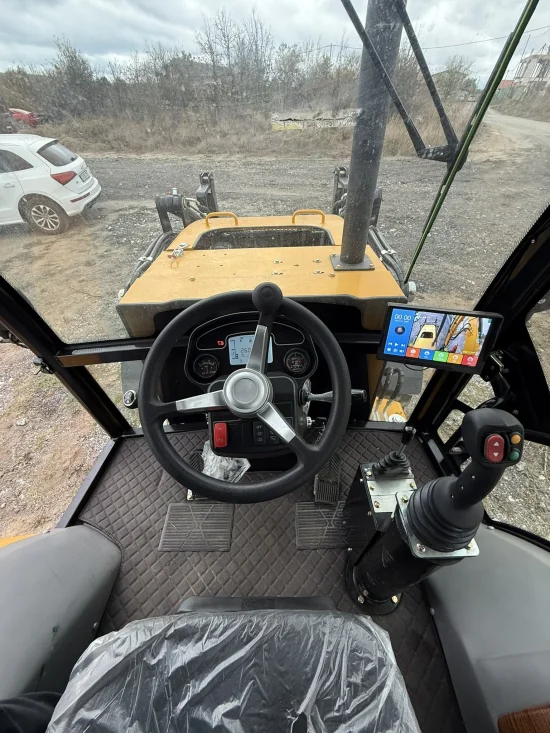

• Electric joystick control for the front loader

• 6-in-1 opening bucket with pallet forks

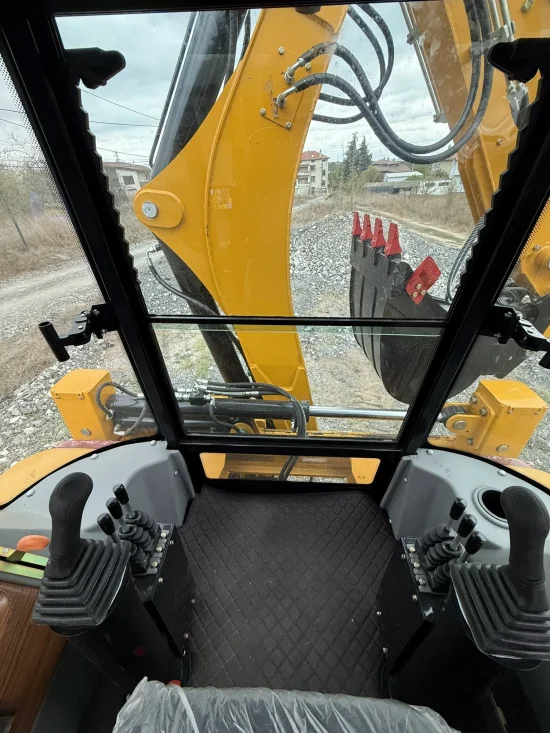

• Telescopic backhoe arm

• Quick coupler for the backhoe arm

• Mechanical side-shift system with H-Leg stabilisers

• Rear-view camera

• 65 cm backhoe bucket

• 40 cm backhoe bucket

Optional Equipment

All prices exclude VAT.

• Air conditioning – EUR 1,000

• 6-in-1 opening bucket with pallet forks – EUR 3,500

• Telescopic backhoe arm – EUR 3,500

• Electric joystick control for the front loader – EUR 1,000

• Mechanical side-shift system with H-Leg stabilisers – EUR 1,500

• Quick coupler for the backhoe arm – EUR 1,000

• 40 cm backhoe bucket – EUR 500

Description

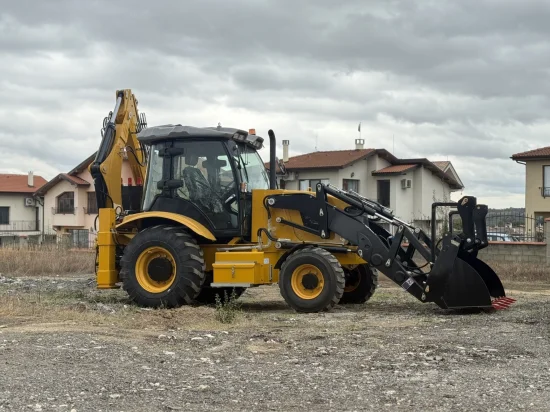

The Müller 3CX is a powerful and versatile backhoe loader designed for excavation, loading, construction, agricultural and infrastructure work. It combines the capabilities of a front loader and an excavator in a robust and manoeuvrable machine.

The Yunnei four-cylinder turbocharged diesel engine, delivering 76 kW, provides the power and traction required for demanding everyday work. The 4×4 drive system and large tyres ensure improved mobility across muddy, soft and uneven terrain.

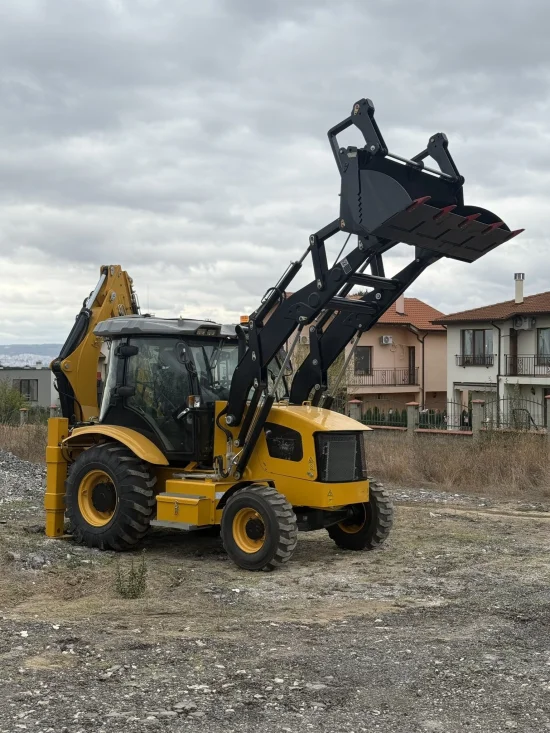

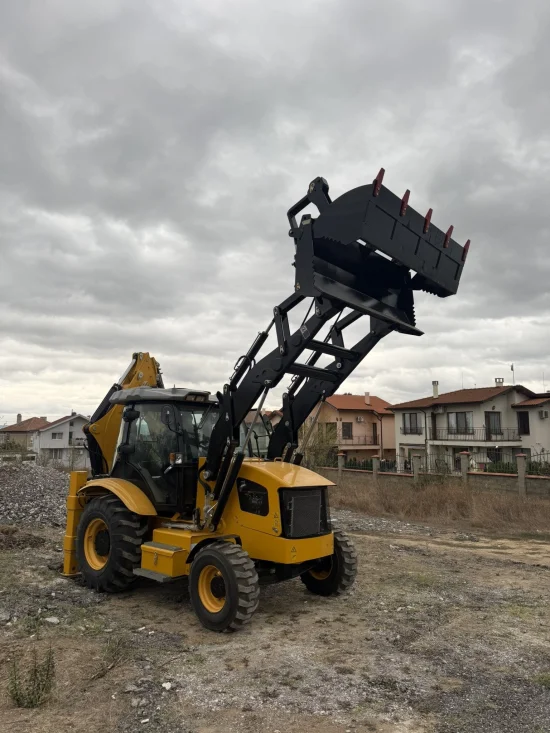

The front loader offers a lifting capacity of up to 2,500 kg and a maximum lifting height of 3.7 m. The machine is suitable for loading soil, sand, gravel, aggregates, manure and other bulk materials.

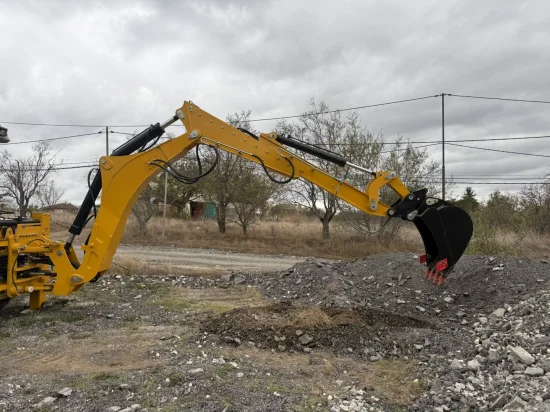

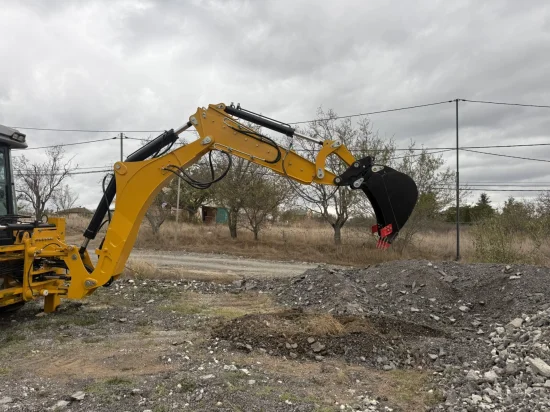

The rear excavator unit reaches a digging depth of up to 4 m, increasing to 5 m with the telescopic backhoe arm. The quick coupler makes changing buckets easier and reduces preparation time between different tasks.

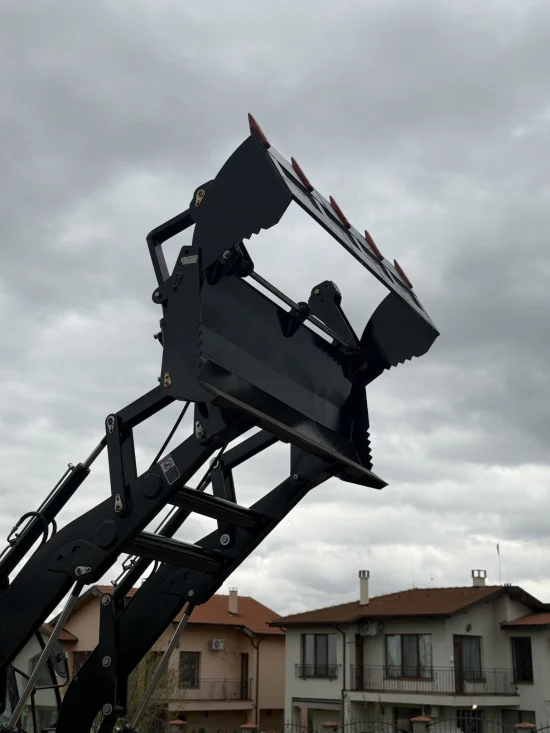

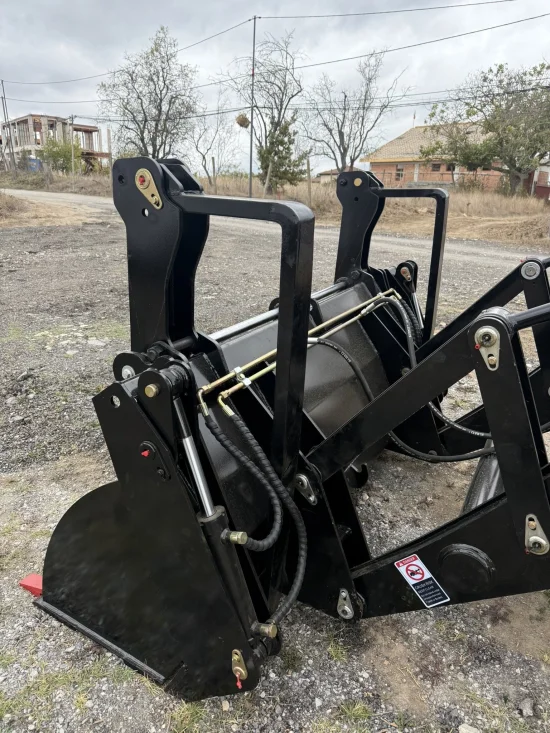

The 6-in-1 opening bucket further expands the machine’s versatility. It can be used for standard loading, scooping, levelling, spreading, gripping and pallet-handling operations.

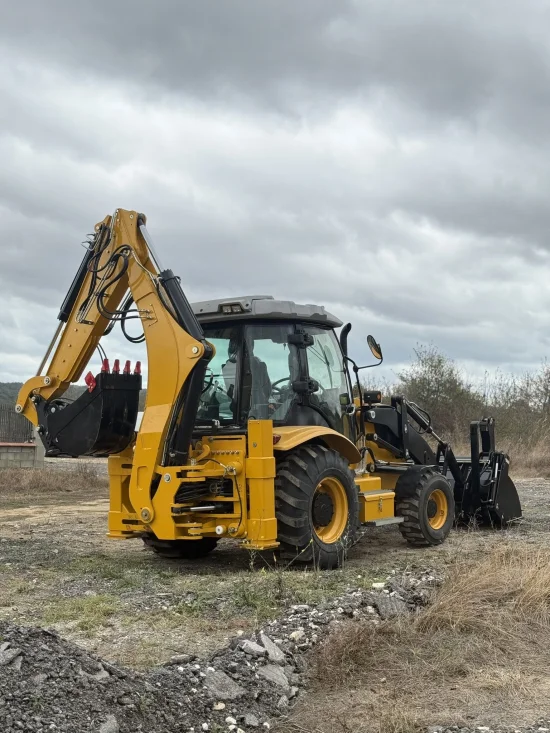

H-Leg System

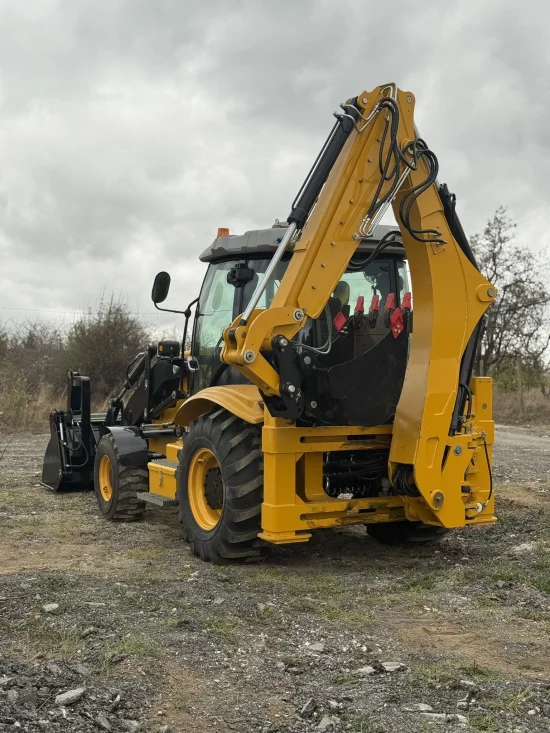

The mechanical side-shift system allows the backhoe arm to be positioned to the left or right. The H-Leg stabilisers extend vertically downwards without protruding sideways beyond the machine’s overall width. This makes it easier to work in confined spaces and close to walls, fences, buildings and roads.

Technical Specifications

• Model: Müller 3CX

• Type: Backhoe loader

• Operating weight: 8,200 kg

• Drive system: 4×4

• Maximum lifting capacity: 2,500 kg

• Maximum lifting height: 3,700 mm

• Maximum digging depth: 4 m

• Maximum digging depth with telescopic arm: 5 m

• Maximum digging height: 5,470 mm

• Breakout force: 38 kN

• Maximum tractive force: 39 kN

• Front bucket capacity: 1 m³

• Backhoe bucket capacity: 0.3 m³

• Standard backhoe bucket width: 65 cm

Engine

• Make and model: Yunnei 4102

• Type: Inline, four-cylinder, four-stroke turbocharged diesel engine

• Fuel system: Direct injection

• Cooling system: Water-cooled

• Rated power: 76 kW / 103 hp

Transmission

• Torque converter: Model 280

• Torque converter type: Single-stage, three-element

• Cooling system: Forced-circulation oil cooling

• Gearbox: Fixed-shaft power transmission

• Gears: 4 forward and 4 reverse

• Maximum speed: 36 km/h

Steering System

• Steering angle: ±36°

• Minimum turning radius: 6,581 mm

• Steering system working pressure: 12 MPa

Axles

• Manufacturer: Feicheng YUNYU

• Final drive type: Double reduction

• Wheel-end reduction: Single-stage final reducer

Hydraulic System

• Working pressure: 22 MPa

• Backhoe bucket digging force: 46.5 kN

• Backhoe boom digging force: 31 kN

Braking System

• Service brake: Pneumatic-hydraulic disc brake

• Design: External type

• Functions: Self-adjusting and automatic balancing

• Emergency and parking brake: Manually operated brake with transmission disengagement

Tyres

• Front tyre size: 14-17.5

• Rear tyre size: 19.5L-24

• Front tyre pressure: 0.22 MPa

• Rear tyre pressure: 0.22 MPa

Dimensions

• Overall length: 6,120 mm

• Overall width: 2,410 mm

• Overall height: 3,763 mm

• Wheelbase: 2,050 mm
