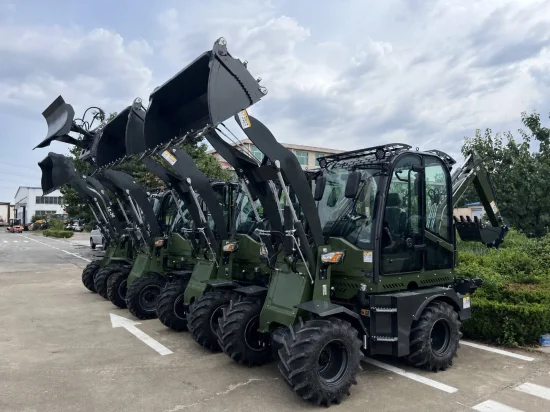

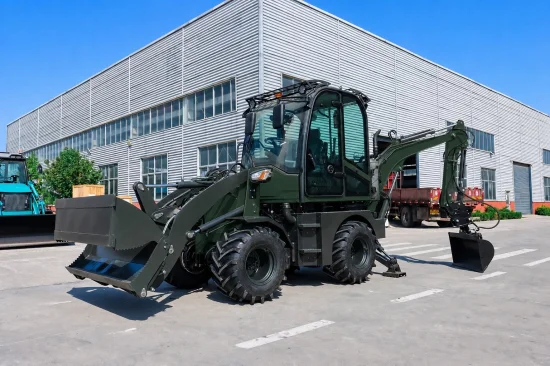

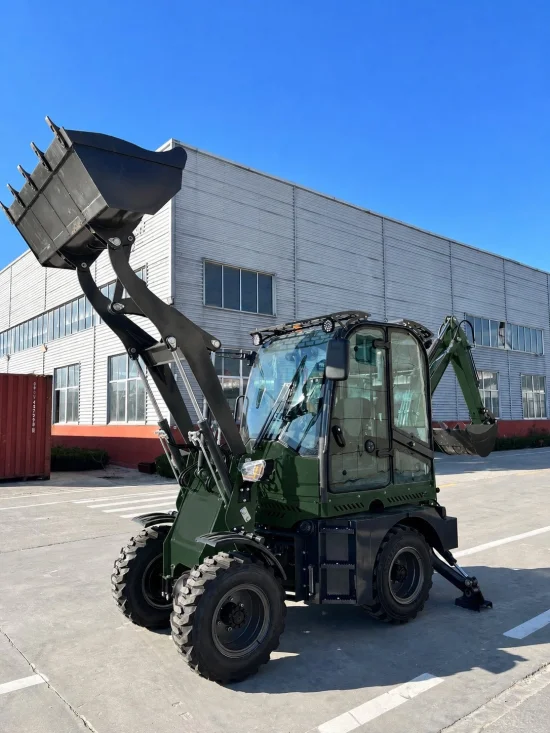

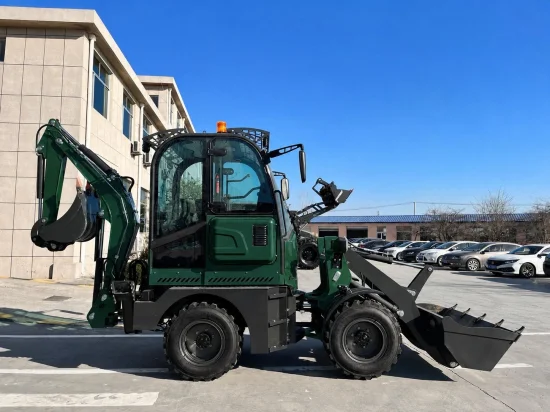

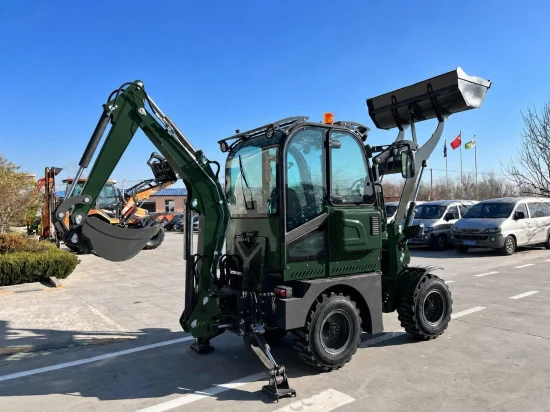

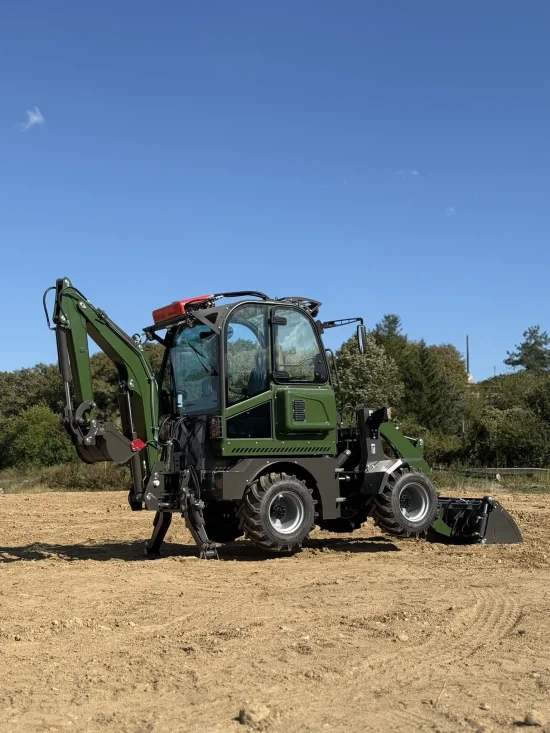

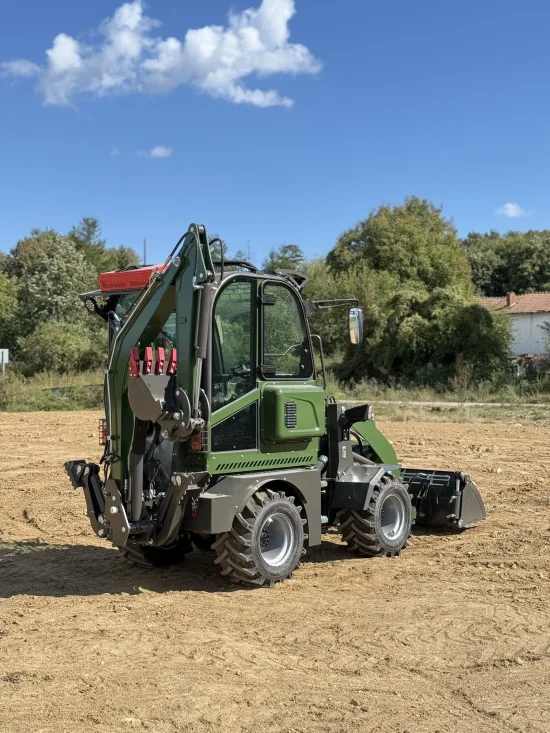

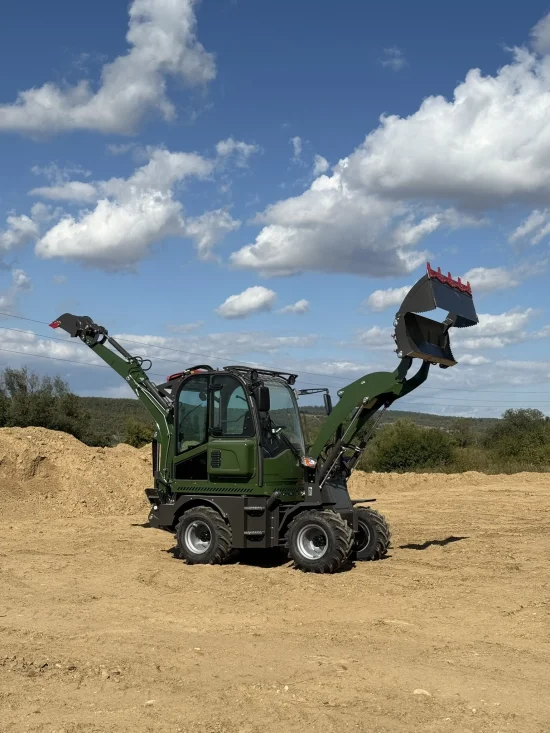

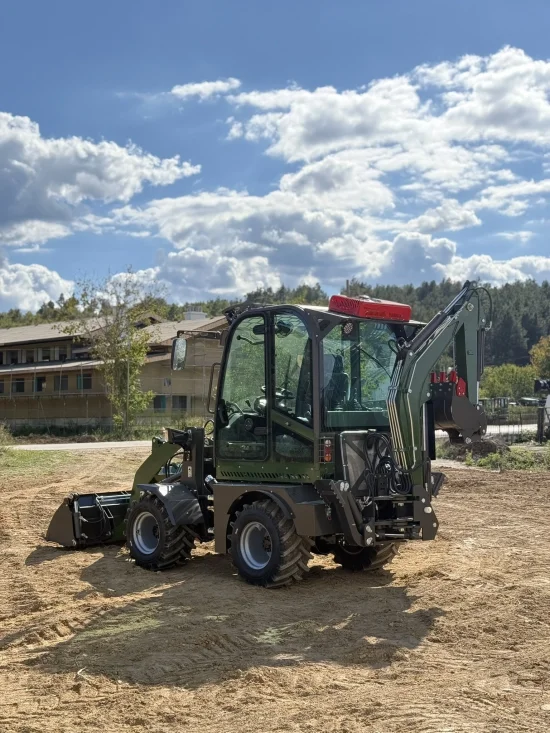

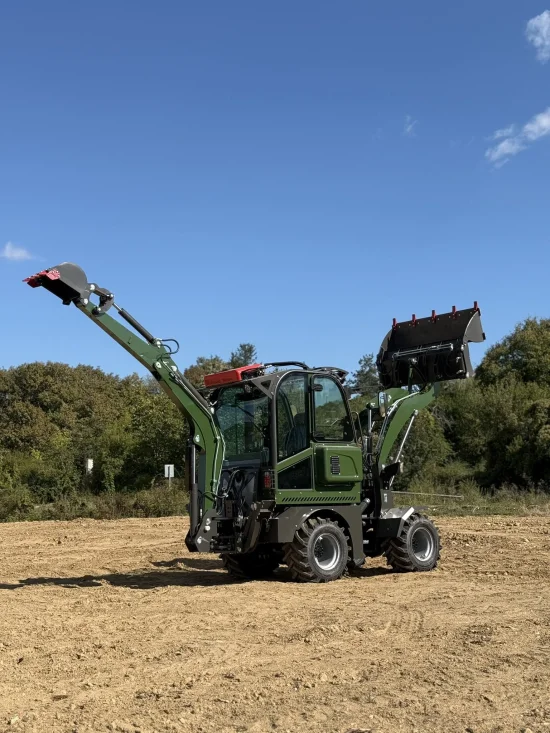

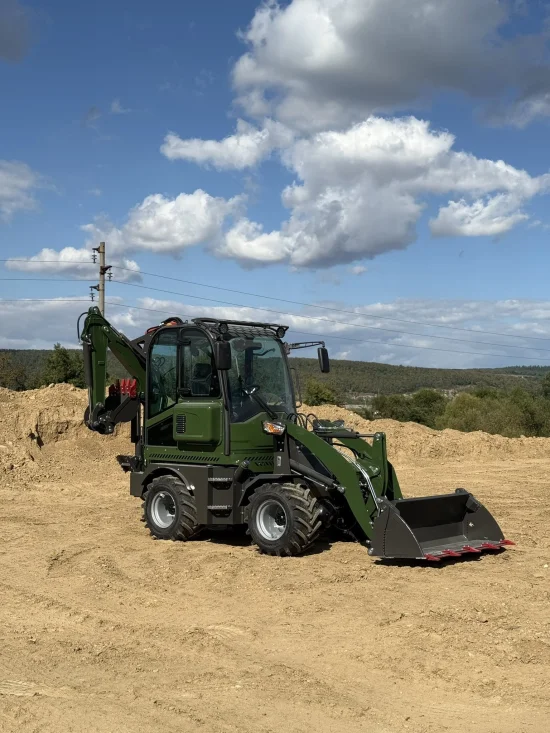

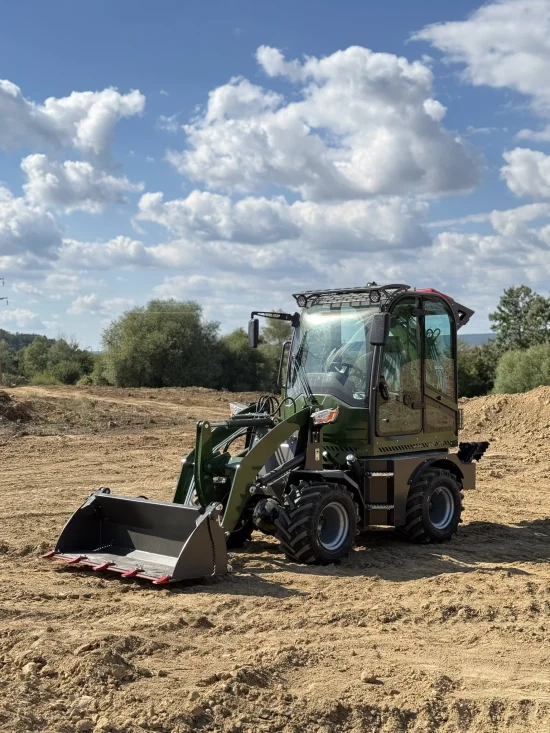

Muller B2.8 – Compact Backhoe Loader

The Muller B2.8 is a compact backhoe loader with an operating weight of 2,800 kg, combining a front loader and rear excavator in one versatile machine.

It is suitable for construction, landscaping, agriculture, property maintenance and work in confined yards and construction sites.

Standard Version – Included Equipment

• Standard front loader bucket

• 1 digging bucket

• Standard 12-16.5 tyres

Plus Version – Included Equipment

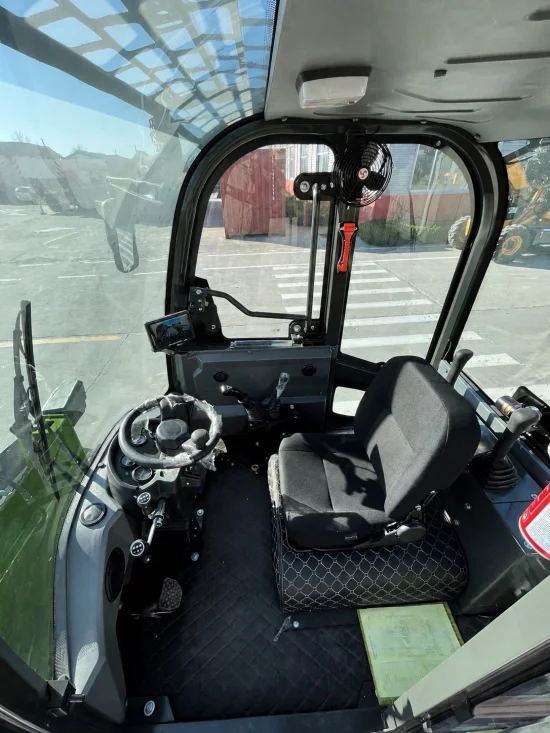

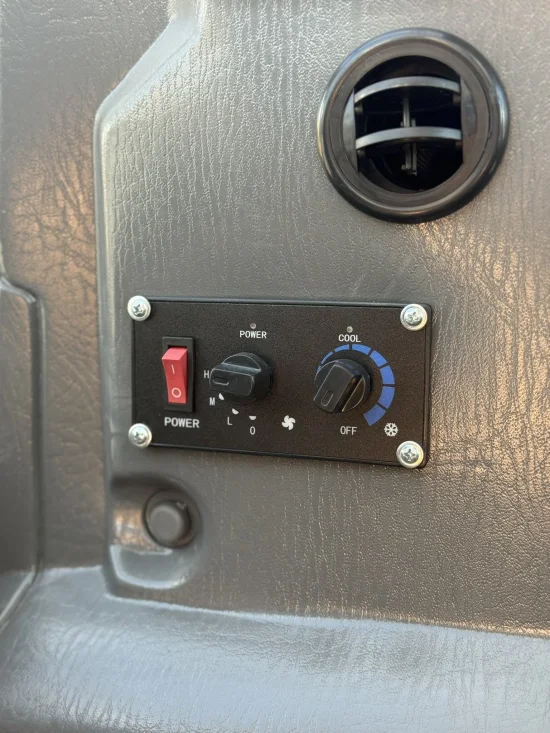

• Air conditioning

• 4-in-1 front loader bucket

• Pallet forks

• 3 digging buckets – 30, 50 and 90 cm

• Wider 31×15.50-15 tyres with improved traction

Technical Specifications

General Specifications

Operating weight: 2,800 kg
Drive: 4×4
Steering: Articulated, fully hydraulic
Steering angle: 38°
Maximum travel speed: 25 km/h
Maximum gradeability: 25°
Minimum turning radius: 2,310 mm
Wheelbase: 1,900 mm
Hydraulic system pressure: 16 MPa

Dimensions

Length: 4,700 mm
Width: 1,650 mm
Height: 2,600 mm
Minimum ground clearance: 220 mm

Engine

Engine: YN25GB, Perkins-licensed
Power: 50 hp
Number of cylinders: 4
Rated speed: 2,400 rpm
Cylinder bore: 90 mm

Front Loader

Maximum lifting capacity: 1,200 kg
Maximum lifting height: 2,600 mm
Bucket width: 1,650 mm
Bucket capacity: 0.5 m³

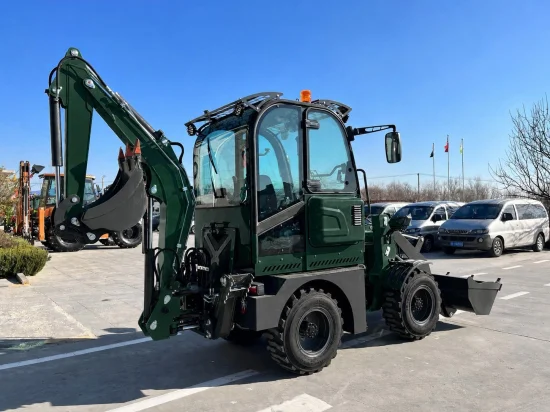

Rear Excavator

Maximum digging depth: 2,500 mm
Maximum digging radius: 3,500 mm
Maximum digging height: 3,360 mm
Swing angle: 180°
Bucket capacity: 0.12 m³
Standard bucket width: 475 mm

Axles, Tyres and Brakes

Axles: ISUZU
Standard tyres: 12-16.5
Plus version tyres: 31×15.50-15
Service brake: Air-over-hydraulic disc brake
Parking brake: Mechanical

Transmission and Tank Capacities

Transmission: Hydrodynamic transmission
Diesel tank capacity: 47.5 L
Hydraulic oil tank capacity: 47.5 L

One Machine for Multiple Applications

The front bucket allows the Muller B2.8 to load soil, sand, gravel, manure, timber and other materials. The rear excavator is suitable for digging trenches, foundations and various types of excavations.

The machine is suitable for:

• Loading and unloading materials

• Digging trenches and excavations

• Levelling and preparing terrain

• Working in yards, farms and agricultural properties

• Construction and repair work

• Landscaping and property maintenance

• Municipal and infrastructure work

With an operating weight of 2,800 kg, a 50 hp engine, a lifting capacity of 1,200 kg and a digging depth of 2.5 m, the Muller B2.8 offers an excellent balance of compact dimensions, power and versatility.
