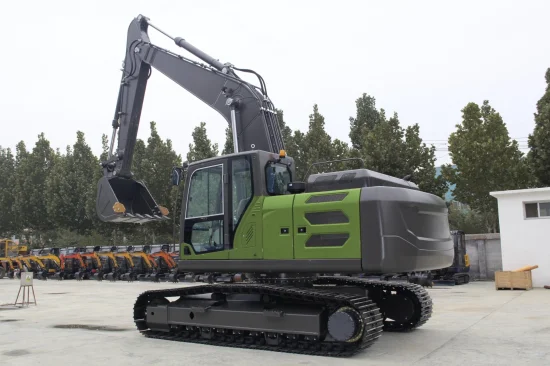

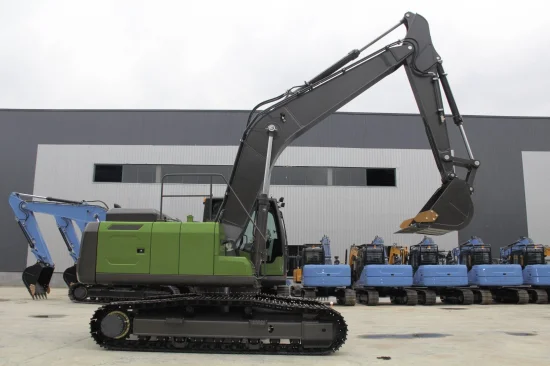

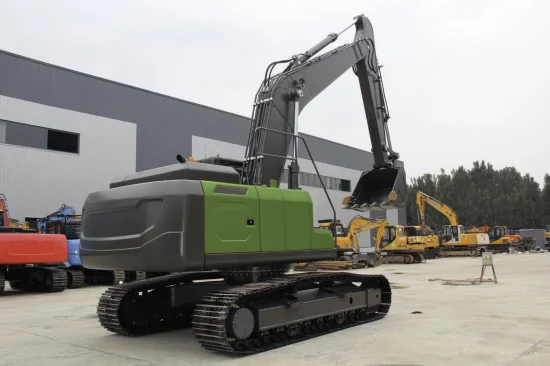

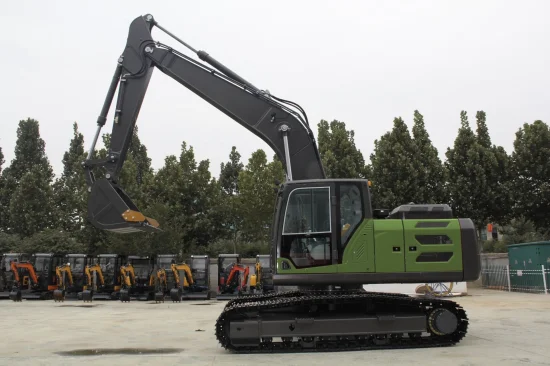

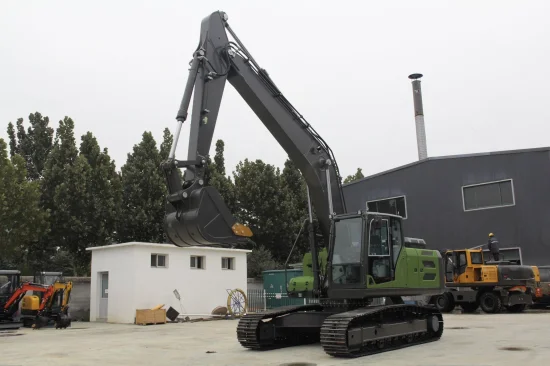

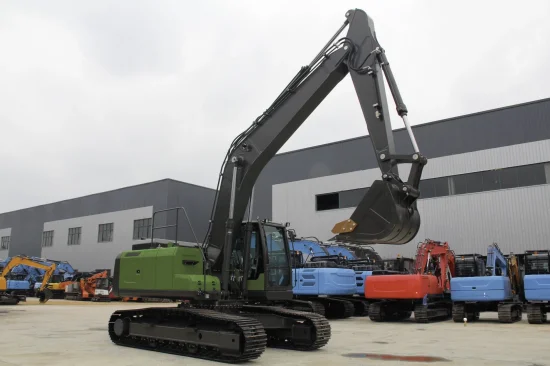

Müller E23.0 – 23-ton Excavator for Maximum Performance and Durability

The Müller E23.0 is a heavy-duty 23-ton excavator designed for intensive construction, earthmoving, and infrastructure work. The model delivers high digging force, a wide working range, and exceptional stability under heavy load.

Powered by the proven Cummins 6BTAA5.9 diesel engine with 181 HP at 2000 rpm, the excavator provides strong power, low fuel consumption, and excellent efficiency during continuous operation. The reinforced chassis, robust hydraulic system, and optimized structural design ensure precise control and long service life.

Technical Specifications – Müller E23.0

Performance

Bucket Capacity: 1.1 m³
Swing Speed: 11–13 rpm
Gradeability: 30°
Max. Bucket Digging Force: 140 kN
Max. Arm Digging Force: 99 kN
System Pressure: 34 MPa

Engine

Model: Cummins 6BTAA5.9
Power: 181 HP at 2000 rpm

Working Range

Max. Digging Height: 9410 mm
Max. Dumping Height: 6730 mm
Max. Digging Depth: 6480 mm
Max. Vertical Digging Depth: 5925 mm
Max. Digging Radius: 9850 mm
Min. Swing Radius: 3555 mm

Dimensions

Overall Dimensions (L × W × H): 9590 × 2980 × 3185 mm
Cabin Height: 3060 mm
Sprocket–Idler Distance: 3200 mm
Undercarriage Base: 3655 mm
Ground Clearance: 470 mm
Tail Swing Radius: 2880 mm

Strong and Efficient Engine

• High-quality engine from a leading brand, providing strong power and excellent efficiency.

• Advanced turbocharging ensures stable performance even at high altitudes.

• New-generation cooling fans and large mufflers reduce overall machine noise.

• Optimized energy-saving management → lower fuel consumption and reduced emissions.

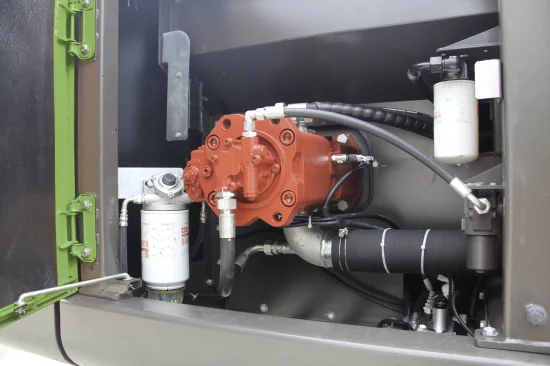

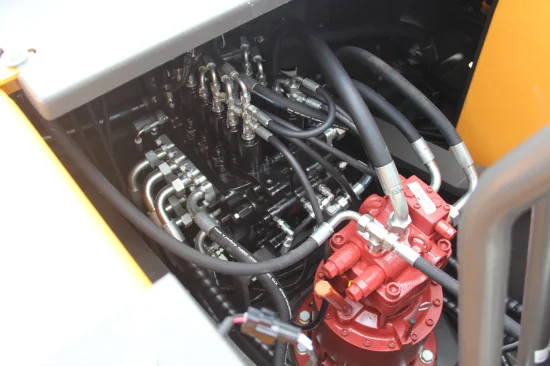

Advanced Hydraulic System

• Double pump confluence system for higher working speed and productivity.

• Full hydraulic pilot control, 360° rotation, and imported main components: pumps, valves, swing motor, travel motor, and hoses.

• Built-in breaker hydraulic line included as standard.

• Cylinder cushioning reduces vibration, lowers noise, and extends component lifespan.

High Durability and Reliability

• Reinforced undercarriage structure with improved frame design → reduced soil buildup and slower wear.

• Main hinge points use forged components for increased strength and long life.

• Boom and arm are fully welded and precision-bored for maximum structural durability.

• Bucket with wear-resistant steel plates plus reinforced teeth and side cutters.

Comfortable and Safe Operating Environment

• Expanded visibility: larger front, side, and rear windows for improved safety.

• Wide skylight for upward visibility and better ventilation.

• Luxury operator cabin with comfortable seat, LCD display, ergonomic joysticks, A/C and heater.

Intelligent Features

• Electronic throttle management for optimal power and fuel economy.

• Automatic idle (auto-idle) reduces fuel use and noise during pauses.

• Large multifunctional LCD monitor showing engine and system parameters.

• GPS system for remote diagnostics, fault alerts, and maintenance reminders.

Easy Maintenance

• Filters and service points positioned for ground-level access.

• Large fuel tank for long working hours.

• Extended maintenance intervals thanks to high-quality components.

• Large toolbox for convenient storage.
