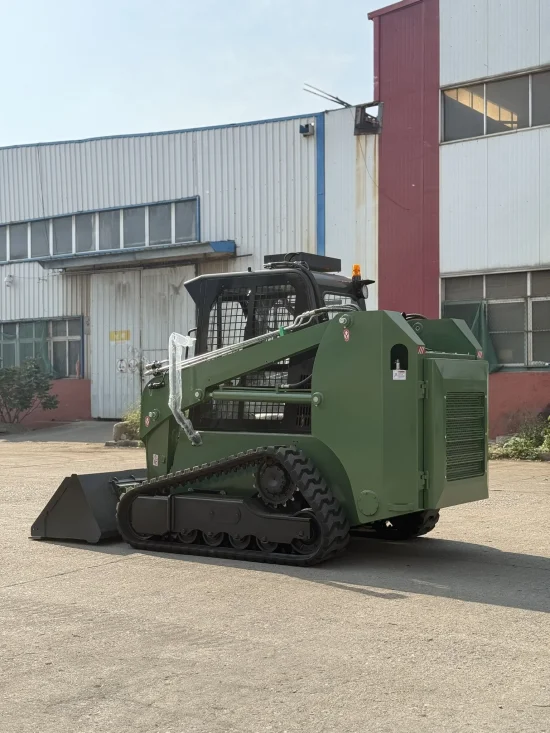

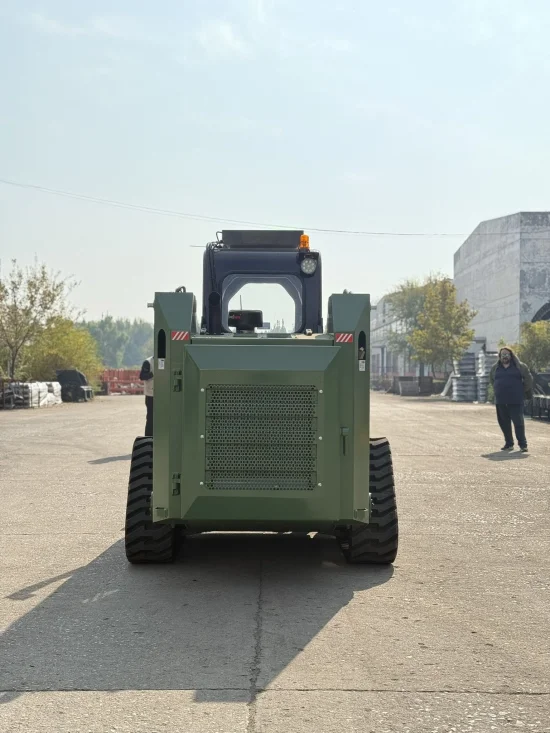

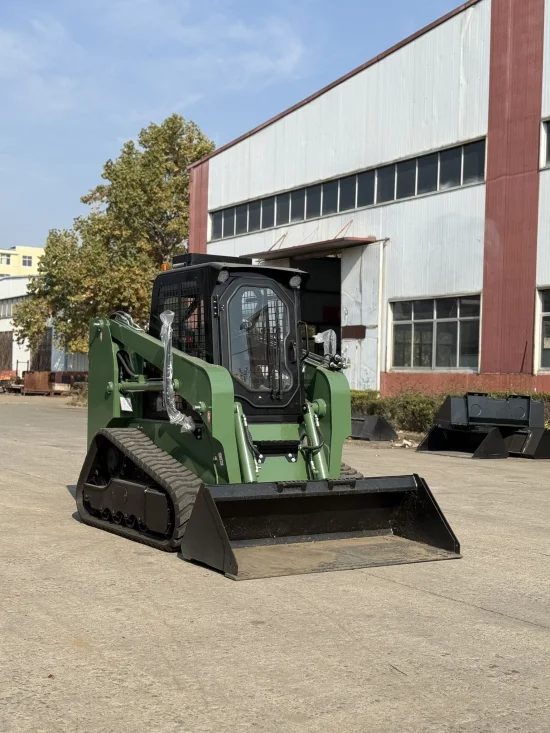

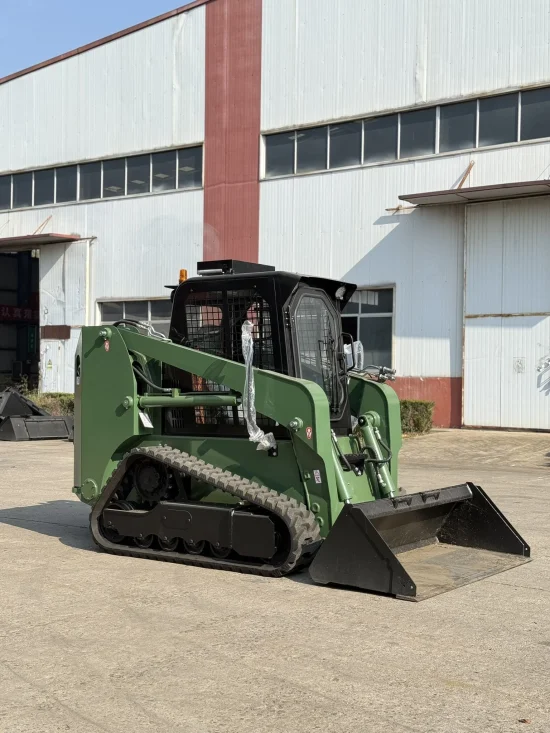

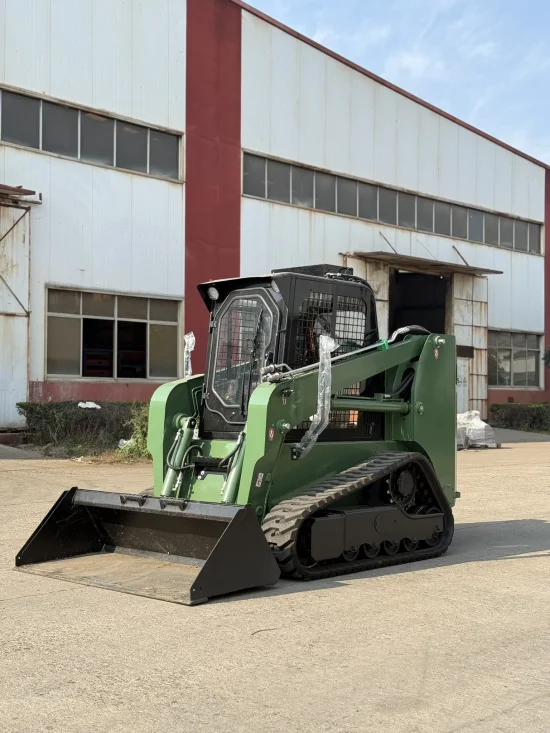

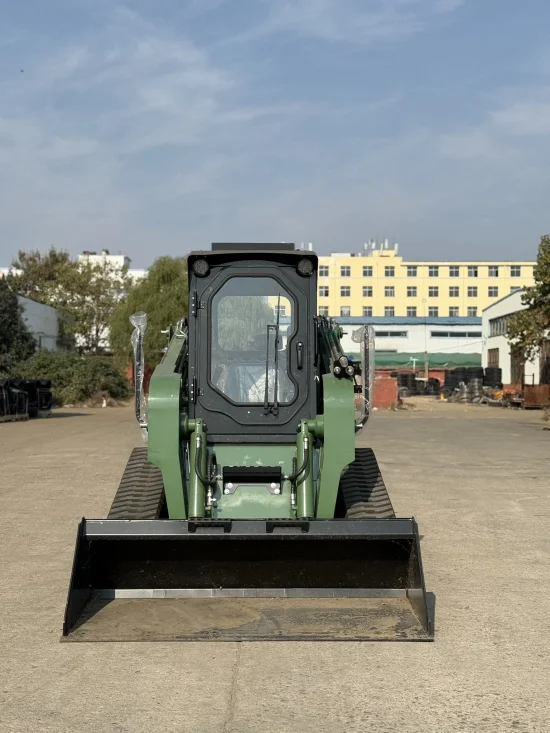

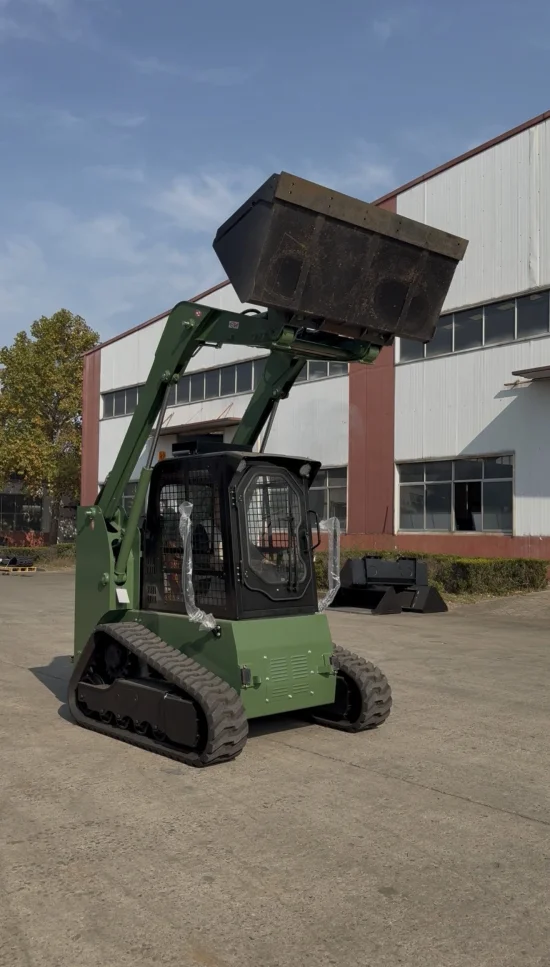

Skid Steer Loader Müller S4.2

Müller S4.2 is a powerful and compact wheel loader designed for professional use in construction, agriculture, and industrial operations.
With a lifting capacity of 1000 kg and a solid structure weighing 4200 kg, the machine combines high efficiency, maneuverability, and durability.
It is suitable for loading and unloading operations as well as for working with various attachments – forks, buckets, grapples, sweepers, and snow removal tools.

Standard Equipment

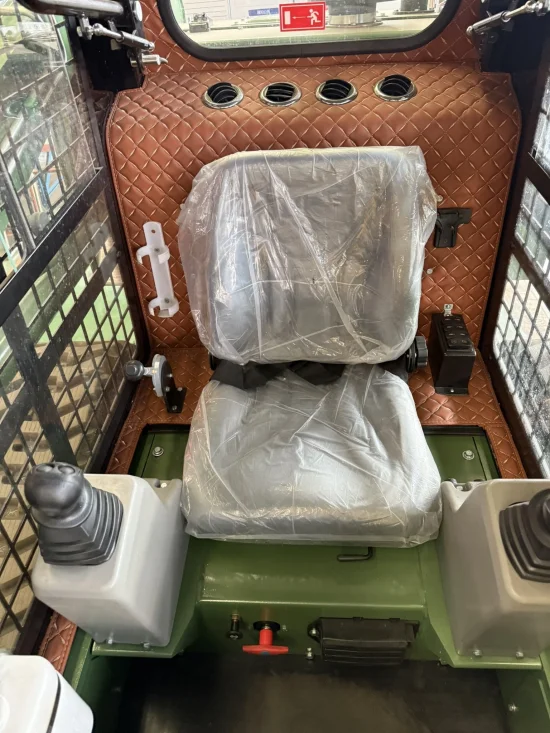

• Fully glazed cabin

• Air conditioning

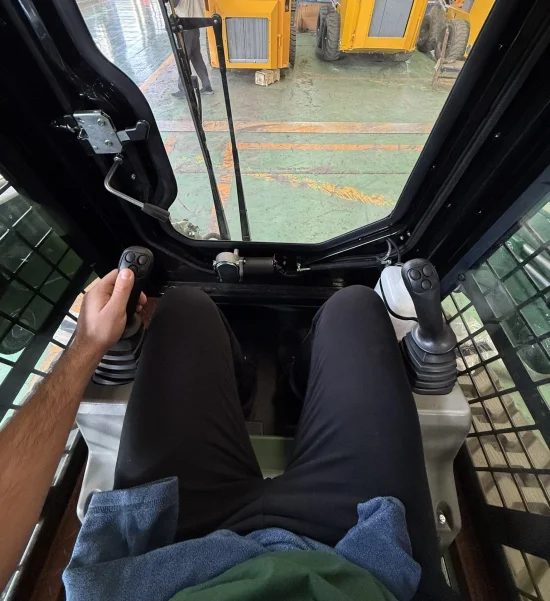

• Joystick control system

• Standard bucket included

Technical Specifications

Model: Müller S4.2

Operating weight: 4200 kg

Rated load: 1000 kg (recommended safe operating capacity)

Tipping load: 2000 kg (maximum load before loss of stability)

Bucket capacity: 0.5 m³

Maximum speed: 12 km/h

Maximum traction force: ≥ 28.2 kN

Maximum breakout force: ≥ 20 kN

Boom lifting time: 7 s

Hydraulic flow: 75 L/min
High-flow hydraulic system: 120 L/min

Engine

Manufacturer: Xinchai
Model: A498ZG/T
Power: 74 hp / 2500 rpm
Displacement: 3.17 L

Dimensions

Working height: 3000 mm
Cabin height: 2150 mm
Length without bucket: 2750 mm
Length with bucket: 3500 mm
Dumping angle at maximum height: 40°
Dumping height: 2230 mm
Dumping reach: 715 mm
Bucket rollback angle on ground: 30°
Bucket rollback angle at max height: 104°
Ground clearance: 200 mm
Turning radius without bucket: 1298 mm
Front turning radius: 2010 mm
Rear turning radius: 1714 mm
Distance from rear track end to tail: 890 mm
Machine width: 1782 mm
Bucket width: 1880 mm

Advantages

• Compact dimensions and excellent visibility during operation

• Strong steel structure and reliable hydraulic system

• Easy access to the engine and service components

• Compatible with various attachments

• High stability and low center of gravity for safe operation
