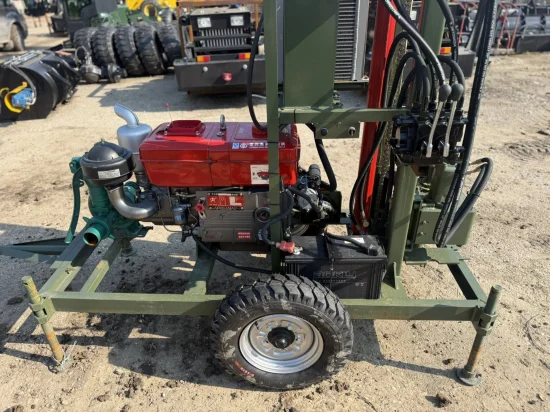

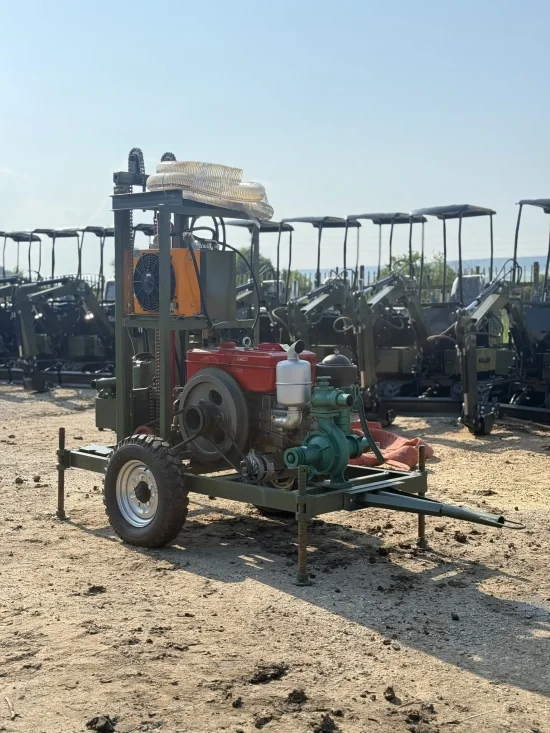

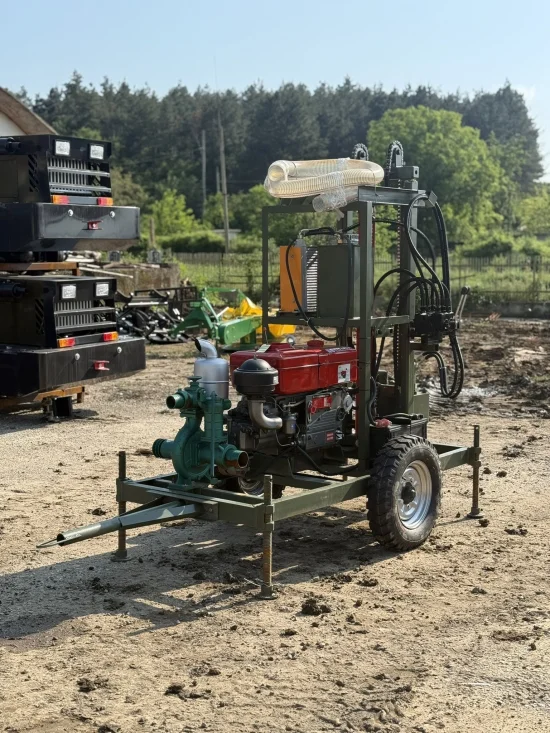

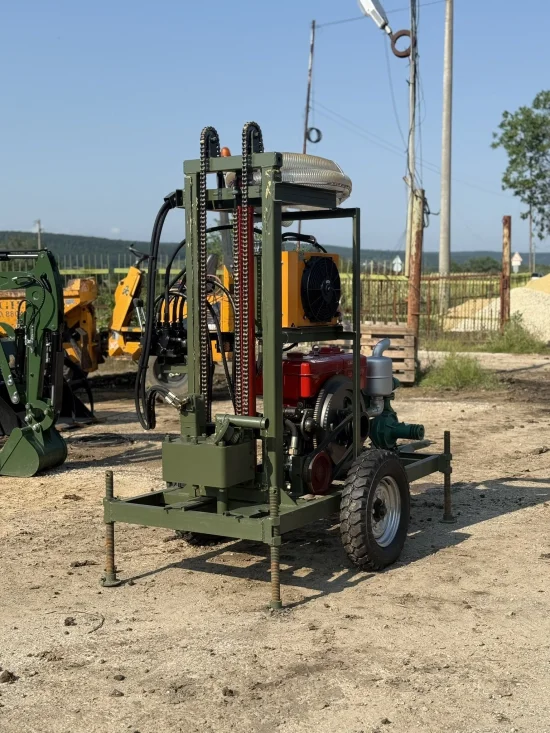

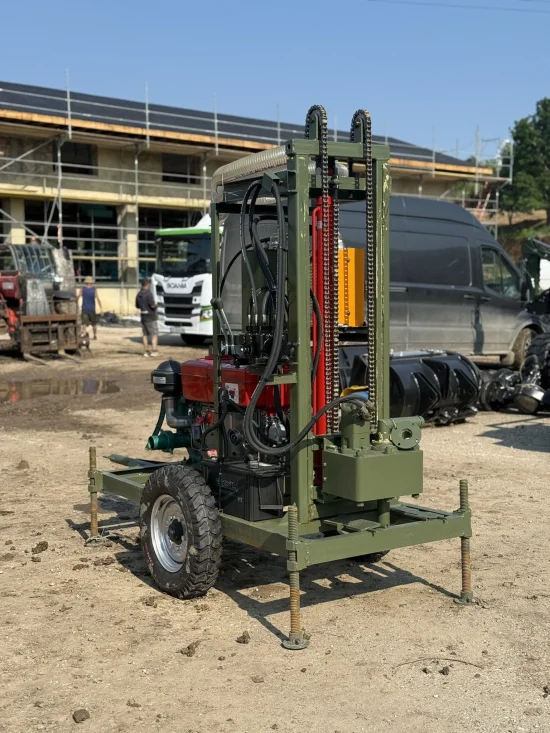

Müller DR150 Drilling Rig

The Müller DR150 is a compact and reliable drilling rig designed for water wells, irrigation systems, geological exploration, and construction projects. Thanks to its robust construction, easy transportability, and drilling depth of up to 150 meters, it is an excellent solution for both professional drilling contractors and agricultural businesses.

With an operating weight of only 550 kg and a wheeled chassis, the Müller DR150 can be easily transported and operated even in remote or hard-to-reach locations.

Key Advantages

• Drilling depth of up to 150 m
• Maximum drilling diameter of up to 250 mm
• Compact and easy-to-transport design
• Ideal for water wells and irrigation systems
• Reliable water-cooled diesel engine
• Low operating costs
• Easy maintenance and servicing

Technical Specifications

Dimensions and Weight

• Length: 1930 mm
• Width: 1000 mm
• Height: 1820 mm
• Operating Weight: 550 kg

Engine

• Water-cooled diesel engine
• Power output: 25 HP
• Optional 35 HP engine available

Drilling Performance

• Maximum drilling depth: up to 150 m
• Maximum drilling diameter: up to 250 mm

Included in the Price

• Wheeled chassis for easy transportation

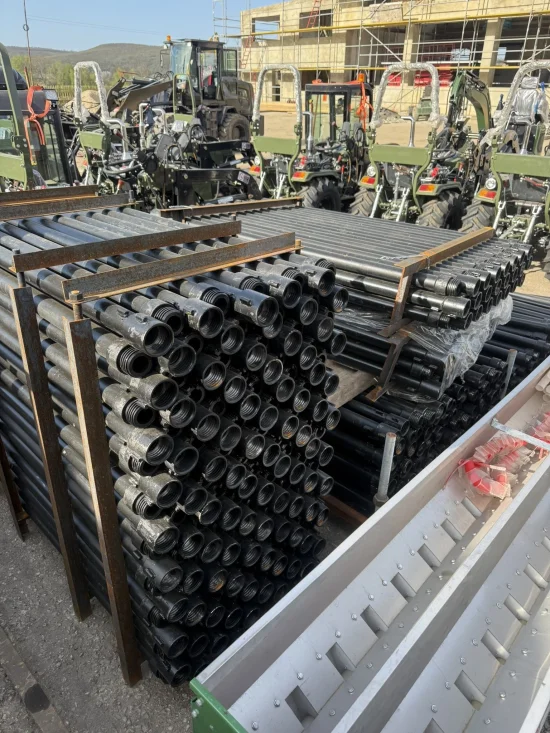

• 40 m drilling rod package (Ø50 mm, 1.5 m length each)

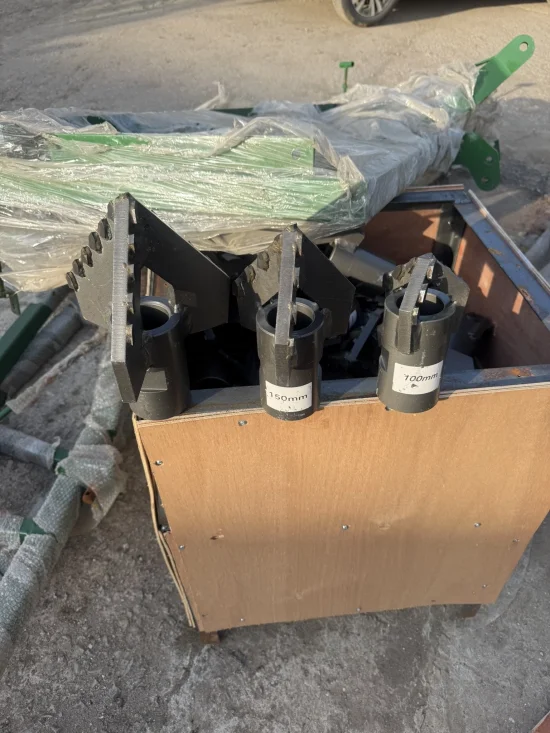

• Soil drilling bit Ø100 mm or Ø150 mm (customer's choice)
• Rock drilling bit Ø100 mm or Ø150 mm (customer's choice)

Optional Equipment

• 35 HP diesel engine upgrade – 1,000 EUR excl. VAT
• Ø200 mm soil drilling bit – 200 EUR excl. VAT

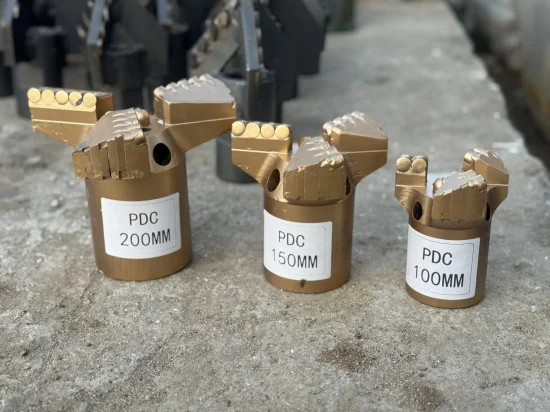

• Ø200 mm PDC rock drilling bit – 550 EUR excl. VAT
• Ø50 mm x 1.5 m drilling rod – 60 EUR excl. VAT

Suitable For

• Water well drilling
• Irrigation systems
• Agricultural applications
• Geological exploration
• Construction projects
• Drilling in soil and rock formations

The Müller DR150 offers an excellent balance between performance, mobility, and affordability, providing a dependable solution for water well drilling and other drilling operations up to 150 meters deep.
