Electric Wheel Loader Müller L1.0E

The Müller L1.0E is a compact electric wheel loader designed for daily tasks on farms, yards, construction sites and warehouses. The machine operates completely silent, emission-free and with minimal maintenance costs, making it an ideal solution for indoor work and populated areas.

Despite its low price, the L1.0E offers a strong and reliable structure, 600 kg lifting capacity and a maximum lifting height of 2.5 m, allowing efficient handling of bulk materials, pallets, feed and various loading operations. Its compact size ensures excellent maneuverability in tight working spaces.

Key Advantages

• 100% electric drive – zero emissions

• Low operating and maintenance costs

• Compact size and easy handling

• Suitable for farms, greenhouses, warehouses and yards

Technical Specifications – Müller L1.0E

Dimensions & Working Parameters

• Dimensions (L×W×H): 3000 × 1250 × 1400 mm

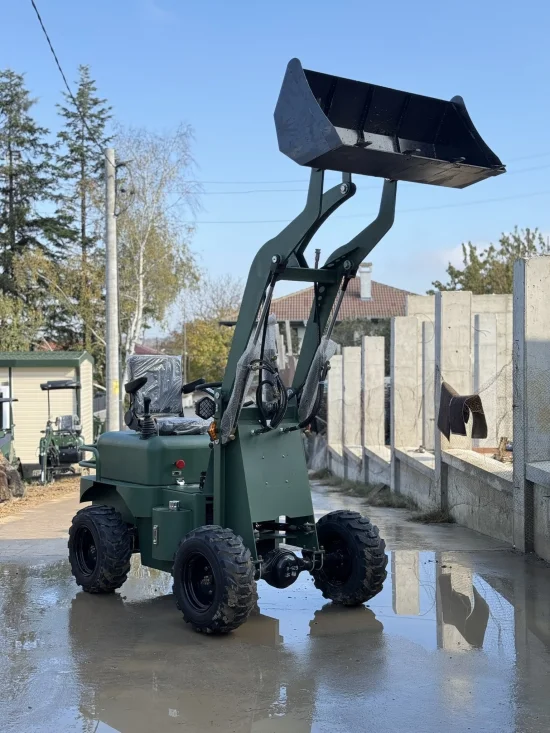

• Max. lifting height: 2500 mm

• Operating weight: 1000 kg

• Rated load capacity: 600 kg

• Bucket width: 1200 mm

• Operating voltage: 60V electric system

Drive System & Chassis

• Main electric motor: 4000 W

• Hydraulic motor: 3000 W

• Drive system: Drive shaft

• Transmission type: Dual electric drive

• Axles: Half-floating axle

• Tyres: 30 × 9.5–13

Battery

• Battery type: Dry-cell batteries

• Configuration: 5 × 80Ah Jin dry battery
