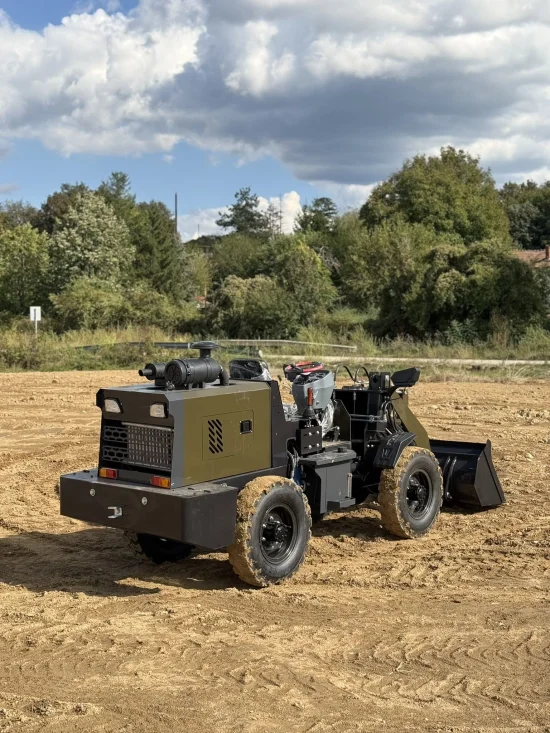

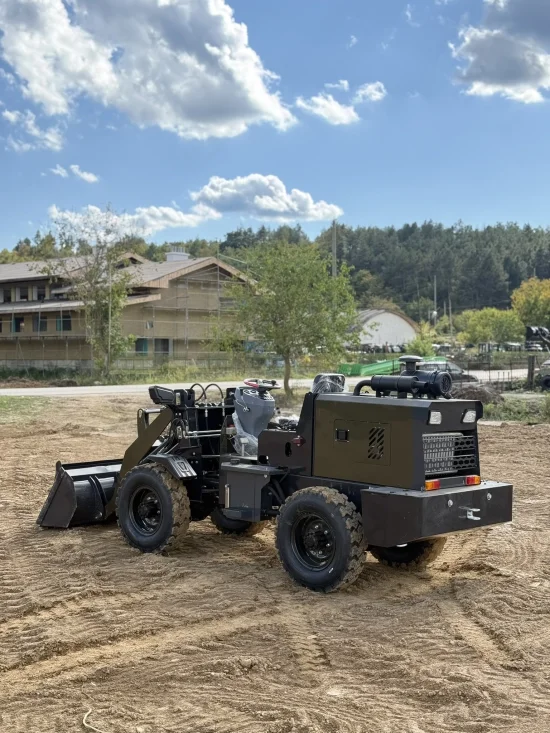

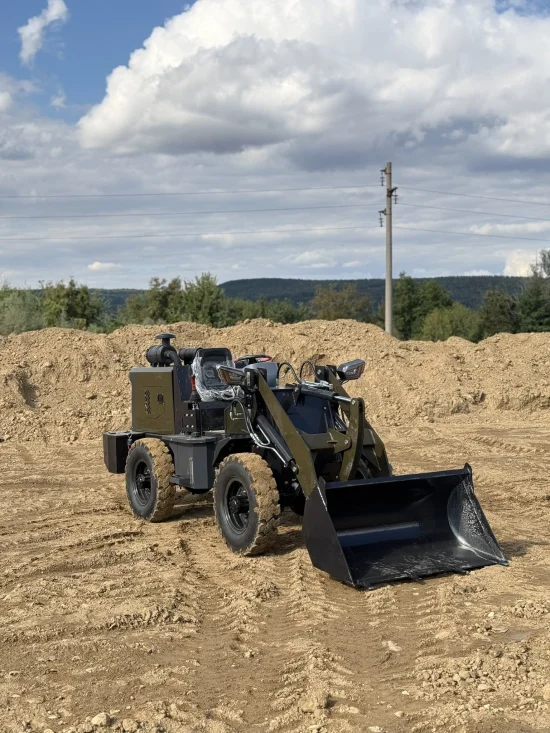

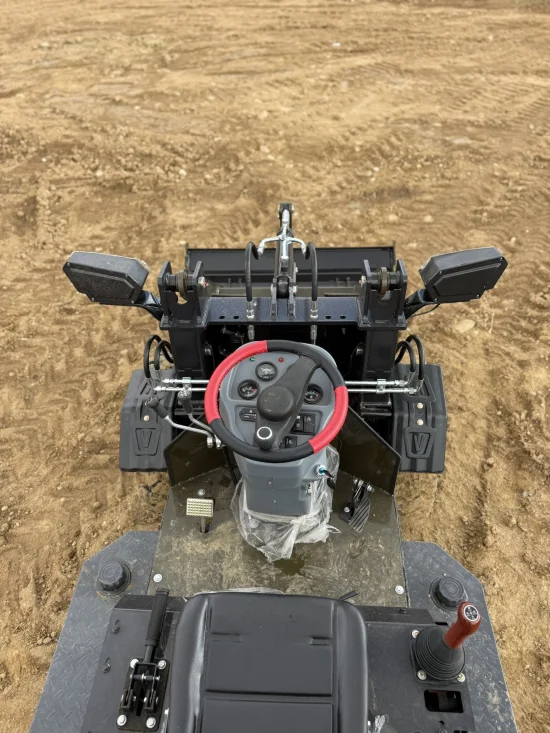

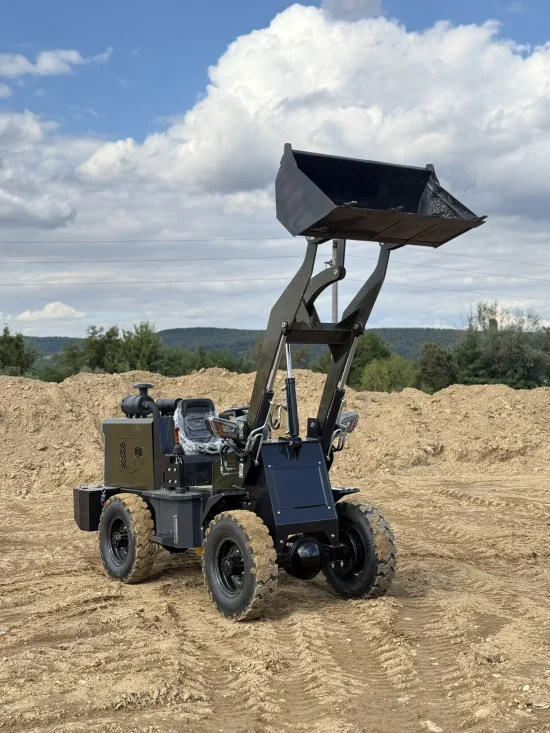

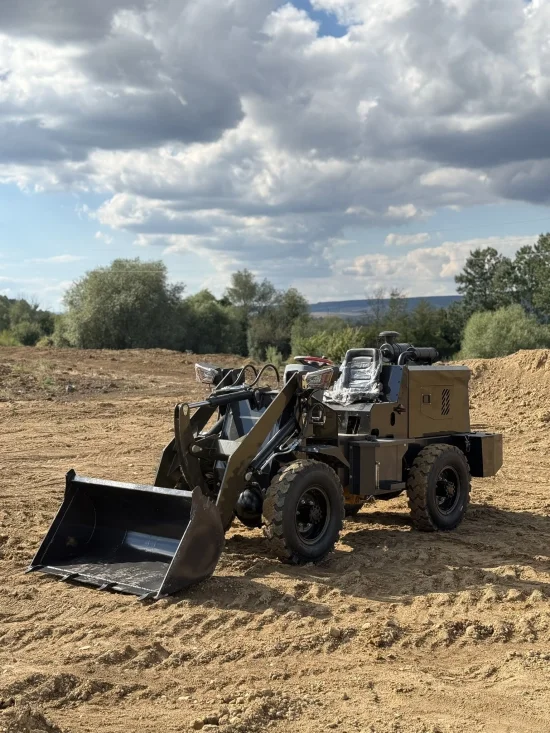

Müller L1.8 – Compact Wheel Loader with an 800 kg Load Capacity

The Müller L1.8 is a compact and highly manoeuvrable wheel loader designed for operation in confined spaces, farms, livestock facilities, warehouses and construction sites.

With a width of only 1.35 m and a height of 1.80 m, the machine can easily pass through narrow entrances. It is particularly suitable for cleaning barns, handling bales, moving bulk materials, construction waste and other loads.

The four-cylinder, 56 hp engine, manufactured under Perkins licence, provides the power required for professional daily operation. The hydrodynamic transmission with torque converter ensures smooth acceleration, easy directional changes through the forward/reverse shuttle and a choice between high and low ranges.

The maximum load capacity is 800 kg, while the lifting height reaches 2.80 m. A standard bucket with teeth is included. For greater versatility, the machine can also be equipped with pallet forks or bale spikes.

Standard Equipment

• Standard loading bucket with teeth

Optional Equipment

• Frame with pallet forks – €750 excluding VAT

• Frame with bale spikes – €750 excluding VAT

Technical Specifications

• Model: Müller L1.8

• Type: Compact wheel loader

• Operating weight: 1,800 kg

• Load capacity: 800 kg

• Engine: Four-cylinder, water-cooled

• Power: 56 hp

• Transmission: Hydrodynamic transmission with torque converter

• Directional control: Forward/reverse shuttle

• Speed ranges: High and low

• Tyre size: 8.25–16

• Width: 1.35 m

• Height: 1.80 m

• Maximum lifting height: 2.80 m

• Length with standard bucket: 4.50 m

• Length without bucket: 4.00 m

• Wheelbase: 1.90 m

Suitable For

• Cleaning barns and livestock facilities

• Loading and handling bales

• Handling palletised goods

• Loading sand, soil, gravel and other bulk materials

• Maintenance of warehouses and industrial facilities

• Construction, agricultural and municipal work
