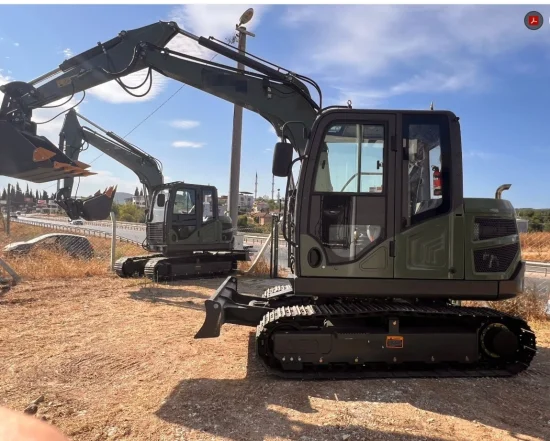

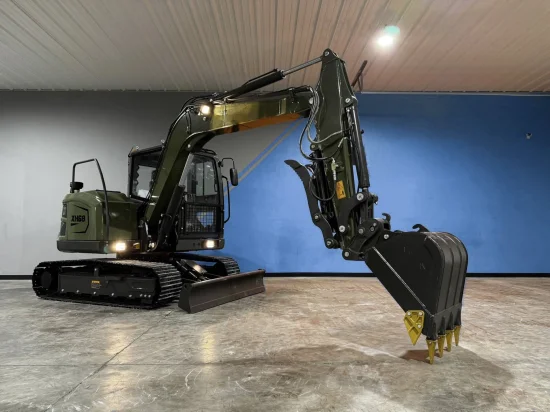

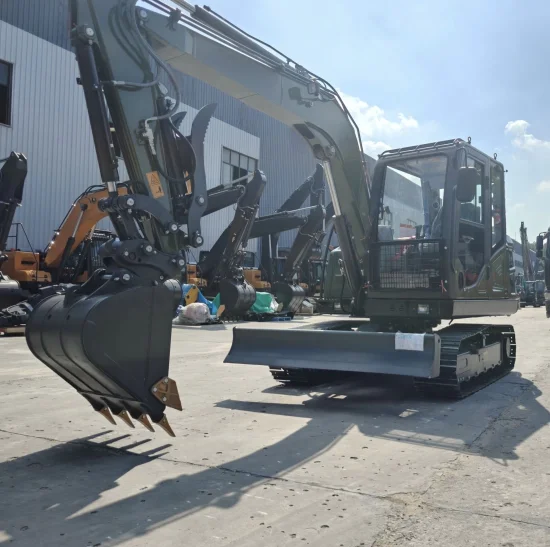

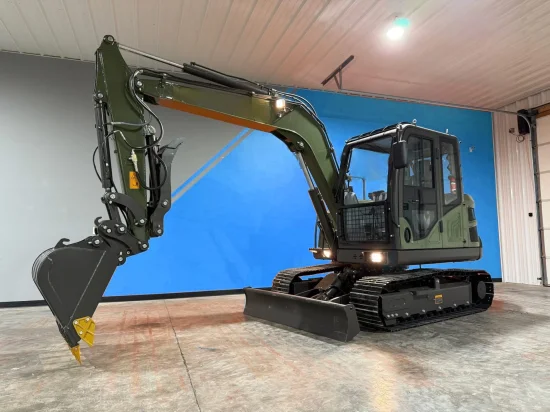

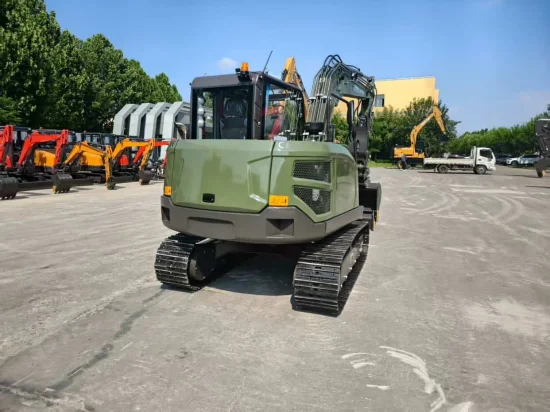

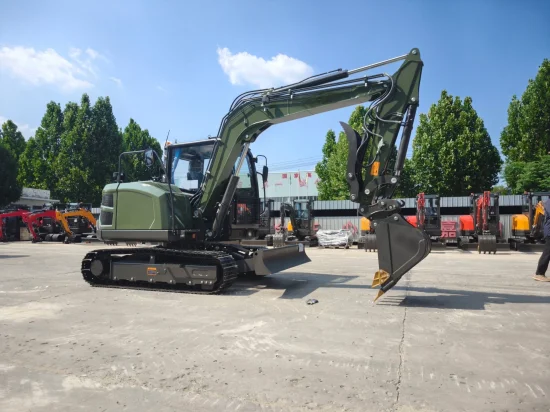

Müller E6.5 – A 6.5-ton Excavator Built for Heavy-Duty Work

The Müller E6.5 is a professional 6.5-ton excavator designed for intensive construction, earthmoving and infrastructure tasks. The machine combines 49 hp, a reinforced structure, and a highly efficient hydraulic system, making it an ideal choice for companies that need a reliable and economical excavator in the mid-size class.

Powered by the proven Yanmar 4TNV94 diesel engine, the E6.5 delivers low fuel consumption, smooth operation, and consistent performance under load.

Standard Equipment

• 3 buckets

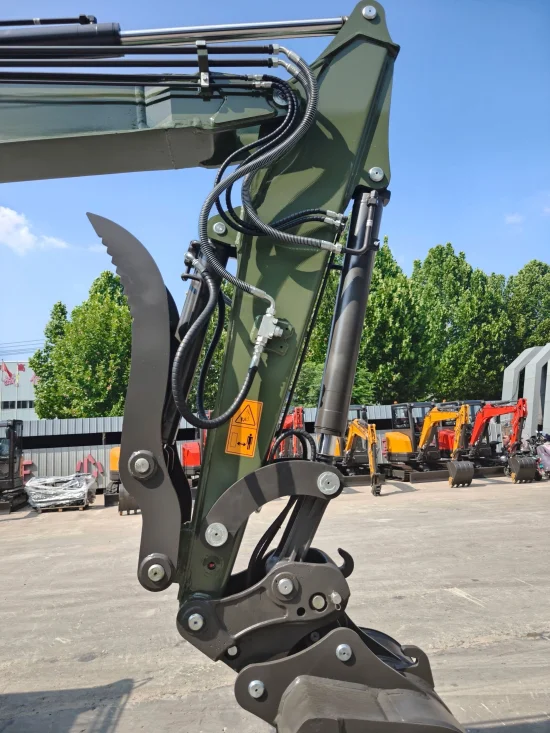

• Hydraulic grapple for material handling

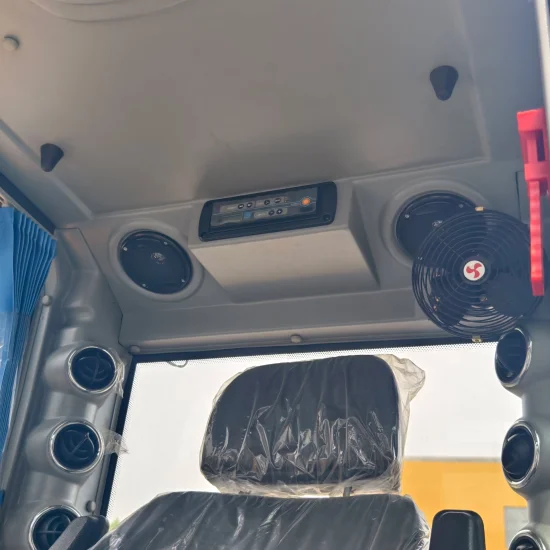

• Air conditioning

• Track options:
  – Rubber tracks
  – Steel tracks

Optional Equipment

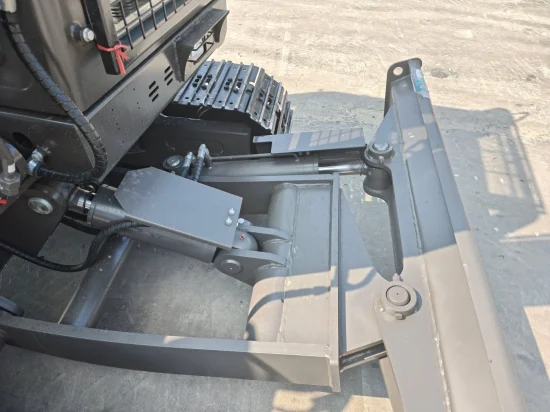

3-way Dozer Blade – featuring three functions:

• Up/Down lifting (standard vertical movement)

• Left/Right tilting for ground leveling

• Angled pushing (left or right) for moving material sideways – same working principle as snow plow blades

Main Technical Specifications

Engine

• Power: 49 hp

• Model: Yanmar 4TNV94

• Revolutions: 2200 rpm

Performance

• Bucket capacity: 0.21 m³

• Bucket digging force: 48 kN

• Arm digging force: 35 kN

• Swing speed: 0–11 rpm

• Gradeability: 35°

• Hydraulic system pressure: 28 MPa

Dimensions

• Overall size (L×W×H): 5802 × 1960 × 2420 mm

• Wheelbase: 2020 mm

• Ground clearance: 380 mm

• Track width: 1560 mm

• Tail swing radius: 1520 mm

Working Range

• Max. digging height: 5928 mm

• Max. dumping height: 4228 mm

• Max. digging depth: 4159 mm

• Max. vertical digging depth: 3458 mm

• Max. digging radius: 6162 mm

• Min. swing radius: 2389 mm

Dozer Blade

• Lifting height: 380 mm

• Cutting depth: 455 mm
